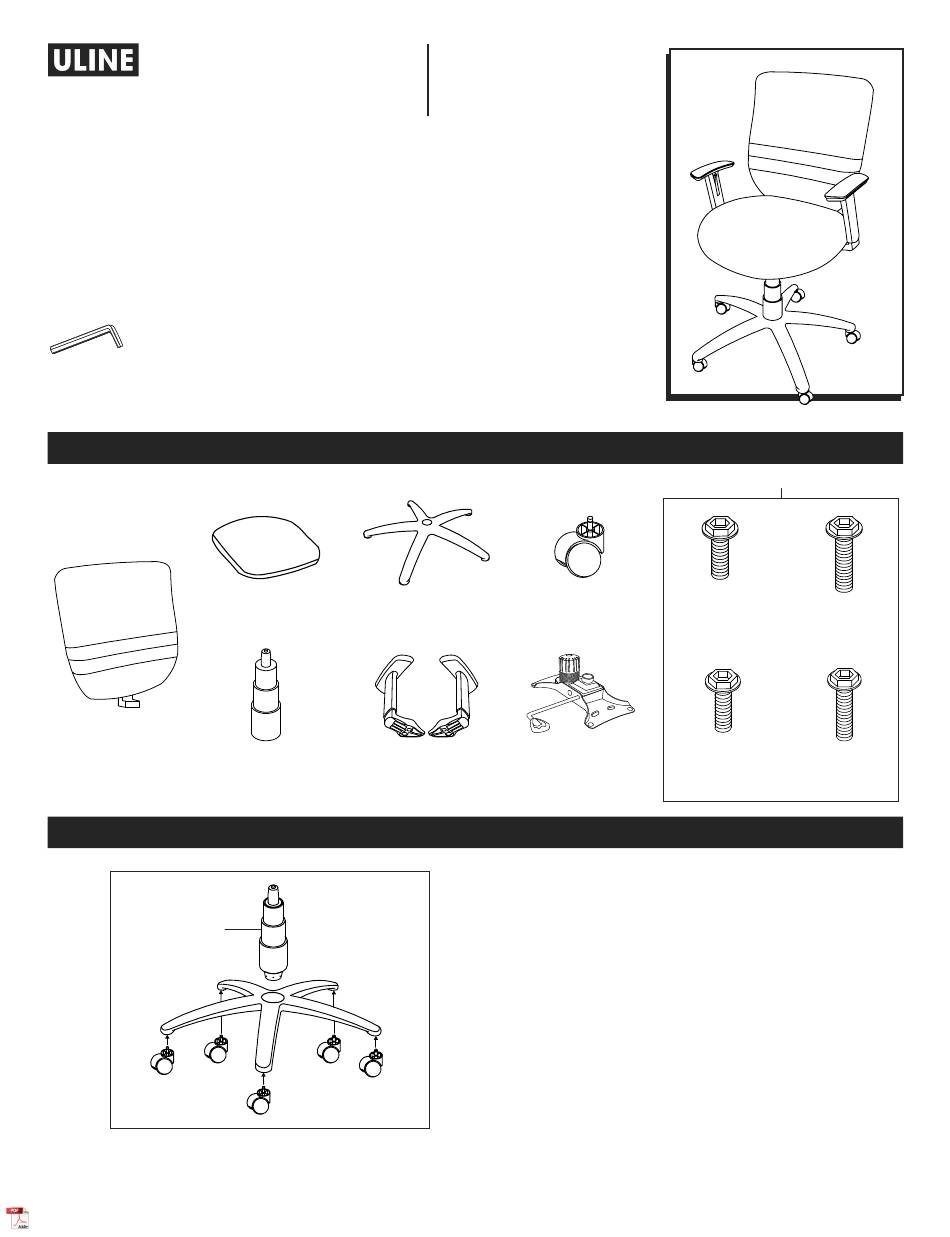

Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-4119 1-800-295-5510 uline.com FOAM PADDED MESH CHAIR TOOL NEEDED Allen Wrench (included) PARTS Hardware Kit Screw x 2 Screw x 4 Seat Cushion x 1 5-Star Base x 1 Caster x 5 1/4 x 1"...
Page 2
ASSEMBLY CONTINUED 2. Align armrest with holes on bottom of seat cushion. Figure 2 Use one 1/4 x 1" screw (8) and two 1/4 x 1⁄" screws (9) to attach. Repeat on opposite side. (See Figure 2) NOTE: Use Allen wrench to tighten all screws. Front of Seat 3.
ASSEMBLY CONTINUED 5. Slowly lower chair assembly onto the gas lift. Press Figure 5 down on seat cushion to secure in place. (See Figure 5) CHAIR ADJUSTMENTS 1. Seat Height Adjustment – To raise seat height, lift lever up with little to no weight on the seat. To lower seat height, lift lever up while sitting.
H-4119 800-295-5510 uline.mx SILLA DE MALLA ACOJINADA DE ESPUMA HERRAMIENTA NECESARIA Llave Allen (incluida) PARTES Kit de Tornillería 2 Tornillos 4 Tornillos 1 Asiento 1 Base Estrella 5 Ruedas 1/4 x 1" 1/4 x 1½" 1 Respaldo 4 Tornillos 4 Tornillos 1 Pistón de Gas...
Page 5
CONTINUACIÓN DEL ENSAMBLE 2. Alinee el descansabrazos con los orificios en la parte Diagrama 2 inferior del asiento. Use un tornillo de 1/4 x 1" (8) y dos tornillos de 1/4 x 1½" (9) para fijarlo. Repita la operación con el lado opuesto. (Vea Diagrama 2) Parte Frontal NOTA: Utilice la llave Allen para apretar todos del Asiento...
Page 6
CONTINUACIÓN DEL ENSAMBLE 5. Baje lentamente el ensamble de la silla sobre el Diagrama 5 pistón de gas. Presione el asiento acojinado para asegurarlo en su lugar. (Vea Diagrama 5) AJUSTES DE LA SILLA 1. Ajuste de la Altura del Asiento – Para subir la altura del asiento, levante la palanca sin o con poco peso en el asiento.
Page 7
H 4119 1-800-295-5510 uline.ca CHAISE EN MAILLE MATELASSÉE EN MOUSSE OUTIL REQUIS Clé Allen (inclus) PIÈCES Matériel d'installation Vis de 1/4 x 1 po Vis de 1/4 x 1 ½ Siège x 1 Base à 5 branches x 1 Roulette x 5 po x 4 Dossier x 1 Vis de 5/16 x 3/4...
Page 8
ASSEMBLAGE SUITE 2. Alignez l'accoudoir sur les trous situés sous le siège. Figure 2 Fixez-le avec une vis de 1/4 x 1 po (8) et deux vis de 1/4 x 1 ⁄ po (9). Répétez la procédure de l'autre côté. (Voir Figure 2) Avant du siège REMARQUE : Utilisez la clé...
Page 9
ASSEMBLAGE SUITE 5. Abaissez lentement la chaise sur le vérin Figure 5 pneumatique. Appuyez sur le siège pour le fixer. (Voir Figure 5) RÉGLAGES DE LA CHAISE 1. Réglage de la hauteur du siège – Pour élever le siège, soulevez le levier avec peu ou sans poids sur le siège.
