H-4120

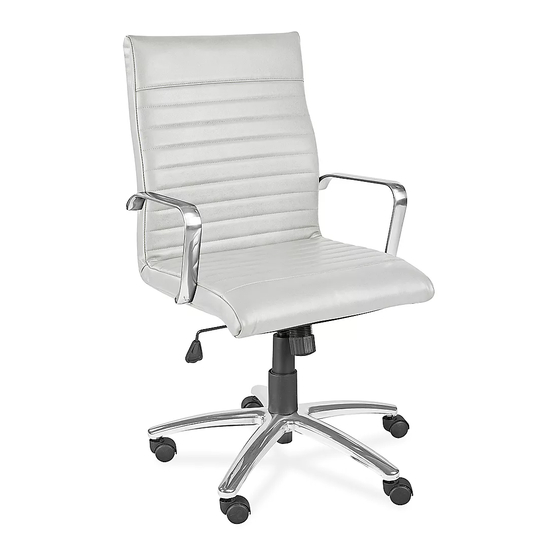

LEATHER FASHION CHAIR
TOOL NEEDED
Allen Wrench
(included)
Back and Seat Cushion x 1
Figure 1
Dust Cover
Gas Lift
PAGE 1 OF 6
1-800-295-5510
uline.com
PARTS
5-Star Base x 1
Dust Cover x 1
ASSEMBLY
1.
Insert casters into legs of five-star base. Turn base
upright. Insert gas lift into center of base and place
dust cover over gas lift. (See Figure 1)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Caster x 5
Armrest x 2
Gas Lift x 1
Screw x 4
5/16 x 1¾"
0721 IH-4120
Advertisement
Table of Contents
Related Manuals for U-Line H-4120
Summary of Contents for U-Line H-4120
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-4120 1-800-295-5510 uline.com LEATHER FASHION CHAIR TOOL NEEDED Allen Wrench (included) PARTS 5-Star Base x 1 Caster x 5 Gas Lift x 1 Back and Seat Cushion x 1...
- Page 2 ASSEMBLY CONTINUED 2. Align armrest with holes on back and seat cushion Figure 2 Use two 5/16 x 1⁄" screws to attach. Repeat on opposite side. (See Figure 2) NOTE: Use Allen wrench to tighten all screws. 3. Slowly lower chair assembly onto the gas lift. Figure 3 Press down on seat cushion to secure in place.
- Page 3 H-4120 800-295-5510 uline.mx SILLA MODERNA DE PIEL HERRAMIENTA NECESARIA Llave Allen (incluida) PARTES 1 Base Estrella 5 Ruedas 1 Pistón de Gas 1 Asiento y Respaldo 2 Descansabrazos 1 Cubierta para 4 Tornillos Polvo 5/16 x 1¾" ENSAMBLE Inserte las ruedas en las patas de la base estrella.
- Page 4 CONTINUACIÓN DEL ENSAMBLE 2. Alinee el descansabrazos con los orificios en el Diagrama 2 respaldo y el asiento. Use dos tornillos de 5/16 x 1¾" para fijarlo. Repita la operación con el lado opuesto. (Vea Diagrama 2) NOTA: Utilice la llave Allen para apretar todos los tornillos.
- Page 5 H-4120 1-800-295-5510 uline.ca CHAISE TENDANCE EN CUIR OUTIL REQUIS Clé Allen (inclus) PIÈCES Vérin pneumatique x 1 Base à 5 branches x 1 Roulette x 5 Dossier et siège x 1 Accoudoir x 2 Vis x 4 Cache-poussière x 1 5/16 x 1 ¾...
- Page 6 ASSEMBLAGE SUITE 2. Alignez l'accoudoir contre les trous situés sur le Figure 2 dossier et sur le siège. Fixez-le à l'aide de deux vis de 5/16 x 1 ¾ po. Répétez la procédure sur le côté opposé. (Voir Figure 2) REMARQUE : Utilisez la clé...
