π
H-3732, H-4823

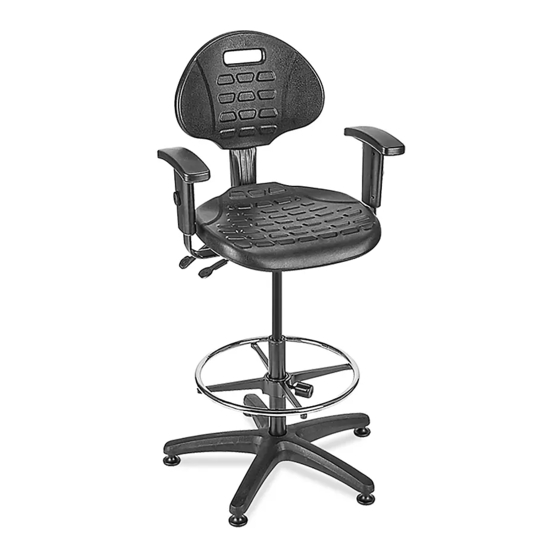

DELUXE WORK STOOL
Backrest with Post x 1
Seat x 1

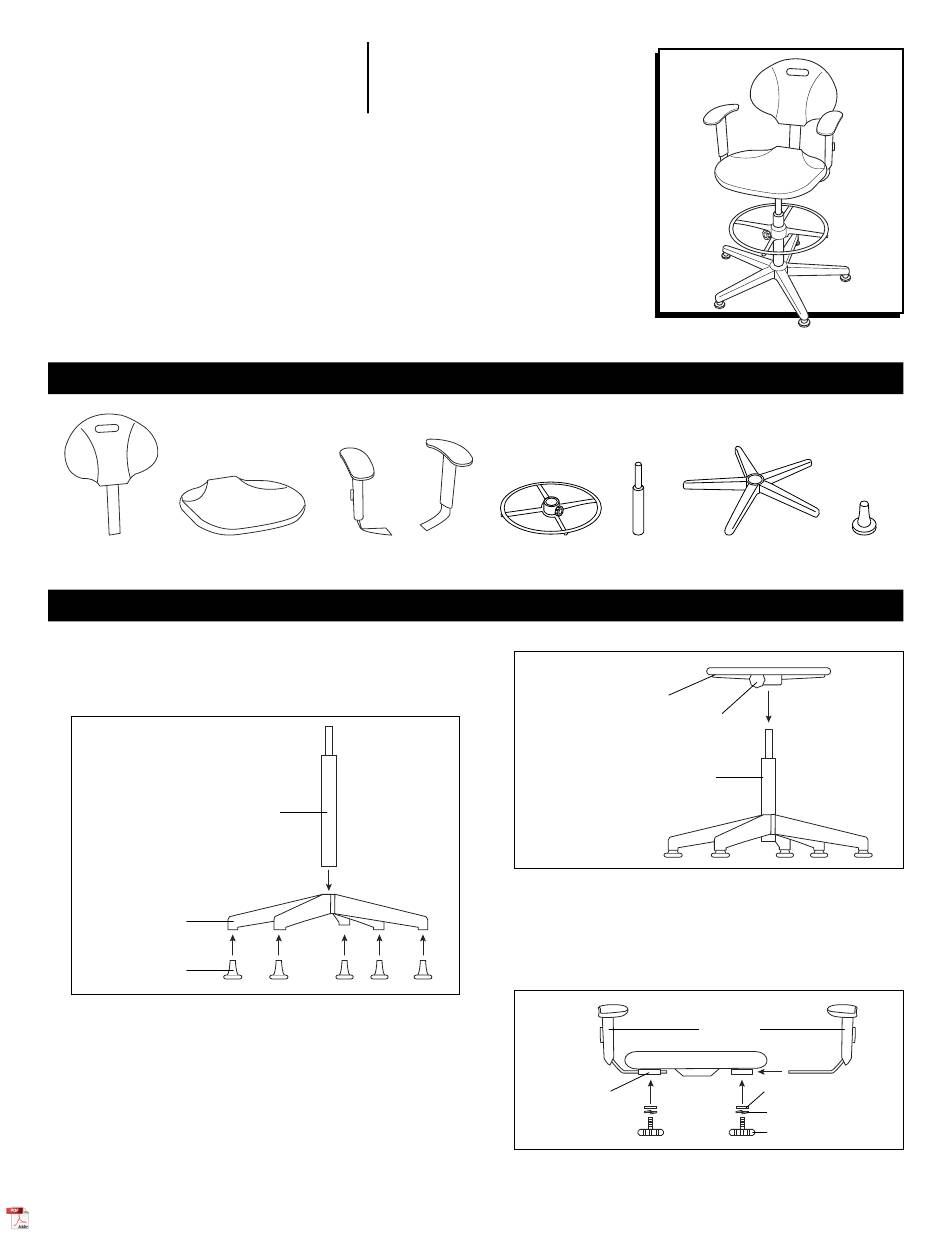

1.
Insert glides into legs of five-star base. Turn base
upright. Insert gas lift into center of base.
(See Figure 1)
Figure 1
Gas Lift
Base
Glide
2. Slide footring onto the gas lift and tighten knob to
secure. (See Figure 2)
PAGE 1 OF 6
1-800-295-5510
uline.com
PARTS
Armrest x 2
Footring x 1
ASSEMBLY
Figure 2
3. Remove knob and washers from armrest mounting
bracket. Insert armrest into bracket. Place lock
washer then plain washer on knob and insert knob
into armrest mounting bracket. Repeat on opposite
side. (See Figure 3)
Figure 3
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Gas Lift x 1
5-Star Base x 1
Footring
Knob
Gas Lift
Armrest
Armrest
Mounting
Bracket
Glide x 5
Washer
Lock Washer
Knob
0621 IH-3732
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-3732
Summary of Contents for U-Line H-3732
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. π H-3732, H-4823 1-800-295-5510 uline.com DELUXE WORK STOOL PARTS Backrest with Post x 1 Seat x 1 Armrest x 2 Footring x 1 Gas Lift x 1 5-Star Base x 1...
-
Page 2: Stool Adjustments
ASSEMBLY CONTINUED 4. Loosen knob on bottom of seat. Insert backrest post 5. Slowly lower stool assembly onto the gas lift. Press into corresponding slot in mechanism and tighten down on seat to secure. (See Figure 5) knob to secure. (See Figure 4) Figure 5 Figure 4 Stool... - Page 3 π H-3732, H-4823 800-295-5510 SILLA DE ALTA CALIDAD uline.mx PARA TRABAJO PARTES 1 Respaldo con 1 Asiento 2 Descansabrazos 1 Reposapiés 1 Pistón 1 Base Estrella 5 Niveladores Poste de Gas ENSAMBLE Inserte los niveladores en las patas de la base Diagrama 2 estrella.
- Page 4 CONTINUACIÓN DEL ENSAMBLE 4. Afloje la perilla en la parte inferior del asiento. 5. Baje lentamente el ensamble de la silla sobre el Inserte el poste del respaldo en la ranura pistón de gas. Presione el asiento para asegurarlo. correspondiente del mecanismo y apriete la perilla (Vea Diagrama 5) para asegurarlo.
- Page 5 π H-3732, H-4823 1-800-295-5510 TABOURET DE TRAVAIL uline.ca DE LUXE PIÈCES Dossier avec Siège x 1 Accoudoir x 2 Repose-pied x 1 Vérin Base à 5 Patin x 5 montant x 1 pneumatique branches x 1 ASSEMBLAGE Insérez les patins dans les pieds de la base à cinq Figure 2 branches.
- Page 6 ASSEMBLAGE (SUITE) 4. Desserrez la molette sous le siège. Insérez le 5. Abaissez lentement le tabouret sur le vérin montant du dossier dans la fente correspondante pneumatique. Appuyez sur le siège pour le fixer. du mécanisme et serrez la molette pour le fixer. (Voir Figure 5) (Voir Figure 4) Figure 5...
