January, 2021
MDL4724

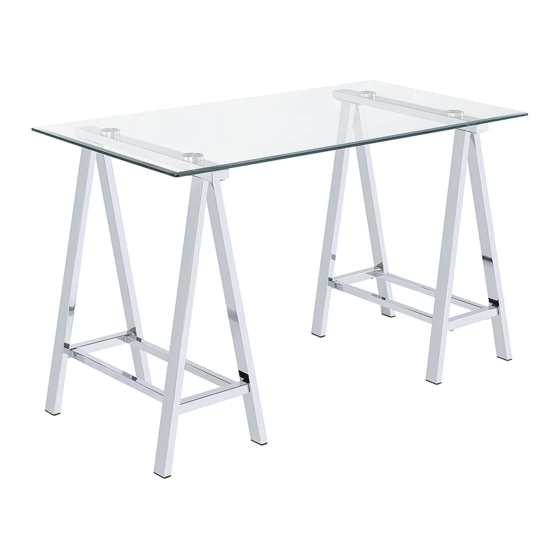

MIDDLETON WRITING DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings MIDDLETON MDL4724
Summary of Contents for OSP Home Furnishings MIDDLETON MDL4724
- Page 1 January, 2021 MDL4724 MIDDLETON WRITING DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
- Page 2 Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®...
- Page 3 PARTS LIST (A) Glass Top (1 PC) (B) Top Support (2 PCS) (C) Leg Support (8 PCS) (D) Bottom Frame (2 PCS) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Short Bolt ¼’’ x 12mm 16 PCS Short Bolt 16 PCS ¼’’ x 12mm Long Bolt 4 PCS ¼’’...
- Page 4 STEP 1 FULLY TIGHTEN BOLTS (1). STEP 2 FULLY TIGHTEN BOLTS (2). NOTE: Repeat Steps 1 & 2 for remaining frame.
- Page 5 STEP 3 FULLY TIGHTEN BOLTS (3).
