September, 2019

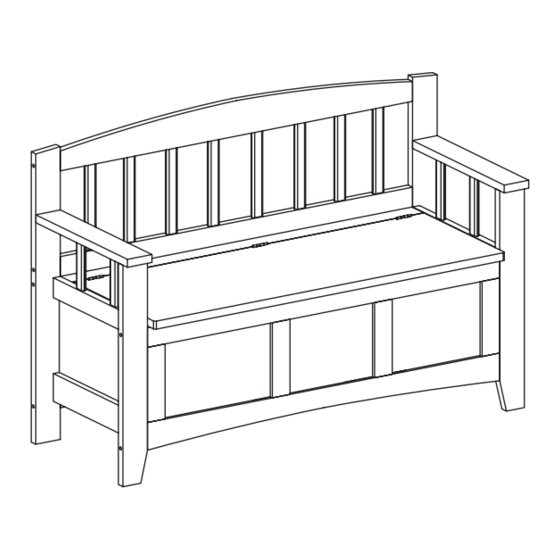

MET41 / MET42
ENTRY WAY BENCH
MET41
MET42
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings MET41
Summary of Contents for OSP Home Furnishings MET41
- Page 1 September, 2019 MET41 / MET42 ENTRY WAY BENCH MET41 MET42 Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Seat (1 PC) (B) Left Side Frame (1 PC) (C) Right Side Frame (1 PC) (D) Backrest (1 PC) (E) Front Panel (1 PC) (F) Rear Panel (1 PC) (G) Bottom Panel (1 PC) (H) Rear Support (1 PC)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Screw 4 PCS Screw 4 PCS Bolt 3 PCS Bolt 1 PC Bolt 12 PCS Wooden Dowel 2 PCS Wooden Dowel 16 PCS Wood Plug 12 PCS Safety Hinge 1 PC Allen Wrench 1 PC Phillips Screwdriver also needed for assembly (not provided).
- Page 5 STEP 1 FULLY TIGHTEN ALL BOLTS (3) USING ALLEN WRENCH (10). STEP 2 FULLY TIGHTEN BOLT (4) USING ALLEN WRENCH (10). FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREW DRIVER (NOT PROVIDED).
- Page 6 STEP 3 FULLY TIGHTEN ALL BOLTS (5) USING ALLEN WRENCH (10). STEP 4 FULLY TIGHTEN ALL BOLTS (5) USING ALLEN WRENCH (10).
- Page 7 STEP 5 FULLY TIGHTEN ALL BOLTS (5) USING ALLEN WRENCH (10). STEP 6 FULLY TIGHTEN ALL SCREWS (2) USING PHILLIPS SCREW DRIVER (NOT PROVIDED).
- Page 8 STEP 7...
