User Manual
RTKA223011DE0010BU
Evaluation Board

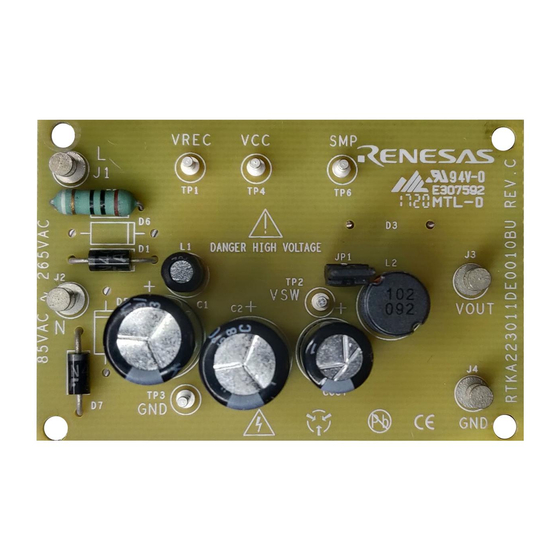

The RAA223011 evaluation board (RTKA223011DE0010BU) is a high voltage buck converter that is designed to
demonstrate a low-cost high performance non-isolated AC/DC conversion from an universal input of 85V
to
AC
265V
, to a 12V output with the output current up to 300mA.
AC
The RTKA223011DE0010BU has built-in overcurrent, short-circuit, input brownout, and over-temperature
protection. The board is designed on a single side PCB with a single diode half-wave input rectification. It is
pre-compliant with conducted and radiated EMI requirements by EN55022/CISPR 22.
The RTKA223011DE0010BU comes with a RAA223011 in 8 Ld SOIC package.
Key Features
▪ Universal input
▪ Single-side PCB with low cost external components
▪ EMI compliance for EN55022/CISPR22
▪ Standby power less than 10mW
▪ No audible noise
Specifications
This board is optimized for the following operating conditions:
▪ Input voltage: 85V
~ 265V
AC
AC
▪ Output voltage: 12V
DC
▪ Output current: 300mA max (at 230V
or higher)
AC
▪ Output power: 3.6W
▪ Efficiency: >73% at 100% load; 80% at 50% load
▪ No-load power: 7mW at 120V
; 9.6mW at 230V
AC
AC
▪ Load regulation: -2.4%, load range 10% to 100%
▪ Operating temperature: -45°C~65°C
▪ Board dimension: 40mm x 60mm
Ordering Information
Part Number
Description
RTKA223011DE0010BU
RAA223011 evaluation Board for 8 Ld SOIC option
Related Literature
For a full list of related documents, visit our website:
▪
RAA223011
device page
X0116829 Rev.1.0
Page 1
Jan.27.21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas RTKA223011DE0010BU
Summary of Contents for Renesas RTKA223011DE0010BU
- Page 1 User Manual RTKA223011DE0010BU Evaluation Board The RAA223011 evaluation board (RTKA223011DE0010BU) is a high voltage buck converter that is designed to demonstrate a low-cost high performance non-isolated AC/DC conversion from an universal input of 85V 265V , to a 12V output with the output current up to 300mA.
-
Page 2: Circuit Description
2. While the AC power supply is off, connect the output cables of the AC power supply to the L and N terminals of the RTKA223011DE0010BU. An optional power meter can be added in between the AC power supply output and input of the board. -
Page 3: Board Design
RTKA223011DE0010BU User Manual 2. Board Design PCB Guidelines For detailed PCB guidelines, see the RAA223011 datasheet. RTKA223011DE0010BU Evaluation board Figure 2. RTKA223011DE0010BU Evaluation Board (Top) Figure 3. RTKA223011DE0010BU Evaluation Board (Bottom) X0116829 Rev.1.0 Page 3 Jan.27.21... - Page 4 RTKA223011DE0010BU Circuit Schematic VREC UNNAMED_2_SMCAP_I62_A 40.2K ES1J CVCC RFB1 UNNAMED_2_AXIALRES_I25_1 UNNAMED_2_AXIALDIODE_I32_AN UNNAMED_2_INDRADIAL_I27_1 UNNAMED_2_INDRADIAL_I27_2 UNNAMED_2_RAA223011_I64_2 DRAIN UNNAMED_2_AXIALDIODE_I14_CAT UNNAMED_2_AXIALDIODE_I14_AN 1000UH 1N4007 402K 1N4007 UNNAMED_2_AXIALDIODE_I59_AN SOURCE RAA2230114GSP#JA0 UNNAMED_2_JUMPER2_I47_IN1 UNNAMED_2_INDRADIAL_I28_A 85VAC~265VAC VOUT UNNAMED_2_AXIALDIODE_I60_AN 1N4007 Figure 4. RTKA223011DE0010BU Schematic...
- Page 5 RTKA223011DE0010BU User Manual Bill of Materials Reference Designator Description Manufacturer Part Number COUT CAP ALUM 470µF 20% 16V Radial Rubycon 16ZLH470MEFCT78X11.5 D1, D3, D7 Generic Diode, 1kV, 1A, DO41 1N4007 C3, C4 Multilayer CAP, 0.47µF, 16V, 10%, 0603 C1608X7R1C474K Miniature Metal Film Resistor, 10Ω, 1W, 1%, Axial...
-
Page 6: Board Layout
RTKA223011DE0010BU User Manual Board Layout To download our design files, visit our website. Figure 5. Top Layer Figure 6. Bottom Layer X0116829 Rev.1.0 Page 6 Jan.27.21... -
Page 7: Typical Performance Curves
Energy Star 120V /60Hz 300mW 230V /50Hz 9.5mW 300mW EMI Test Results RTKA223011DE0010BU is compliant to the conducted and radiated EMI requirements of FCC Part15 and CISPR22. Figure 9. Line, 120V Figure 10. Line, 230V X0116829 Rev.1.0 Page 7 Jan.27.21... - Page 8 RTKA223011DE0010BU User Manual Figure 11. Neutral, 120V Figure 12. Neutral, 230V Figure 13. FCC Part15/CISPR22 Class B Radiated Emissions at 3 Meters, 120V , 60Hz (Peak Detector) Figure 14. FCC Part15/CISPR22 Class B Radiated Emissions at 3 Meters, 230V , 50Hz (Peak Detector) X0116829 Rev.1.0...
-
Page 9: Revision History
RTKA223011DE0010BU User Manual 4. Revision History Rev. Date Description 1.00 Jan.27.21 Initial release X0116829 Rev.1.0 Page 9 Jan.27.21... - Page 10 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
