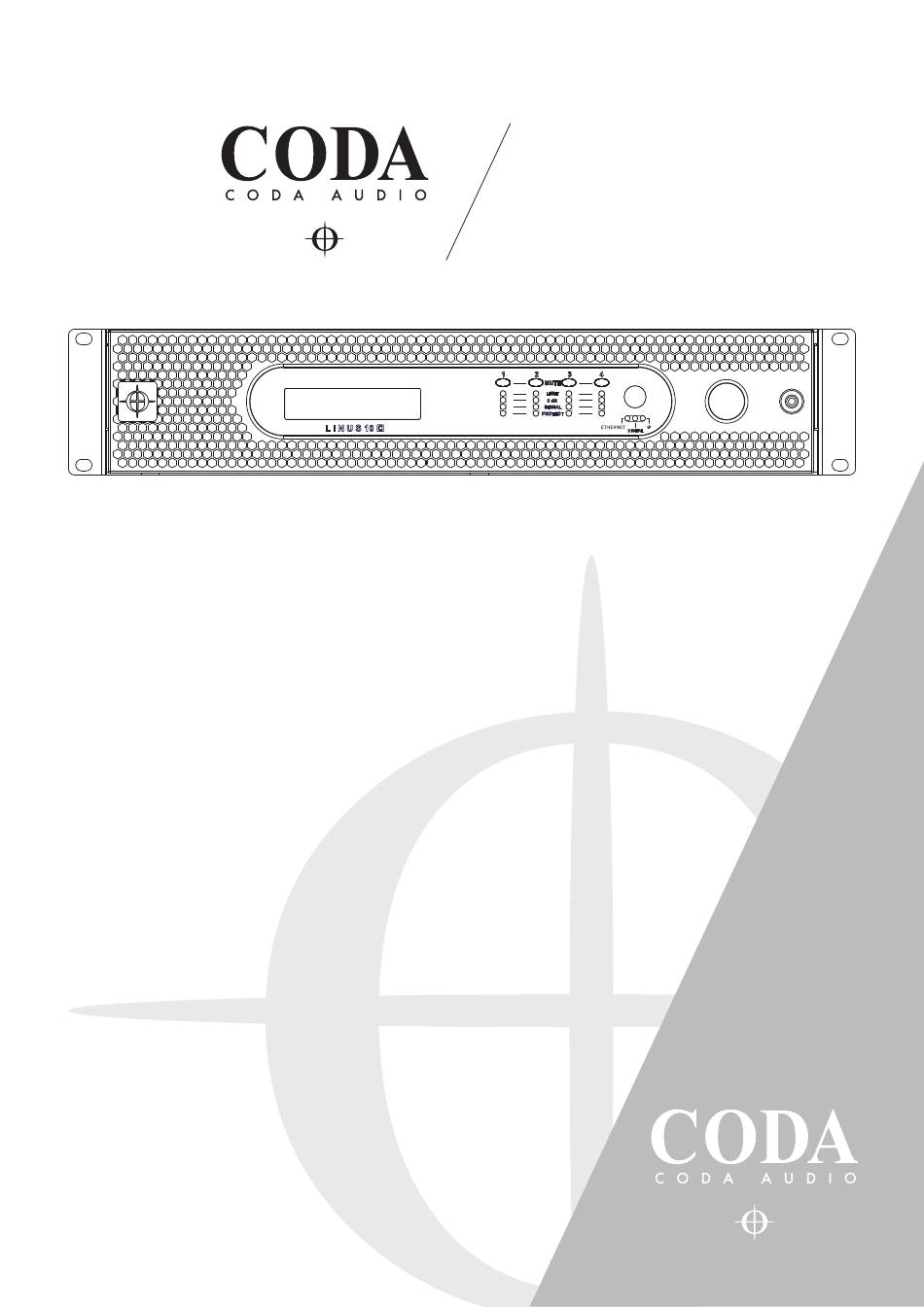

Coda LINUS10-C User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LINUS10-C
INFORMATION FOR USE FOR MODELS
CODA AUDIO LINUS10-C
The leading version of this brochure is the English one which shall prevail
to the exclusion of the national translation on hand.
USER MANUAL v2.0
Copyright 2010 - 2020 by CODA Audio GmbH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINUS10-C and is the answer not in the manual?

Questions and answers

Related Manuals for Coda LINUS10-C

Summary of Contents for Coda LINUS10-C

  • Page 1 INFORMATION FOR USE FOR MODELS CODA AUDIO LINUS10-C The leading version of this brochure is the English one which shall prevail to the exclusion of the national translation on hand. USER MANUAL v2.0 Copyright 2010 - 2020 by CODA Audio GmbH...
  • Page 2 +49 (0) 511 866 55 887 www.codaaudio.com Internet: Email: contact@codaaudio.com Subject to change. Please visit our website www.codaaudio.com for the latest version of this User Manual. Please note that the leading version of CODA Audio manuals is always the English one.

  • Page 3: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.3 What CODA Audio will do .

  • Page 4: Important Safety Instructions

    The user manual forms an integral part of the amplifier. It is recommended to check the CODA Audio website for any updates and new versions of this manual.
  • Page 5 14. Servicing All service and repair work must be carried out by a dealer/distributor authorized by CODA Audio. Do not attempt to service this amplifier yourself. Opening or removing covers may expose you to dangers or other hazards. The amplifier may only be opened by qualified personnel.

  • Page 6: Symbols

    LINUS10-C SYMBOLS SYMBOLS CAUTION - HIGH VOLTAGE HAZARDS CAUTION EXIST WITHIN THIS PRODUCT. REFER ALL SERVICING TO RISK OF ELECTRIC SHOCK DO NOT OPEN AUTHORIZED PERSONNEL THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCT’S ENCLOSURE.

  • Page 7: Ce Conformity

    Manufacturer's name: CODA Audio GmbH Manufacturer's address: Boulevard der EU 6, 30539 Hannover, Germany declares that the product with the model name: LINUS10-C conforms to the following standards: IEC/EN/UL/CSA 62368-1:2016 Safety IEC/EN 55103-1:2010 Emission (for all environments E1/residential to ES/industrial)

  • Page 8: Consignes De Sécurité Importantes

    Ce mode d'emploi fait partie intégrante de l’amplificateur. Il est recommandé de visiter régulièrement le site web de CODA Audio afin d’obtenir les mises à jour et nouvelles versions de ce manuel. La revente de l'amplificateur n'est possible qu'avec le mode d'emploi. Tout changement subi par l'amplificateur doit être documenté...
  • Page 9 été utilisé dans un environnement poussiéreux pendant un temps prolongé 14. Entretien Toute opération de maintenance ou réparation doit être effectuée par un revendeur / distributeur certifié par CODA Audio. N’essayez pas d'entretenir l'amplificateur par vous-même. L'ouverture de l’amplificateur ou retirer le capot pourrait vous exposer à...

  • Page 10: Symboles

    LINUS10-C SYMBOLES SYMBOLES ATTENTION —CE PRODUIT PRÉSENTE ATTENTION DES RISQUES ASSOCIÉS AU COURANT ÉLEVE. TOUT SERVICE RISQUE DE CHOC ÉLECTRIQUE DOIT ÊTRE EFFECTUE PAR DU NE PAS OUVRIR PERSONNEL AUTORISÉ. L’ÉCLAIR AVEC LE SYMBOLE DE LA FLÉCHE SERT A AVERTIR L’UTILISATEUR DE LA PRÉSENCE D’UNE TENSION NON ISOLÉE...

  • Page 11: Ce Conformité

    CODA Audio GmbH Adresse du constructeur : Boulevard der EU 6, 30539 Hannover, Allemagne déclare que le produit avec le nom de modèle : Amplificateur LINUS10-C est en conformité avec les normes suivantes : IEC/EN/UL/CSA 62368-1 : 2016 Sécurité IEC/EN 55103-1 : 2010 Emission (pour tous les environnements E1 / résidentiel à E5 / industriel) IEC/EN 55103-2 : 2010 Immunité...

  • Page 12: Wichtige Sicherheitshinweise

    Nutzung des Verstärkers sicher, dass allen Anweisungen, insbesondere den Sicherheitsanweisungen Folge geleistet wird. Die CODA Audio LINUS Verstärker sind darauf ausgelegt ein gepulstes Audiosignal zu verarbeiten und zu verstärken. An den Verstärker dürfen ausschließlich Lautsprecher mit den in dieser Anleitung spezifizierten Impedanzen angeschlossen werden.
  • Page 13 Verstärker wurde längere Zeit in einer staubigen Umgebung eingesetzt. 14. Service Jegliche Reparaturarbeiten müssen durch eine von CODA Audio autorisierte Stelle durchgeführt werden. Versuchen Sie nicht den Verstärker selbst zu reparieren, da das Öffnen des Verstärkers Sie gefährlichen Spannungen und anderen Risiken aussetzen kann. Der Verstärker darf nur von qualifiziertem und autorisiertem Personal geöffnet werden.

  • Page 14: Symbole

    LINUS10-C SYMBOLE SYMBOLE VORSICHT: PRODUKT UNTER VORSICHT HOCHSPANNUNG. ÜBERLASSEN SIE JEGLICHE WARTUNGSARBEITEN NICHT ÖFFNEN – AUTORISIERTEM KUNDENDIENST. STROMSCHLAGGEFAHR. DAS BLITZSYMBOL WARNT DEN BENUTZER VOR NICHTISOLIERTEN GEFÄHRLICHEN SPANNUNGEN INNERHALB DES GEHÄUSES. DAS AUSRUFEZEICHEN SOLL BENUTZER AUF WICHTIGE BEDIENUNGS- UND WARTUNGSANLEITUNGEN IN DER DEM VERSTÄRKER BEIGEFÜGTEN LITERATUR AUFMERKSAM MACHEN.

  • Page 15: Eu-Konformitätserklärung

    Name des Herstellers: CODA Audio GmbH Adresse des Herstellers: Boulevard der EU 6, 30539 Hannover, Deutschland erklärt, dass das Produkt mit der Modellbezeichnung: LINUS10-C den folgenden Normen entspricht: IEC/EN/UL/CSA 62368-1:2016 Sicherheitsnorm IEC/EN 55103-1:2010 Emissionen (für alle Umgebungen E1/Wohngebiete bis ES/gewerblich) IEC/EN 55103-2 :2010 Störfestigkeit (für alle Umgebungen E1/Wohngebiete bis ES/gewerblich)

  • Page 16: Welcome To Coda Audio

    CODA Audio is represented via a global network of experienced and techni cally qualified international distributors. We believe that the best way to get to know us better is by listening to our loudspeakers because:...

  • Page 17: The Amplifier

    Users can adapt the power amp to meet their specific audio requirements before use. The display mounted on the front of the LINUS10-C amplifier allow the differ ent functions to be accessed. Since there are a lot of parameters available, it is important that users should familiarise themselves thoroughly with the entire range of settings and programmable features before using the pow er amp.
  • Page 18 LINUS10-C 2. THE AMPLIFIER The front 1 Display 6 LEDs 2 Channel mute buttons 7 Ethernet connection LED 3 Rotary encoder knob 8 DAN connection LED 4 Standby power switch 9 Mains connection LED 5 Knurled grill screw The rear...

  • Page 19: Installation

    LINUS10-C 3. INSTALLATION 3. INSTALLATION 3.1 Mounting Use four screws and washers when mounting the amplifier to the front rack rails. For mobile use, the amplifier should also be secured using the 19” mounting elements on the rear panel. 10,50...

  • Page 20: Cooling

    3.3. Mains 3.3.1 Mains supply Only connect the LINUS10-C amplifier to an appropriate AC circuit and outlet in accordance with the requirements indicated on the rating plate. Only use mains cables with original Neutrik powerCON® 32 A connectors for safety reasons.
  • Page 21 3.3.3 Mains power consumption and current draw Due to the huge output power of LINUS10-C the mains current draw can get very high when demanding large output powers. Please refer to follow ing table for an overview of mains currents and power consumption under different operating conditions.

  • Page 22: Signal Inputs

    3/4 (-) Ethernet – Green AES/EBU-compatible devices (like other LINUS10-C amplifiers for example). Please note that although the AES/EBU and Receive (-) Ethernet connectors use the same connector type (RJ45), the physical transmission protocols are different. So any direct Brown-White 1/2 (+) connection between the AES/EBU connectors and standard Ethernet con nectors will not work.

  • Page 23: Remote Control Inputs (Ethernet)

    3.5 Remote control inputs (Ethernet) The Ethernet link network connector allows you to access the LINUS10-C from a host computer for remote control, firmware update and download ing DSP presets. Please note that for setting up proper network connec tion you need to use the CODA Audio LINUS Control software.

  • Page 24: Operation

    LINUS10-C 4. OPERATION 4. OPERATION 4.1 Screen user interface Indication: 1. Channel mute/ channel selection buttons 2. Rotary encoder knob selects, changes and enters parameters 3. Signal, limit and protection LEDs 4. Ethernet connection LED 5. Digital input signal selected (LINET-C) LED Display indicator: 1.
  • Page 25 LINUS10-C 4. OPERATION 4.1.4 Output gain Rotate the encoder knob to the point 02: "OUTPUT GAIN". Press the encoder knob to enter "GAIN" selection. Press and hold (1) channel action button for the appropriate channel and rotate the encoder knob (2).
  • Page 26 LINUS10-C 4. OPERATION 4.1.7 Load speaker Rotate the encoder knob to the point 05: "LOAD SPEAKER". Press the encoder knob to enter speaker selection. Press and hold (1) channel action button for the appropriate channel and rotate the encoder knob (2).
  • Page 27 LINUS10-C 4. OPERATION To unlock the display rotate the encoder knob to the point 07: "LOCK". Rotate the encoder knob (1) to type in code, press and hold (2) channel action button 1 to unlock the display. Once the code is entered the display returns back to main page automatically.

  • Page 28: Power Amp Protection

    4.3.2 Mains overvoltage detection There is NO overvoltage protection! The customer needs to be sure to only use the LINUS10-C in the voltage range printed on the label on the back of the unit! 4.4 Main SMPS protection...

  • Page 29: Filter Cleaning

    4.6 Filter cleaning The air intake on the front of your LINUS10-C amplifier is fitted with a remov able filter system. If the filter becomes clogged, the unit will not cool as efficiently as it should and may result in reduced output levels.

  • Page 30: Specification

    LINUS10-C 5. SPECIFICATION 5. SPECIFICATION General Number of output channels Output stage Class D Internal samplerate / bit-depth 96 kHz / 24 bit Signal-to-noise ratio > 112 dB (unweighted) > 115 dB (A-weighted) (22 Hz - 20 kHz, 4 Ω - analogue input) Signal-to-noise ratio >...
  • Page 31 LINUS10-C 5. SPECIFICATION AC Mains AC mains input connector Neutrik 32 A powerCON® 180 V = Minimum AC mains input voltage** 230 V = Nominal (230 V internal jumper setting) 264 V = Maximum 85 V = Minimum AC mains input voltage**...
  • Page 32 LINUS10-C 5. SPECIFICATION Output 1400 W @ 8 Ω RMS output power* 2500 W @ 4 Ω (20 Hz - 20 kHz, THD < 0.01%) 3100 W @ 2.7 Ω (all channels driven) 3700 W @ 2 Ω 3200 W pk @ 8 Ω...
  • Page 33 LINUS10-C 5. SPECIFICATION Physical Dimensions 483.5 x 88 x 454.18 mm | 19.04" x 3.46" x 17.88" (W x H x D) (2 Rack units) Shipping dimensions 675 x 130 x 560 mm | 26.57" x 5.12" x 22.05" (W x H x D) Volume = 0.049 m³...

  • Page 34: Performance

    LINUS10-C 6. PERFORMANCE 6. PERFORMANCE 1.00 0.50 0.00 -0.50 -1.00 -1.50 Figure 6.1 -2.00 Gain vs. frequency w/AES17-filter -2.50 @ 120 W output power, -3.00 4 Ω (measurement of a typical performance) 20.00 Hz 100.00 1000.00 10000.00 20000.00 -40.00 -50.00 -60.00...
  • Page 35 LINUS10-C 6. PERFORMANCE -40.00 -60.00 -80.00 -100.00 Figure 6.4 Channel separation OR crosstalk -120.00 @ 20 Hz--> 20 kHz (measurement of a typical performance) -137.81 20.00 Hz 100.00 1000.00 10000.00 20000.00 0.00 -20.00 -40.00 -60.00 -80.00 -100.00 Figure 6.5 -120.00 Common mode rejection -140.00...

  • Page 36: Warranty

    CODA Audio guarantees the LINUS10-C amplifier to be free from defective material and/or workmanship for a period of five (5) years from the date of sale. When a defect occurs under normal installation and use, CODA Audio will repair the product under this warranty.

  • Page 37: Warranty Form

    CODA Audio appointed distributor. Nature of problem occurred. Please describe the conditions that existed when the problem occurred and what attempts were made to correct it: Other equipment in your system: Our website: www.codaaudio.com provides a complete list of licensed CODA Audio dealers/distributors.

  • Page 38: Maintenance Information

    LINUS10-C 8. MAINTENANCE 8. MAINTENANCE INFORMATION Cleaning and servicing work on the inside of the amplifier must only be carried out by qualified personnel. Qualified personnel is defined as a person who has gained specialised relevant knowledge of electronic engineering...

  • Page 39: Notes - Changes Made To The Amplifier

    LINUS10-C 11. NOTES 11. NOTES - CHANGES MADE TO THE AMPLIFIER NOTE/ IMPORTANT: Please consider that any changes made to the amplifier have to be documented in writing and passed on to the buyer in the event of resale!
