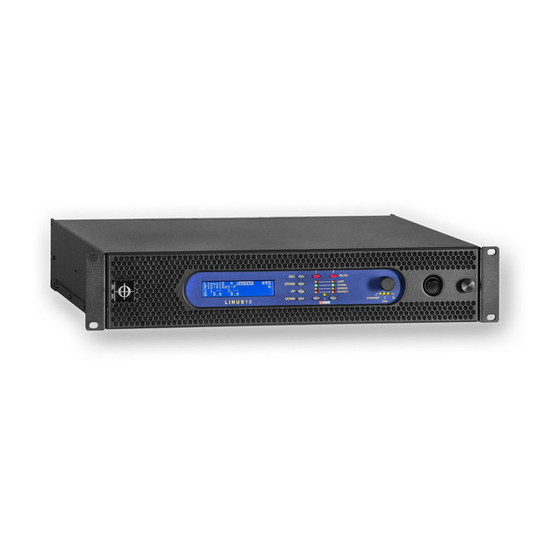

Coda Linus 10 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CODA AUDIO

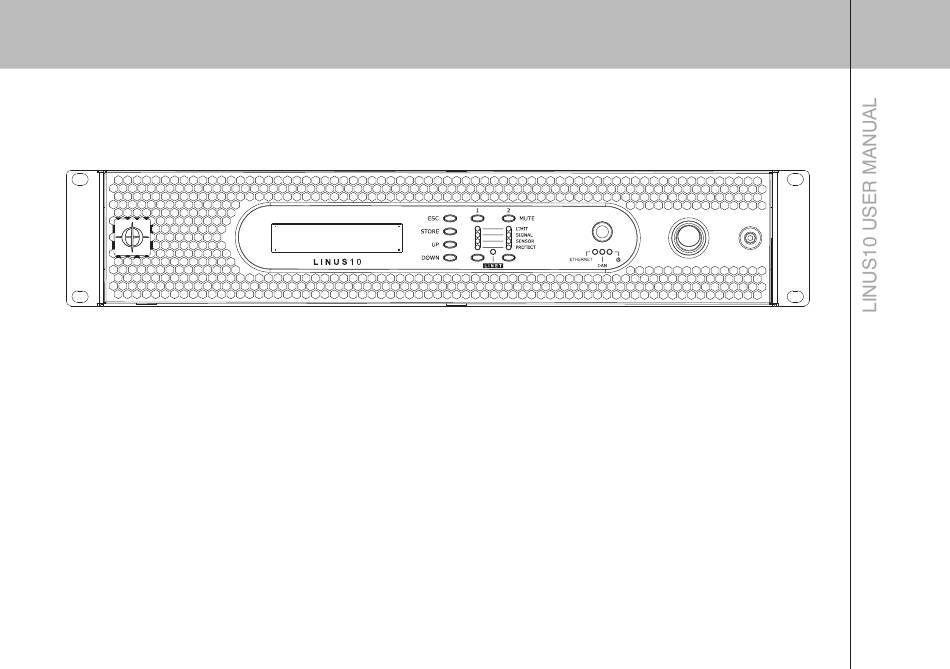

LINUS 10
INFORMATION FOR USE FOR MODELS
CODA AUDIO LINUS10
The leading version of this brochure is the English one which shall prevail
to the exclusion of the national translation on hand.
Copyright 2010 – 2015 by CODA AUDIO GmbH
Boulevard der EU 6, 30539 Hannover, Germany
Telephone +49 (0) 511 86655888
CODA AUDIO
LINUS 10
Please visit our website www.codaaudio.com for the latest version of this user manual. Please note that the leading version of CODA AUDIO manuals is always the English one.
P . 1
USER MANUAL v1.0
CODA AUDIO LINUS10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Linus 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Coda Linus 10

Summary of Contents for Coda Linus 10

  • Page 1 Telephone +49 (0) 511 86655888 CODA AUDIO LINUS 10 Please visit our website www.codaaudio.com for the latest version of this user manual. Please note that the leading version of CODA AUDIO manuals is always the English one. P . 1 USER MANUAL v1.0...
  • Page 2 Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon them or against them, paying The CODA AUDIO LINUS10 amplifier is designed for the amplification of particular attention to cords and plugs and the point where they exit from pulsed audio signals.
  • Page 3 14. Servicing All service and repair work must be carried out by a dealer/distributor au- thorized by CODA AUDIO. Do not attempt to service this amplifier yourself. As opening or removing covers may expose you to dangerous voltage or other hazards, the amplifier may only be opened by qualified personnel.
  • Page 4 CODA AUDIO LINUS 10 CAUTION – HIGH VOLTAGE HAZARDS CAUTION EXIST WITHIN THIS PRODUCT. RISK OF ELECTRIC SHOCK REFER ALL SERVICING TO DO NOT OPEN AUTHORIZED PERSONNEL. THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCT’S ENCLOSURE.
  • Page 5 CODA AUDIO LINUS 10 EC Declaration Of Conformity In Accordance To EC Directives: Electromagnetic compatibility (Council Directive 2014/30/EC,); Low-voltage electrical equipment (Council Directive 2014/35/EC ) Manufacturer´s Name: Coda Audio GmbH Manufacturer´s Address: Boulevard der EU 6, 30539 Hannover, Germany Declares That The Product With The Model Name:...
  • Page 6 CODA AUDIO LINUS 10 Consignes de Sécurité Importantes 5. Connection Secteur Ne brancher cet amplifcateur uniquement a une prise reliée a la terre. 1. Général L‘amplifcateur ne doit être utilisé qu‘en conformité avec les informations indi- 6. Protection du cordon d‘alimentation quées dans le mode d‘emploi.
  • Page 7 CODA AUDIO LINUS 10 11. Branchment 15. Réparation et pièces de rechange Pour brancher l‘amplifcateur à d‘autres dispositifs, éteindre le courant et S‘il faut des pièces de rechange, s‘assurer que le concessionnaire/distributeur débrancher tous les composants du réseau. Autrement, il y a un risque de n‘utilise que les pièces de rechange spécifées par le constructeur.
  • Page 8 CODA AUDIO LINUS 10 ATTENTION – CE PRODUIT PRÉSENTE ATTENTION DES RISQUES ASSOCIÉS AU COURANT ÉLEVE. TOUT SERVICE RISQUE DE CHOC ÉLECTRIQUE DOIT ÊTRE EFFECTUE PAR DU NE PAS OUVRIR PERSONNEL AUTORISÉ. L’ÉCLAIR AVEC LE SYMBOLE DE LA FLÉCHE SERT A AVERTIR L’UTILISATEUR DE LA PRÉSENCE D’UNE TENSION NON ISOLÉE A...
  • Page 9 CODA AUDIO LINUS 10 Déclaration de conformité CE Déclaration de conformité CE selon les directives CE: Compatibilité électromagnétique (Directive 2014/30/CE Conseil Européen) Basse tension (Directive 2014/35/EC du Conseil Européen) Nom du constructeur: Coda Audio GmbH Adresse du constructeur: Boulevard der EU 6, 30539 Hannover, Germany Déclare que le produit avec le nom de modèle:...

  • Page 10: Table Of Contents

    3.6 Power Outputs ® 7.2 Items Excluded from This Warranty 3.6.1 SPEAKON Connection 7.3 What CODA AUDIO Will Do P . 19 3.6.2 Dual Channel Operation 3.6.3 Sensorcable connection 7.4 How to Obtain Warranty Service 7.5 CODA AUDIO’s Product Improvement P .
  • Page 11 CODA AUDIO LINUS 10 P . 11 USER MANUAL v1.0 CODA AUDIO LINUS10...

  • Page 12: Unpacking

    Only you as the consignee may initiate a claim 4900 W peak per channel @ 4 Ohm for shipping damage. CODA AUDIO will be happy to cooperate fully as 5300 W peak per channel @ 2 Ohm needed. Please save the shipping carton as evidence of damage for the shipper’s inspection.

  • Page 13: Linus10 – The Rear

    CODA AUDIO LINUS 10 10 11 2.3 LINUS10 – The Front 2.4 LINUS10 – The Rear 1 Display 8 LED‘s 12 AC Power Connector 18 Sensor Connection ® Navigational Buttons 9 Ethernet-Connection LED SPEAKON Connectors 19 LINET Network Connections Channel Mute Buttons...
  • Page 14 CODA AUDIO LINUS 10 2.5 Factory settings 3.1 Mounting LINUS10 amplifiers are delivered with the following factory settings Use four screws and washers when mounting the amplifier to the front rack rails. For mobile use, the amplifier should also be secured using the 19”...

  • Page 15: Installation

    CODA AUDIO LINUS 10 3.2 Cooling Under normal operation of the power amp, overheating should never be a Please do NOT use much larger mains breakers than recommended problem. The air is taken in from the front and out through the back. It is...

  • Page 16: Mains Power Consuption And

    CODA AUDIO LINUS 10 3.3.2 Inrush current limitiation Operating condition Mains Power Output The LINUS10 has a special processor dedicated to limit the mains inrush current. current consumption power (4 Ù / 2 Ù) (4 Ù / 2 Ù) This limiter will take action anytime: Amplifier standby (power off) <...
  • Page 17 TO CHANNEL B TO CHANNEL A ing DSP presets. Please note that for setting up proper network connec - tion you need to use the CODA AUDIO LiNUS-Live software. P . 17 USER MANUAL v1.0 CODA AUDIO LINUS10...

  • Page 18: Speakon Connection

    CODA AUDIO LINUS 10 3.6 Power Outputs WARNING! ® 3.6.1 SPEAKON Connection ® SPEAKON connectors marked with the lightning flashes indicate ® Both SPEAKON connectors are connected to the channel A and chan - high voltages that are potentially life threatening.

  • Page 19: Sensorcable Connection

    CODA AUDIO LINUS 10 3.6.2 Dual Channel Operation Two fully independent amplifier channels (aka “Stereo” – normal operating mode). Linus10 In A In B Zmin = 2 Ù for Dual Channel operation 3.6.3 Sensorcable Connections UND VERTRIEBS-GMBH FISCHPICKE 5 D-57482 WENDEN...
  • Page 20 CODA AUDIO LINUS 10 4.1 Screen User Interface • Indication: 5. “Up“ skips operation pages up. 1. Channel mute buttons 2. Rotary encoder knob. Selects, changes and 6. “Down“ skips operation pages down. enter parameters 7. LiNET LED Indicates if digital signal is 3.
  • Page 21 CODA AUDIO LINUS 10 3. Preset Select - Go to position “P” by using the rotary encoder knob on the Master - Choose Preset and push to enter selection. Slave amplifier will change the preset automatically. Linus10 Master Preset P 14:ViRAY-A...
  • Page 22 CODA AUDIO LINUS 10 5. Input Gain - Position “G” – Adjust the Gain of the selected channel and push to confirm. Linus10 Master P 14:ViRAY-A I 1_LF 1_HF Gain G 0.0 6. Delay - Press the “Down” button to skip to second operation page.
  • Page 23 CODA AUDIO LINUS 10 8. Tuning - Go to position “T” and push the encoder knob to enter Tuning Page. O 1_LF 1_HF D 0.00 0.00 Tuning 1-> Tuning Page • Array • Sizing • High Shelf • Human EQ •...
  • Page 24 CODA AUDIO LINUS 10 9. Device Information and Display settings - Press the “Down” button 2x (in the main operation) Firmware Version Individual Device Name Linus10 autoname1 Device Serial Number 142001 V2.49 Lib 0.9 Preset Library Version IP Address Module Number IPA 192.168.001.001...
  • Page 25 CODA AUDIO LINUS 10 12. Store Customized User Preset - Store your customized user preset setting to the library of the unit. a) Library positions 01 to 05 are dedicated for this purpose. b) Unique name for your customized preset.
  • Page 26 CODA AUDIO LINUS 10 13. Signal LED - Select signal In- or Output LED indication by push Selection button 1+2 at the same time. The display will show the following messages a few seconds. For Signal Output LED indication: For Signal Input LED indication:...

  • Page 27: Sensor Led

    CODA AUDIO LINUS 10 4.2 Indicators 5. “Up“ skips operation pages up. 1. Channel mute buttons 2. Rotary encoder knob. Selects, changes and 6. “Down“ skips operation pages down. enter parameters 7. LiNET LED Indicates if digital signal is 3. “ESC“ escape button. Press it any time to selected - LED on →　...

  • Page 28: Soa Protection

    CODA AUDIO LINUS 10 4.3 Power Amp Protection Systems 4.4 Mains Protections 4.4.1 Inrush Current Limitation 4.3.1 SOA Protection Within 2 seconds of the LINUS10 amplifiers being connected to the mains, To ensure that the power transistors are only used in the Safe Operation...

  • Page 29: Fuse Protection

    CODA AUDIO LINUS 10 4.4.5 Fuse Protection 4.5 Main SMPS Protections 4.5.1 Overcurrent Protection When driving the LINUS10 at very high output levels over a longer period Main SMPS (Switched Mode Power Supply) transformer current of your of time (i.e. several seconds and minutes) the average mains current draw LINUS10 amplifier is continuously monitored.

  • Page 30: Internal Led Description

    CODA AUDIO LINUS 10 4.7 Internal LED Description This section describes the internal status-LEDs which can be seen from the front behind the dust filter. These status LEDs can be helpful for trou - bleshooting in case of an unexpected amplifer behaviour.

  • Page 31: Filter Cleaning

    CODA AUDIO LINUS 10 4.8 Filter Cleaning The air intake on the front of your LINUS10 amplifier is fitted with a remov- For changing the filter, no tools are required: first, remove the able filter system. If the filter becomes clogged, the unit will not cool as knurled screw right next to the StandBy switch.
  • Page 32 CODA AUDIO LINUS 10 Output Power 1250 W @ 16 Ù 1 kHz, THD ≤ 1%, in dual channel operation 2300 W @ 8 Ù typical values @ 230 V / 50 Hz 4000 W @ 4 Ù duration limited by fuse / thermal protection for RL<=8 Ù...

  • Page 33: Specification

    CODA AUDIO LINUS 10 Frequency Response 20 Hz – 20 kHz: ± 0,07 dB @ 4 Ù load with 120 W ouptut power – 17 kHz: <0,1% THD+N over frequency 20 Hz @ 4 Ù load with 120 W output power Damping Factor >400...
  • Page 34 CODA AUDIO LINUS 10 Latency Min. 2,70 ms with DSP on and AES or LINET input Min. 2,00 ms with DSP on and analog input AES – EBU, 32 – 196 kHz with sample rate converter Digital Inputs LINET digital audio network...
  • Page 35 CODA AUDIO LINUS 10 +0.5 -0.5 -1.5 -2.5 Figure 6.1 Figure 6.3 Gain vs. frequency, 120 W output power, 4 ? (channel 1, channel THD @ 1 kHz, 2 Ù vs. input voltage (channel 1, channel (Measurement of a typical performance) (Measurement of a typical performance) Figure 6.2...
  • Page 36 CODA AUDIO LINUS 10 -100 Figure 6.4 Figure 6.6 THD vs. frequency, 120 W output power, 4 Ù (channel 1, channel DIM 100 intermodulation distortion @ 4 Ù vs. input level ( c hannel 1, channel 2 (Measurement of a typical performance)
  • Page 37 CODA AUDIO LINUS 10 6000 5300 4900 5100 5000 4000 4000 2500 Watts 3000 2300 2000 1250 1250 1000 -55 -50 -45 -40 -10 -5 Peak Power Figure 6.8 SMPTE intermodulation distortion (60 Hz and 7 kHz) @ 4 Ù vs. input level...

  • Page 38: Summary Of Warranty

    7.2 Items Excluded from This Warranty CODA AUDIO is not liable for any damage caused by shipping accidents, misuse, abuse, operation with incorrect AC voltage, operation with faulty peripheral equipment, modification or alteration without prior factory approval, service by an unauthorized service center and normal wear and tear.
  • Page 39 Our web site: www.codaudio.com provides a complete list of CODA Please return the amplifier to the following address or your nearest AUDIO dealers/distributors. CODA AUDIO appointed distributor. CODA AUDIO GmbH, Boulevard der EU 6, 30539 Hannover, Germany P . 39 USER MANUAL v1.0 CODA AUDIO LINUS10...

  • Page 40: Maintenance Information

    CODA AUDIO LINUS 10 9 Maintenance Information Cleaning and servicing the inside of the amplifier must never be carried out by unqualified personnel. The amplifier must never be opened by unquali- fied personnel. Cleaning and servicing work on the inside of the amplifier must only be carried out by qualified personnel.
  • Page 41 CODA AUDIO LINUS 10 Mailing Address: CODA AUDIO GmbH Boulevard der EU 6 30539 Hannover Germany Telephone: +49 (0) 511 86655888 Facsimile: +49 (0) 511 86655887 Internet: www.codaaudio.com Email: contact@codaaudioaudio.com P . 41 USER MANUAL v1.0 CODA AUDIO LINUS10...
  • Page 42 CODA AUDIO LINUS 10 Changes Made To The Amplifier NOTE / IMPORTANT: Please consider that any changes made to the amplifier have to be doc- umentated in writing and passed on to the buyer in the event of resale! _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
