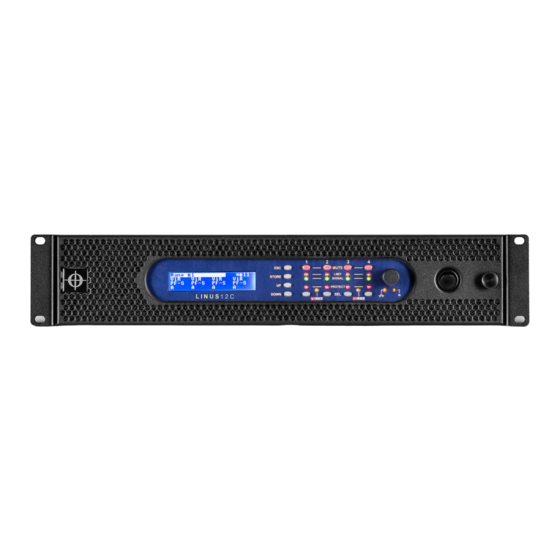

L I N U S 1 2 C
Copyright 2022 by CODA Audio GmbH
L I N U S 1 2 C
INFORMATION FOR USE FOR MODELS
CODA AUDIO LINUS12C
The leading version of this brochure is the English one which shall prevail
to the exclusion of the national translation on hand.
USER MANUAL v1.2
MAINS I N
CAUTION
RISK O F E LECTRIC
SHOCK
D O N OT O PEN
!
AVI S
RISQUE D E C HOC
ELECTRIQUE
NEP AS O UVRIR
100 - 250V ~ 3500W
50 - 60Hz
P S
E
LINUS12C
1
2
3
4
ESC
MUTE
LIMIT
STORE
SIGNAL
UP
PROTECT
DOWN
SEL
OUTPUT 3
OUT
N.A.
Ch 1 = 1+/1-
Ch 2 = 2+/2-
Ch 3 = 3+/3-
Ch 4 = 4+/4-
SEC
Ch 1 = 1+/1-
Ch 2 = 2+/2-
OUTPUT 1
ETHERNET
OUTPUT PER CH/IMP: 3000W/ 4 OHM
Ch 3 = 1+/1-
Ch 4 = 2+/2-
OUTPUT 2
1
Advertisement
Table of Contents
Related Manuals for Coda LINUS12C
Summary of Contents for Coda LINUS12C
- Page 1 Ch 2 = 2+/2- Ch 4 = 2+/2- L I N U S 1 2 C 100 - 250V ~ 3500W 50 - 60Hz OUTPUT 1 OUTPUT 2 ETHERNET OUTPUT PER CH/IMP: 3000W/ 4 OHM Copyright 2022 by CODA Audio GmbH...
- Page 2 +49 (0) 511 866 55 887 Fax: Internet: www.codaaudio.com Email: contact@codaaudio.com Subject to change. Please visit our website www.codaaudio.com for the latest version of this User Manual. Please note that the leading version of CODA Audio manuals is always the English one.
-
Page 3: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.3 What CODA Audio will do . -
Page 4: Important Safety Instructions
The user manual forms an integral part of the amplifier. It is recommended to check the CODA Audio website for any updates and new versions of this manual. - Page 5 14. Servicing All service and repair work must be carried out by a dealer/distributor authorized by CODA Audio. Do not attempt to service this amplifier yourself. Opening or removing covers may expose you to dangers or other hazards. The amplifier may only be opened by qualified personnel.
-
Page 6: Symbols
LINUS12C SYMBOLS SYMBOLS CAUTION - HIGH VOLTAGE HAZARDS CAUTION EXIST WITHIN THIS PRODUCT. REFER ALL SERVICING TO RISK OF ELECTRIC SHOCK DO NOT OPEN AUTHORIZED PERSONNEL THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCT’S ENCLOSURE. -
Page 7: Ce Conformity
Manufacturer's name: CODA Audio GmbH Manufacturer's address: Boulevard der EU 6, 30539 Hannover, Germany declares that the product with the model name: LINUS12C conforms to the following standards: IEC/EN/UL/CSA 62368-1:2016 Safety IEC/EN 55103-1:2010 Emission (for all environments E1/residential to ES/industrial) -
Page 8: Consignes De Sécurité Importantes
Ce mode d'emploi fait partie intégrante de l’amplificateur. Il est recommandé de visiter régulièrement le site web de CODA Audio afin d’obtenir les mises à jour et nouvelles versions de ce manuel. La revente de l'amplificateur n'est possible qu'avec le mode d'emploi. Tout changement subi par l'amplificateur doit être documenté... - Page 9 été utilisé dans un environnement poussiéreux pendant un temps prolongé 14. Entretien Toute opération de maintenance ou réparation doit être effectuée par un revendeur / distributeur certifié par CODA Audio. N’essayez pas d'entretenir l'amplificateur par vous-même. L'ouverture de l’amplificateur ou retirer le capot pourrait vous exposer à...
-
Page 10: Symboles
LINUS12C SYMBOLES SYMBOLES ATTENTION —CE PRODUIT PRÉSENTE ATTENTION DES RISQUES ASSOCIÉS AU COURANT ÉLEVE. TOUT SERVICE RISQUE DE CHOC ÉLECTRIQUE DOIT ÊTRE EFFECTUE PAR DU NE PAS OUVRIR PERSONNEL AUTORISÉ. L’ÉCLAIR AVEC LE SYMBOLE DE LA FLÉCHE SERT A AVERTIR L’UTILISATEUR DE LA PRÉSENCE D’UNE TENSION NON ISOLÉE... -
Page 11: Ce Conformité
CODA Audio GmbH Adresse du constructeur : Boulevard der EU 6, 30539 Hannover, Allemagne déclare que le produit avec le nom de modèle : Amplificateur LINUS12C est en conformité avec les normes suivantes : IEC/EN/UL/CSA 62368-1 : 2016 Sécurité IEC/EN 55103-1 : 2010 Emission (pour tous les environnements E1 / résidentiel à E5 / industriel) IEC/EN 55103-2 : 2010 Immunité... -
Page 12: Wichtige Sicherheitshinweise
Nutzung des Verstärkers sicher, dass allen Anweisungen, insbesondere den Sicherheitsanweisungen Folge geleistet wird. Die CODA Audio LINUS Verstärker sind darauf ausgelegt ein gepulstes Audiosignal zu verarbeiten und zu verstärken. An den Verstärker dürfen ausschließlich Lautsprecher mit den in dieser Anleitung spezifizierten Impedanzen angeschlossen werden. - Page 13 Verstärker wurde längere Zeit in einer staubigen Umgebung eingesetzt. 14. Service Jegliche Reparaturarbeiten müssen durch eine von CODA Audio autorisierte Stelle durchgeführt werden. Versuchen Sie nicht den Verstärker selbst zu reparieren, da das Öffnen des Verstärkers Sie gefährlichen Spannungen und anderen Risiken aussetzen kann.
-
Page 14: Symbole
LINUS12C SYMBOLE SYMBOLE VORSICHT: PRODUKT UNTER VORSICHT HOCHSPANNUNG. ÜBERLASSEN SIE JEGLICHE WARTUNGSARBEITEN NICHT ÖFFNEN – AUTORISIERTEM KUNDENDIENST. STROMSCHLAGGEFAHR. DAS BLITZSYMBOL WARNT DEN BENUTZER VOR NICHTISOLIERTEN GEFÄHRLICHEN SPANNUNGEN INNERHALB DES GEHÄUSES. DAS AUSRUFEZEICHEN SOLL BENUTZER AUF WICHTIGE BEDIENUNGS- UND WARTUNGSANLEITUNGEN IN DER DEM VERSTÄRKER BEIGEFÜGTEN LITERATUR AUFMERKSAM MACHEN. -
Page 15: Eu-Konformitätserklärung
Name des Herstellers: CODA Audio GmbH Adresse des Herstellers: Boulevard der EU 6, 30539 Hannover, Deutschland erklärt, dass das Produkt mit der Modellbezeichnung: LINUS12C den folgenden Normen entspricht: IEC/EN/UL/CSA 62368-1:2016 Sicherheitsnorm IEC/EN 55103-1:2010 Emissionen (für alle Umgebungen E1/Wohngebiete bis ES/gewerblich) IEC/EN 55103-2 :2010 Störfestigkeit (für alle Umgebungen E1/Wohngebiete bis ES/gewerblich) -
Page 16: Welcome To Coda Audio
CODA Audio is represented via a global network of experienced and techni cally qualified international distributors. We believe that the best way to get to know us better is by listening to our loudspeakers because:... -
Page 17: The Amplifier
Users can adapt the power amp to meet their specific audio requirements before use. The display mounted on the front of the LINUS12C amplifier allows the different functions to be accessed. Since there are a lot of parameters available, it is important that users familiarise themselves thoroughly with the entire range of settings and programmable features before using the power amp. - Page 18 10 Ethernet connection LED 5 1/0 Standby power switch 11 Mains connection LED 6 Grill screw 12 LINUS12C The rear 13 AC power connector (powerCON® 32 A) 17 SPEAKON® amplifier output connectors: 14 LiNET network connections 17A NL8MP (4 channels)
-
Page 19: Installation
LINUS12C 3. INSTALLATION 3. INSTALLATION 3.1 Mounting Use four screws and washers when mounting the amplifier to the front rack rails. For mobile use, the amplifier should also be secured using the 19” mounting elements on the rear panel. 10.00 mm / 0.39“... -
Page 20: Cooling
50 - 60Hz The LINUS12C is shipped with an EU Style Schuko connector, which must be protected by a 16 A mains circuit breaker. US amplifier 120VAC ships with 2 meter NEMA L5-30P to powerCON® 32 A. It must be protected with a 30 A mains circuit breaker. - Page 21 3. INSTALLATION 3.3.2 Inrush current limitation The LINUS12C has a special processor dedicated to limit the mains inrush current. This limiter will take action under any of the following conditions: - when connecting the amplifier to the mains through the mains cable - when switching the amplifier on through an external mains breaker - the mains voltage was lost for at least 4 half-cycles or more (e.g.
-
Page 22: Signal Inputs
Eight audio channels are arranged in four AES/EBU pairs. The AES/EBU input and output connectors allow you to receive and send multichannel digital audio streams to other AES/EBU-compatible devices (like other LINUS12C amplifiers for ex- ample). Please note that although the AES/EBU and Ethernet connectors use the same connector type (RJ45), the physical transmission protocols are different. -
Page 23: Remote Control Inputs (Ethernet)
3.5 Remote control inputs (Ethernet) The Ethernet link network connector allows you to access the LINUS12C from a host computer for remote control, firmware update and downloading DSP presets. Please note that for setting up proper network connection you need to use the CODA Audio LINUS Control software. -
Page 24: Operation
LINUS12C 4. OPERATION 4. OPERATION 4.1 Screen user interface Indication: 1. Channel mute buttons 2. Rotary encoder knob selects, changes and enters parameters 3. Press “ESC“ escape button anytime to deny selection and/or go back to main operation page 4. “STORE“ snapshots 1-10 5. - Page 25 3.00 Output Ch Frequency Gain Q Factor 1K00 3.00 Please refer to LINUS Control operation manual for detailed 1K00 3.00 information about tuning tools. LINUS12C SERIAL:XXXXXXXX Gain Serial number 1K00 3.00 192.168. FW:3.68 IP Address Firmware version LED METERS:OUTPUT LCD:0...
- Page 26 RECOVER FALLBACK: MUTE If clock is present, the LED will flash fast, LiNET source can be LIMIT STORE SIGNAL recovered by pressing CH buttons 1+2. PROTECT DOWN LINUS12C SERIAL:XXXXXXXX 192.168. FW:3.68 STATE Window LED METERS:OUTPUT LCD:0 Recover Fallback FALLBACK:OFF Lock-> Device Lock->...
- Page 27 MUTE LIMIT STORE SIGNAL PROTECT DOWN LINUS12C 4. OPERATION Store Snapshot Store to - MUTE Cancel > Store > LIMIT STORE SIGNAL PROTECT DOWN 4.1.11 Store snapshot Store Snapshot MUTE Store your customised user settings (inclusive tuning parameters) LIMIT Store to -S01-...
-
Page 28: Power Amp Protection Systems
4.3 Mains protection 4.3.1 Inrush current limitation Within one second of the LINUS12C amplifiers being connected to the mains, the inrush current limiter will charge the primary capacitors in a controlled way, limiting the maximum mains current during startup. 4.3.2 Mains overvoltage detection There is a overvoltage protection in the mains input. -
Page 29: Specification
LINUS12C 5. SPECIFICATION 5. SPECIFICATION General Number of output channels Output stage Class D-IC Internal samplerate / bit-depth 96 kHz/24 bit Signal-to-noise ratio > 108 dB (unweighted) > 111 dB (A-weighted) (22 Hz - 20 kHz, 4 Ω - analog input) Signal-to-noise ratio >... - Page 30 LINUS12C 5. SPECIFICATION AC Mains AC mains input connector Neutrik 32 A powerCON® AC mains voltage (high range)** 180 V = Minimum (dual voltage SMPS with automatic 230 V = Nominal 265 V = Maximum voltage range selection) AC mains voltage (low range)**...
- Page 31 LINUS12C 5. SPECIFICATION Output 1600 W @ 8 Ω RMS output power* 3000 W @ 4 Ω (20 Hz - 20 kHz, THD < 0.01%) 4000 W @ 2.7 Ω (all channels driven) 4100 W @ 2 Ω 3200 W pk @ 8 Ω...
- Page 32 LINUS12C 5. SPECIFICATION Physical Dimensions 483.5 x 88 x 454.18 mm | 19" x 3.46" x 17.88" (W x H x D) (2 Rack units) Shipping dimensions 675 x 130 x 560 mm | 26.57" x 5.12" x 22.05" (W x H x D) Volume = 0.049 m³...
-
Page 33: Performance
LINUS12C 6. PERFORMANCE 6. PERFORMANCE 1.50 1.00 0.50 1.00 1.50 0.50 0.00 -1.00 -0.50 20.00 Hz -1.50 100.00 1000.00 10000.00 NEED PIC 0.00 Figure 6.1 Size Correct -0.50 Gain vs. frequency w/AES17-filter -1.00 @ 120 W output power, 4 Ω (measurement of a typical performance) -1.50... - Page 34 LINUS12C 6. PERFORMANCE 0.00 -50.00 -100.00 Figure 6.4 Channel separation OR crosstalk -150.00 @ 20 Hz --> 20 kHz (measurement of a typical performance) -200.00 20.00 Hz 100.00 1000.00 10000.00 0.00 -40.00 -80.00 Figure 6.5 -120.00 Common mode rejection @ 20 Hz --> 20 kHz -160.00...
-
Page 35: Warranty
CODA Audio guarantees the LINUS12C amplifier to be free from defective material and/or workmanship for a period of five (5) years from the date of sale. When a defect occurs under normal installation and use, CODA Audio will repair the product under this warranty. -
Page 36: Warranty Form
CODA Audio appointed distributor. Nature of problem occurred. Please describe the conditions that existed when the problem occurred and what attempts were made to correct it: Other equipment in your system: Our website: www.codaaudio.com provides a complete list of licensed CODA Audio dealers/distributors. -
Page 37: Maintenance Information
LINUS12C 8. MAINTENANCE 8. MAINTENANCE INFORMATION Cleaning and servicing work on the inside of the amplifier must only be carried out by qualified personnel. Qualified personnel is defined as a person who has gained specialised relevant knowledge of electronic engineering... -
Page 38: Notes - Changes Made To The Amplifier
LINUS12C 11. NOTES 11. NOTES - CHANGES MADE TO THE AMPLIFIER NOTE/ IMPORTANT: Please consider that any changes made to the amplifier have to be documented in writing and passed on to the buyer in the event of resale!
