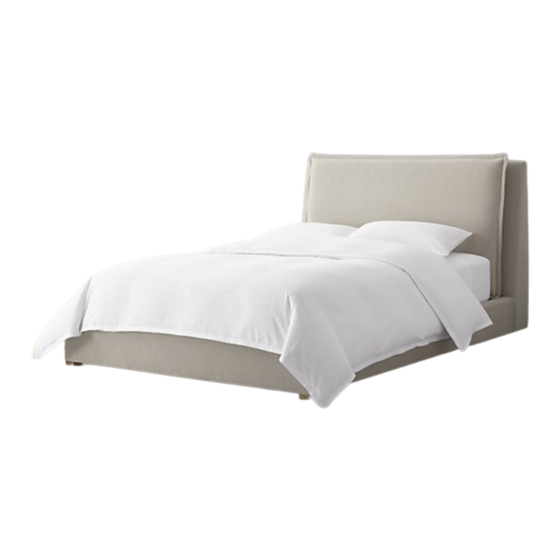

RH Baby&child SLOANE TWIN Assembly Instructions

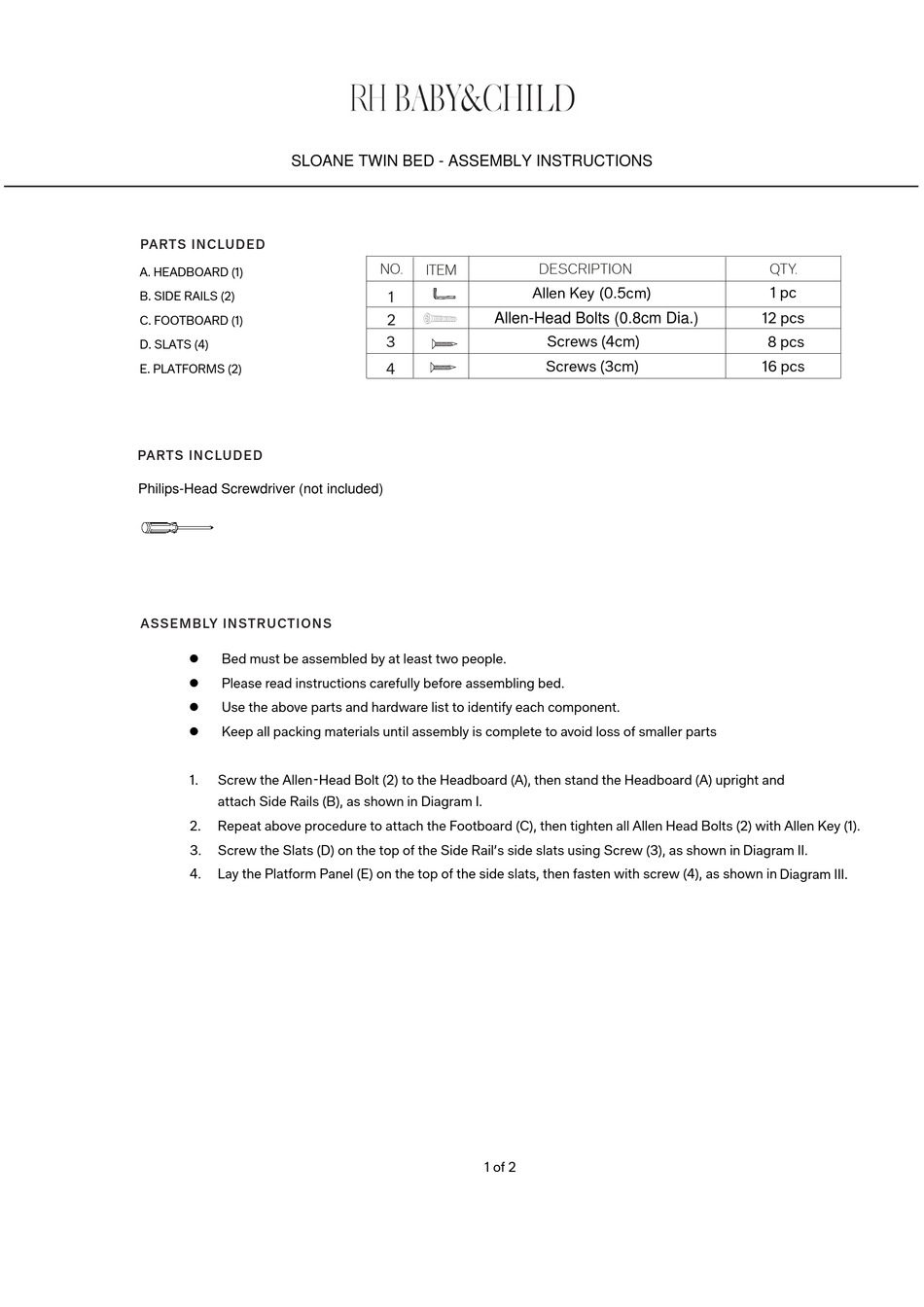

SLOANE TWIN BED - ASSEMBLY INSTRUCTIONS
PA RTS I NC LU D ED
A. HEADBOARD (1)
B. SIDE RAILS (2)
C. FOOTBOARD (1)
D. SLATS (4)
E. PLATFORMS (2)
PARTS I N CLU DE D
Philips-Head Screwdriver (not included)
ASS E M BLY IN ST RUCT IO NS

Bed must be assembled by at least two people.

Please read instructions carefully before assembling bed.

Use the above parts and hardware list to identify each component.

Keep all packing materials until assembly is complete to avoid loss of smaller parts
1. Screw the Allen Head Bolt (2) to the Headboard (A), then stand the Headboard (A) upright and
attach Side Rails (B), as shown in Diagram I.
2. Repeat above procedure to attach the Footboard (C), then tighten all Allen Head Bolts (2) with Allen Key (1).
3. Screw the Slats (D) on the top of the Side Rail's side slats using Screw (3), as shown in Diagram II.
4. Lay the Platform Panel (E) on the top of the side slats, then fasten with screw (4), as shown in Diagram III.
NO.
ITEM
1
2
3
4
-
1 of 2
DESCRIPTION
Allen-Head Bolts (0.8cm Dia.)
Screws (4cm)
Screws (3cm)
QTY.
1 pc
12 pcs
8 pcs
16 pcs
