RH Baby&child Callum Manual

PARTS I N C LUD E D :
A [1]
HEADBOARD PANEL
B [1]
FOOTBOAR PANEL
C [1]
RIGHT STORAGE BASE
D [1]
LEFT SIDE RAIL
E [3]
STRETCHER BARS
F [2]
PLATFORM PANELS
TO O L S N EED E D :
Phillips Head Screwdriver (not included)
ASS EM B LY I NST R U CT IO NS:

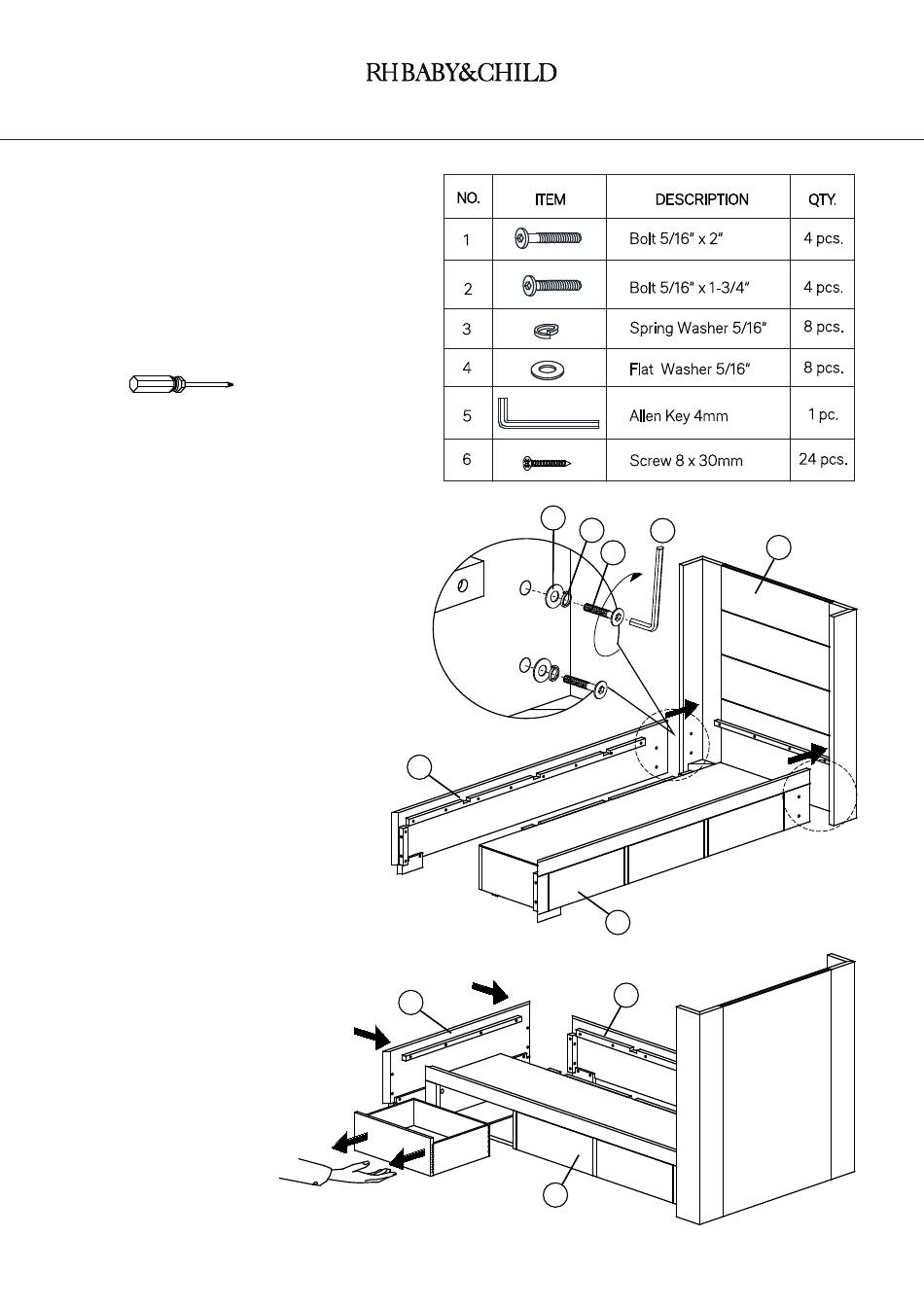

ST EP 1:
Attach the Right Storage Base (C) and
Left Side Rail (D) to the Headboard (A)
with Short Bolt (2), Spring Washer (3),
Flat Washer (4), and tighten by using
Allen Key (4).
ST EP 2:
- Remove the drawer from Right Storage
Base (C) completely, and set it aside.
- Position the Footboard (B) between
the Right Storage Base (C) and Left Side
Rail (D) and align the holes.
Note:
- The drawer is equipped with rubber
stopper that prevent the drawer from
being removed during normal operation.
- During assembly, the drawer can be
removed with minor force as the rubber
stoppers will bend to allow the drawer
to be removed completely.
- When removing the drawer, it MUST
be removed at a straight angle. If it is
crooked, the drawer will stick on the
wooden runners.
C A L L U M R I G H T S T O R A G E B E D T W I N I N S T R U C T I O N S
D
B
NO.
ITEM
1
2
3
4
5
6
4
3
4x
2
C
C
Page 1 of 3
DESCRIPTION
Bolt 5/16" x 2"
Bolt 5/16" x 1-3/4"
Spring Washer 5/16"
Flat Washer 5/16"
Allen Key 4mm
Screw 8 x 30mm
5
A
D
QTY.
4 pcs.
4 pcs.
8 pcs.
8 pcs.
1 pc.
24 pcs.
