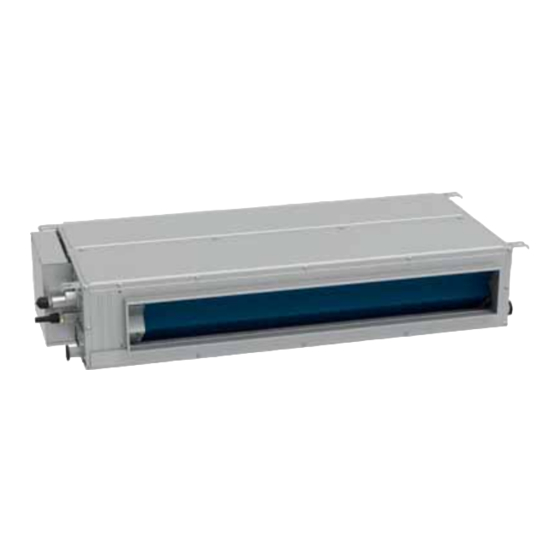

Argo ADG ECO 35PH User And Installation Manual

Package dci r32 duct type indoor/outdoor units
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PACKAGE DCI R32
Duct Type Indoor Units
User and installation manual
Models:
Indoor Unit :
:
ADG ECO 35PH
ADG ECO 50PH
ADG ECO 70PH
ADG ECO 85PH
ADG ECO 100PH
ADG ECO 140PH
ADG ECO 160PH
ADG ECO 100PH
ADG ECO 140PH
ADG ECO 70PHB
ADG ECO 85PHB
Outdoor Unit:
AEG ECO 35PIH
AEG ECO 50PIH
AEG ECO 70PIH
AEG ECO 85PIH
AEG ECO 100PH
AEG ECO 140PIH
AEG ECO 160PIH3
AEG ECO 100PIH3
AEG ECO 140PIH3

Advertisement

Table of Contents
loading

Related Manuals for Argo ADG ECO 35PH

Summary of Contents for Argo ADG ECO 35PH

  • Page 1 PACKAGE DCI R32 Duct Type Indoor Units User and installation manual Models: Indoor Unit : Outdoor Unit: ADG ECO 35PH AEG ECO 35PIH ADG ECO 50PH AEG ECO 50PIH ADG ECO 70PH ADG ECO 70PHB AEG ECO 70PIH ADG ECO 85PH...
  • Page 2 To Users Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: (1) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of...
  • Page 3 necessary revision to the product from time to time due to the reason of sales or production, and reserve the right to revise the contents without further notice. (7) Indoor unit must not be installed in a laundry. (8) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 4: Table Of Contents

    Contents 1 Safety Notice (Please be sure to abide) ......1 2 Product Introduction ............5 2.1 Overall Layout ................5 2.2 Operating Range ..............6 2.3 Standard Accessories .............6 3 Installation ................7 3.1 Installation Preparation ............7 3.2 Unit Installation ..............19 3.3 Electrical Installation ............

  • Page 5: Safety Notice (Please Be Sure To Abide)

    DC Inverter Package R32 Duct Type Unit 1 Safety Notice (Please be sure to abide) SPECIAL WARNING: (1) Be sure to comply with national gas regulations. (2) Do not pierce or burn. (3) Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
  • Page 6 DC Inverter Package R32 Duct Type Unit Before installing the air conditioner, please read the instruction manual. Before repairing the air conditioner, please read the instruction manual. The figures in this manual may be different with the material objects, please refer to the material objects for reference. PROHIBITED! (1) The air conditioner should be grounded to avoid electric shock.
  • Page 7 DC Inverter Package R32 Duct Type Unit WARNING! (8) During installation, use the specialized accessories and components, otherwise water leakage, electric shock or fire hazard may occur. (9) Please install the air conditioner in a secure place that can withstand the weight of air conditioner.
  • Page 8 DC Inverter Package R32 Duct Type Unit NOTES! (1) Do not put a finger or other objects into the air inlet or air return grill. (2) Please adopt safety protection measures before touching the refrigerant pipe; otherwise your hands may be hurt. (3) Please arrange the drain pipe according to the instruction manual.

  • Page 9: Product Introduction

    DC Inverter Package R32 Duct Type Unit 2 Product Introduction 2.1 Overall Layout NOTES: The connection pipe, drain pipe, power cord, and duct for this unit should be prepared by the user. The unit is standard equipped with rectangular duct.

  • Page 10: Operating Range

    DC Inverter Package R32 Duct Type Unit 2.2 Operating Range Cooling Heating Outdoor temperature DB(°C) -20~48 -20~24 Indoor temperature DB/WB(°C)(Maximum) 32/23 27/- 2.3 Standard Accessories Indoor Unit Accessories Name Appearance Q'ty Usage Wired To control the indoor unit. Controller Nut with To fix the hook on the cabinet of Washer the unit.

  • Page 11: Installation

    DC Inverter Package R32 Duct Type Unit 3 Installation 3.1 Installation Preparation 3.1.1 Notice on Installation (1) Notice on Refrigerant Concentration before Installation. This air conditioner uses R32 refrigerant. The construction area for installation, operation and storage of the air conditioner must be larger than the minimum construction area.
  • Page 12 DC Inverter Package R32 Duct Type Unit Ceiling type Wall mounted type Floor standing type Weight(kg) Area (m Weight(kg) Area (m Weight (kg) Area (m 6.54 9.76 87.9 7.38 11.0 99.2 8.27 12.4 9.22 13.8 10.2 15.3 11.3 16.8 12.4 18.5 13.5 20.2...
  • Page 13 DC Inverter Package R32 Duct Type Unit stick a label on the air conditioner saying no excessive charging. (4) The following tools will be used: 1) Liquid-level gauge; 2) Screwdriver; 3) Electric driven rotary hammer; 4) Drill; 5) Pipe expander; 6) Torque wrench;...
  • Page 14 DC Inverter Package R32 Duct Type Unit interference or noise (Even at a distance of 1m, a very strong electric wave may still generate noise). Selection of Installation Location for Outdoor Unit (Select a location pursuant to the following condition). (1) Noise and air flow produced by the outdoor unit will not disturb the neighbors.
  • Page 15 DC Inverter Package R32 Duct Type Unit (1) Indoor unit ADG ECO 35PH,ADG ECO 50PH,ADG ECO 70PH ADG ECO 85 PH,ADG ECO 100PH-T, ADG ECO 140PH, ADG ECO 160PH Gas pipe Liquid pipe Electric Box Drain pipe ADG ECO 70PH, ADG ECO 70PHB, ADG ECO 85PH, ADG ECO 85PHB...
  • Page 16 DC Inverter Package R32 Duct Type Unit NOTE! Drilling of ceiling opening and installation of air conditioner must be performed by professionals! Unit: mm Dimensions Model ADG ECO 35PH ADG ECO 50PH 1060 1000 1068 ADG ECO 70PH 1360 1300...
  • Page 17 DC Inverter Package R32 Duct Type Unit (2) Outdoor unit. AEG ECO 35 PIH, AEG ECO 50PIH, AEG ECO 50PIH, AEG ECO 85PIH. AEG ECO 100PIH, AEG ECO 140PIH, AEG ECO 100PIH3, AEG ECO 140PIH3...
  • Page 18 DC Inverter Package R32 Duct Type Unit AEG ECO 160PIH3. Unit: mm Dimensions Model AEG ECO 35PH AEG ECO 50PIH AEG ECO 70PIH AEG ECO 85PH 1002 — AEG ECO 100PIH — AEG ECO 100PIH3 — AEG ECO 140PIH — AEG ECO 140PIH3 —...
  • Page 19 DC Inverter Package R32 Duct Type Unit 3.1.4 Diagram of Unit Installation Space and Location (1) Diagram of installation space and location for outdoor unit (Notice: for best performance of the outdoor unit, make sure its installation space conforms to the following installation dimensions). 1) When one outdoor unit is to be installed.
  • Page 20 DC Inverter Package R32 Duct Type Unit 2) When two or more outdoor units are to be installed side by side. Unit: mm (mm) A,B,C — ≥300 ≥300 ≥1000 — — A,B,C,E — ≥300 ≥300 ≥1000 — ≥1000 — — —...
  • Page 21 DC Inverter Package R32 Duct Type Unit 3) When outdoor units are installed in rows. Unit: mm (mm) ≤1/2H b≥250 b≥300 1/2H＜H ≤H ＞H Prohibited...
  • Page 22 DC Inverter Package R32 Duct Type Unit 4) When outdoor units are installed one above another. Unit: mm...

  • Page 23: Unit Installation

    DC Inverter Package R32 Duct Type Unit (2) Diagram of installation location and space for indoor unit (Notice: for the best performance of indoor unit, make sure its installation space conforms to the following installation dimensions). Unit: mm 3.2 Unit Installation 3.2.1 Indoor Unit Installation 3.2.1.1 Preparation for Installing the Indoor Unit NOTES!
  • Page 24 DC Inverter Package R32 Duct Type Unit (3) Install the hanger to the unit. See the following figure. (4) Pass the unit hangers over the bolts installed to the ceiling and install the unit with the special nut. See the following figure. 3.2.1.2 Leveling After installing the indoor unit, level detection of the unit shall be conducted.
  • Page 25 DC Inverter Package R32 Duct Type Unit 3.2.2 Outdoor Unit Installation (1) If the outdoor unit is installed on a solid ground such as concrete, use M10 screw bolts and nuts to secure the unit and make sure the unit stands erect and level.
  • Page 26 DC Inverter Package R32 Duct Type Unit 3.2.3 Connection Pipe Installation 3.2.3.1 Installation Notice and Requirement on Connection Pipe NOTES! (1) Indoor unit adopts special joints that can’t be disassembled. The installation method is the same as the unit with ordinary joints. However, because the joints can’t be removed, if the connection is not good and causes leakage, the joints need to be cut and welded again for replacement.
  • Page 27 Maximum Biggest drop between Item Pipe(inch) pipe indoor and outdoor Model Liquid pipe Gas pipe length(m) units(m) ADG ECO 35PH Ф3/8 Ф1/4 ADG ECO 50PH Ф1/2 ADG ECO 70PH ADG ECO 70PHB ADG ECO 85PH ADG ECO 85PHB Ф3/8 Ф5/8...
  • Page 28 DC Inverter Package R32 Duct Type Unit The requirement on the adding of oil return bend is as below: (1) Outdoor unit is beneath the indoor unit. There’s no need to add non-return bend at the lowest or highest position of the vertical pipe, as shown below: (2) Outdoor unit is above the indoor unit.
  • Page 29 DC Inverter Package R32 Duct Type Unit Dimensions for the making of oil return bend are as follows: A(inch) B(mm) C(mm) Ф3/8 ≥20 ≤150 Ф1/2 ≥26 ≤150 Ф5/8 ≥33 ≤150 3.2.3.2 Pipe Flaring (1) Cut the connection pipe with a pipe cutter. (2) The mouth of connection pipe should face downward.
  • Page 30 DC Inverter Package R32 Duct Type Unit (2) Do not bend the pipes in an angle more than 90°. (3) If the pipe is repeatedly bent or extended, it will become hard and difficult to be bent or extended. So do not bend or extend the pipe for more than 3 times.
  • Page 31 DC Inverter Package R32 Duct Type Unit Pipe diameter (inch) Tightening torque (N·m) Ф1/4 15-30 Ф3/8 35-40 Ф1/2 45-50 Ф5/8 60-65 Ф3/4 70-75 Ф7/8 80-85 Screw on the flare nut of the flaring connecting pipe on the outdoor unit valve. The method of screwing the flare nut is the same with that for indoor unit.
  • Page 32 DC Inverter Package R32 Duct Type Unit 3.2.3.5 Thermal Insulation of Pipe Joint (Only for indoor unit) Stick coupler heat insulation (large and small) to the place where connecting pipes. 3.2.3.6 Sealing of the Knock-off Hole As for the built-in valve model, during the installation process for connection pipe, when the connection pipe is passing through the knock-off hole, conduct sealing with insulated cotton in the knock-off hole of outdoor unit to prevent small animals from entering.
  • Page 33 (5) The evacuation duration depends on the unit’s capacity, generally. Model Time(min) ADG ECO 35PH ADG ECO 50PH ADG ECO 70PH ADG ECO 70PHB ADG ECO 85PH...
  • Page 34 DC Inverter Package R32 Duct Type Unit Then, close the switch fully and then stop the vacuum pump. (6) Wait for 10min to see if the system pressure can remain unchanged. If the pressure increase, there may be leakage. (7) Slightly open the liquid valve and let some refrigerant go to the connection pipe to balance the pressure inside and outside of the connection pipe, so that air will not come into the connection pipe when removing the hose.
  • Page 35 DC Inverter Package R32 Duct Type Unit the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
  • Page 36 DC Inverter Package R32 Duct Type Unit 3.2.6 Installation of Drain Pipe (1) It is not allowed to connect the condensate drain pipe into waste pipe or other pipelines which are likely to produce corrosive or peculiar smell to prevent the smell from entering indoors or corrupt the unit. (2) It is not allowed to connect the condensate drain pipe into rain pipe to prevent rain water from pouring in and cause property loss or personal injury.
  • Page 37 DC Inverter Package R32 Duct Type Unit (6) There is a drain port on both the left and right sides. Select the drain port to match the local conditions. See the following figure. (7) When the unit is shipped from the factory, the drain port is defaulted to be the one on the left side (electric box side).
  • Page 38 DC Inverter Package R32 Duct Type Unit 3.2.6.2 Outdoor Side Drain Pipe If the outdoor unit is underneath the indoor unit, arrange the pipeline according to the following diagram. 1) Drain hose should be placed on the ground and its end should not be immersed into water.
  • Page 39 Item Drain pipe Model (outer dimension × wall thickness)(mm) ADG ECO 35PH ADG ECO 50PH ADG ECO 70PH ADG ECO 70PHB ADG ECO 85PH Ф26×2.5...
  • Page 40 DC Inverter Package R32 Duct Type Unit The vertical height of the drain hose should be 75mm or less so that it is unnecessary for the drain port to withstand additional force. When multiple drain hoses are used, their installation should be performed as shown in the figure below.
  • Page 41 DC Inverter Package R32 Duct Type Unit (4) Drain branch should be connected to the vertical or horizontal part of the main drain pipe. (5) Horizontal pipe should not be connected to the vertical pipe that is on the same level. It should be connected in the following way: 1) Attach the 3-way connection of the drainage pipe joint.
  • Page 42 3.2.7.1 Dimensions of the Supply Air Outlet/Return Air Inlet Supply Air Outlet Return Air Inlet Unit: mm Supply Air Outlet Return Air Inlet Item Model ADG ECO 35PH ADG ECO 50PH 1000 ADG ECO 70PH 1185 1300 ADG ECO 85PH ADG ECO 70PHB...
  • Page 43 DC Inverter Package R32 Duct Type Unit Supply Air Outlet Return Air Inlet Item Model ADG ECO 140PH 1360 1150 ADG ECO 160PH 3.2.7.2 Return Air Method (1) The default ex-factory return air method is from the back. The return air cover shall be installed at the bottom of the unit, as is shown in the following figure.
  • Page 44 DC Inverter Package R32 Duct Type Unit 3.2.7.3 Installation of Supply Air Duct and Return Air Duct Installation method shall be selected by entirely considering the conditions of buildings, maintenance, etc.as is shown in the following figure. Name canvas duct return air duct supply air duct indoor unit...

  • Page 45: Electrical Installation

    DC Inverter Package R32 Duct Type Unit NOTES: The supply air duct, return air duct and fresh air duct shall have thermal ①. insulation layer to prevent heat leakage and condensation. Stick the plastic nail to the air duct, then attach the heat preservation cotton with tinfoil and fix it with plastic nail cover, finally, seal the connection joint with tinfoil tape tightly;...
  • Page 46 DC Inverter Package R32 Duct Type Unit The external power cord, connection wire of indoor and outdoor units and the ④. communication cords must be effectively fixed. The external power cord, connection wire of indoor and outdoor units and the ⑤.
  • Page 47 DC Inverter Package R32 Duct Type Unit Circuit Min. sectional Power supply breaker area of power Model capacity cord V/Ph/Hz AEG ECO 35PIH AEG ECO 50PIH AEG ECO 70PIH 220-240V ~50Hz AEG ECO 85PIH 208-230V ~60Hz AEG ECO 100PIH AEG ECO 140PIH AEG ECO 100PIH3 AEG ECO 140PIH3 380-415V 3N~50/60Hz...
  • Page 48 DC Inverter Package R32 Duct Type Unit proper length according to local conditions. Communication cords must not be twisted together. To be in compliance EN 55014, it is necessary to use 8 meters long wire. Adopt 2pc of 0.75mm power cords to be the communication cords between ⑦.
  • Page 49 DC Inverter Package R32 Duct Type Unit (3) How to connect the connection wire and power cord. Lead the connection wire and power cord through the insulation tube. Then fix the wires with wire clamps (as shown in the following figure). WARNING! (1) Before working, please check whether the indoor and outdoor units are powered on.
  • Page 50 DC Inverter Package R32 Duct Type Unit (4) Wire between indoor and outdoor units. Single-phase unit: AEG ECO 35PIH, AEG ECO 50PIH, AEG ECO 70PIH, AEG ECO 85PIH ADG ECO 35PH+AEG ECO 35PIH ADG ECO 50PH+AEG ECO 50PIH Power cords 3×1.5mm ①.
  • Page 51 DC Inverter Package R32 Duct Type Unit ADG ECO 70PH+AEG ECO 70PIH ADG ECO 70PHB+AEG ECO 70PIH ADG ECO 85PH+AEG ECO 85PIH ADG ECO 85PHB+AEG ECO 85PIH Power cords 3×2.5mm ①. Power cords 3×1.0mm ②. Communication cords 2×0.75mm ③. Communication cords 2×0.75mm ④.
  • Page 52 DC Inverter Package R32 Duct Type Unit ADG ECO 100PH+AEG ECO 100PIH ①. Power cords 3×4.0mm ②. Power cords 3×1.0mm ③. Communication cords 2×0.75mm ④. Communication cords 2×0.75mm ADG ECO 140PH+AEG ECO 140PIH ①. Power cords 3×6.0mm ②. Power cords 3×1.0mm ③.
  • Page 53 DC Inverter Package R32 Duct Type Unit Three-phase unit: AEG ECO 100PIH3,AEG ECO 140PIH3. ADG ECO 100PH+AEG ECO 100PIH3 ADG ECO 140PH+AEG ECO140PIH3 ①. Power cords 5×1.5mm ②. Power cords 3×1.0mm ③. Communication cords 2×0.75mm ④. Communication cords 2×0.75mm...
  • Page 54 DC Inverter Package R32 Duct Type Unit Three-phase unit: AEG ECO 160PIH3 ADG ECO 160PH+AEG ECO 160PIH3 ①. Power cords 5×1.5mm ②. Power cords 3×1.0mm ③. Communication cords 2×0.75mm ④. Communication cords 2×0.75mm...
  • Page 55 DC Inverter Package R32 Duct Type Unit (5) Electrical wiring of indoor unit and outdoor unit. WARNING! (1) High and low voltage wires should be led through different rubber rings of the electric box cover. (2) Do not bundle up the connection wire and communication wire of wired control or lay them side by side, otherwise errors will occur.
  • Page 56 DC Inverter Package R32 Duct Type Unit Only for ADG ECO 160PH 2) Outdoor side Remove the big handle/front panel of the outdoor unit and insert one end of the communication cord and the power cord to the terminal board. Single-phase: AEG ECO 35PIH, AEG ECO 50PIH, AEG ECO 70PIH, AEG ECO 85PIH.
  • Page 57 DC Inverter Package R32 Duct Type Unit B. Wire routing of unified power supply. Single-phase: AEG ECO 100PIH, AEG ECO 140PIH A. Wire routing of separated power supply for single phase.
  • Page 58 DC Inverter Package R32 Duct Type Unit B. Wire routing of unified power supply for single phase.
  • Page 59 DC Inverter Package R32 Duct Type Unit Three-phase: AEG ECO 100PIH3, AEG ECO 140PIH, AEG ECO 160PIH3. A. Wire routing of separated power supply for three phase.
  • Page 60 DC Inverter Package R32 Duct Type Unit Only for AEG ECO 160PIH3:...
  • Page 61 DC Inverter Package R32 Duct Type Unit B. Wire routing of unified power supply for three-phase.
  • Page 62 DC Inverter Package R32 Duct Type Unit Only for AEG ECO 160PIH3:...

  • Page 63: Check After Installation

    DC Inverter Package R32 Duct Type Unit 3.4 Check after Installation Check Items after Installation. Possible events due to improper installation Check items Is the main body installed The unit may fall down, vibrate or produce securely? noise. Did you do water leakage test? Cooling capacity may become unsatisfactory.

  • Page 64: Installation Of Controller

    DC Inverter Package R32 Duct Type Unit (4) If there’s sound of liquid shock when the compressor is running, then stop the air conditioner immediately. Wait until the electric heating belt is heated enough, and then restart the air conditioner. (5) Feel the air flow of the indoor unit to see if it is normal.

  • Page 65: Maintenance

    DC Inverter Package R32 Duct Type Unit 5 Maintenance 5.1 Failures Not Caused by Faults of the AC (1) If your air conditioner fails to function normally, please first check the following items before maintenance: Problem Cause Corrective measure If you turn off the unit and then immediately turn it on, in order to protect the compressor and Please wait for a while.
  • Page 66 DC Inverter Package R32 Duct Type Unit (2) The following situations are not operation failures. Problem Time of occurrence Cause If the unit is running under Mist comes from high humidity, the wet air in During operation. the air conditioner. the room will be quickly cooled down.

  • Page 67: Error Code

    DC Inverter Package R32 Duct Type Unit NOTE: Check the above items and adopt the corresponding corrective measures. If the air conditioner continues to function poorly, please stop the air conditioner immediately and contact ArgoClima authorized local service center. Ask our professional service staff to check and repair the unit. 5.2 Error Code WARNING! (1) If abnormal things (for example, awful smell) occur, please stop the unit...
  • Page 68 DC Inverter Package R32 Duct Type Unit Number Error code Error ODU memory chip error Electric box sensor error Compressor overload protection Overload IPM protection DC fan error Driver out-of-step protection Pfc protection Startup failure Compressor phase-sequence protection Power protection IDU and ODU unmatched 4–way valve switch-over error Driver reset protection...

  • Page 69: Unit Maintenance

    DC Inverter Package R32 Duct Type Unit Number Error code Error ODU jumper cap error Phase-loss and anti-phase protection ODU error, for specific error please see the status of ODU indicator Emergency Stop(Fire alarm) NOTE: When the unit is connected with the wired controller, the error code will be simultaneously shown on it.
  • Page 70 DC Inverter Package R32 Duct Type Unit 5.3.2 Heat Exchanger of Outdoor Unit Conduct cleaning for the heat exchanger of outdoor unit periodically, clean it once at least in every two months. Clean the dust and sundries on the surface of the heat exchanger with dust collector and nylon brush, if there’s compressed air source;...

  • Page 71: Notice On Maintenance

    DC Inverter Package R32 Duct Type Unit 5.4 Notice on Maintenance 5.4.1 Information on Servicing The manual shall contain specific information for service personnel who shall be instructed to undertake the following when servicing an appliance that employs a flammable refrigerant. 5.4.1.1 Checks to the Area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
  • Page 72 DC Inverter Package R32 Duct Type Unit explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
  • Page 73 DC Inverter Package R32 Duct Type Unit 5.4.1.9 Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
  • Page 74 DC Inverter Package R32 Duct Type Unit 5.4.3 Repair to Intrinsically Safe Components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
  • Page 75 DC Inverter Package R32 Duct Type Unit this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.
  • Page 76 DC Inverter Package R32 Duct Type Unit (2) Isolate system electrically. (3) Before attempting the procedure ensure that: 1) Mechanical handling equipment is available, if required, for handling refrigerant cylinders. 2) All personal protective equipment is available and being used correctly.

  • Page 77: After-Sales Services

    DC Inverter U-match Series Duct Type Unit 5.4.10 Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.
  • Page 78 REGULATION (EU) No. 517/2014 - F-GAS The unit contains R32, a fluorinated greenhouse gas with global warming potential (GWP) = 675. Do not release R32 into the atmosphere. AEG ECO 35PIH Kg. 0,78 = 0,53 Tonn CO 2 equiv. AEG ECO 50PIH Kg.
