Quick Start Guide
EVB9S12NE64 Demo
Quick Start Guide

Introduction and Default Settings

This kit and guide contains everything you need to get started. You will connect the board to your PC, run
the pre-programmed Startup Demo, install the correct version of CodeWarrior, and load and play the
demo game, called "The Connector." Source code for both demos and the Serial Monitor are provided on
the MC9S12NE64 Resource CD.
and all default settings of the EVB9S12NE64 evaluation board. These settings are necessary for the
pre-programmed Startup Demo to work properly. Please refer to the EVB9S12NE64 User's Guide on the
MC9S12NE64 Resource CD provided for information on other configurations, other ports, etc. Black
blocks indicate "on" positions of jumpers or switches. All diagrams in this guide are oriented with the PWR
JACK, in the upper left hand corner. All other ports are open (no jumpers). The board comes with the
default settings already set. You may check the settings or continue.

Connect the EVB9S12NE64 to your computer and apply power

1. Connect one end of the Crossover Ethernet cable provided to the J1 Ethernet Connector of the
EVB board. Connect the other end to the Ethernet port of your host PC.
2. Connect the 9-pin serial cable provided to the COM1 port of the EVB board. Connect the other end
to a COM port on your host PC.
3. There are two ways to apply power to the EVB: via the power jack or the power port. Refer to the
EVB9S12NE64 User's Guide about using the power port. Otherwise, plug the wall plug power
supply provided into a power outlet and install the barrel connector into the PWR JACK on the EVB
board. If you are not using the original adapter supplied, please refer to the specs in the diagram
above for the PWR JACK.
4. Set the EVB board RUN/LOAD switch to the RUN position.
5. Turn the PWR_SW switch ON. The +V, +3.3V, and +5V LEDs should come on. Either LED1 or
LED2 (not both) should turn on as well, indicating that you are in Test1 of the Startup Demo.
© Freescale Semiconductor, Inc., 2004. All rights reserved.

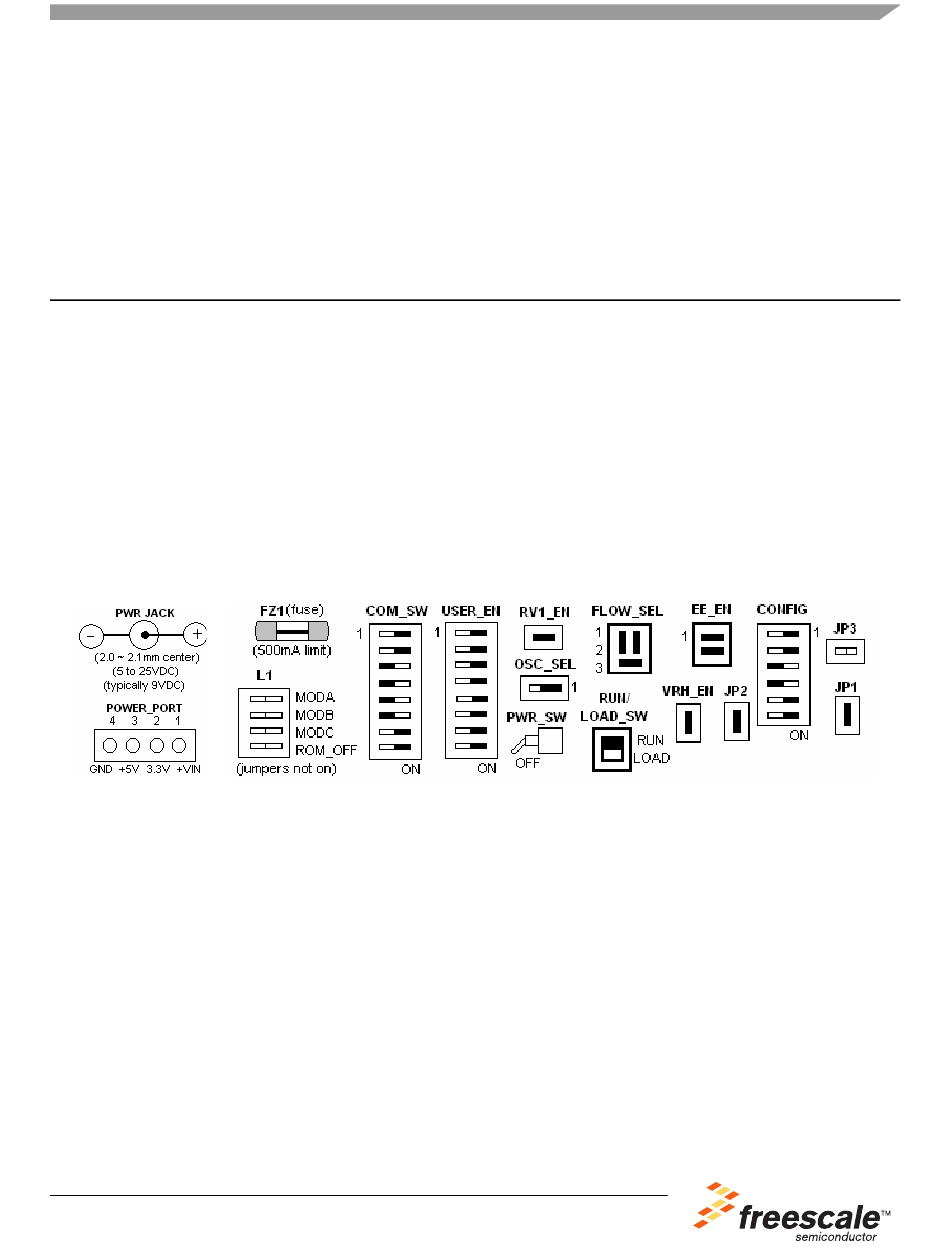

Figure 1 contains diagrams of the power jack and port, the fuse (FZ1),
Figure 1. Default Settings for EVB9S12NE64
Rev. 0.1, 06/29/2004
