Phillips Screwdriver & Adjustable Wrench (Not Included)
 This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling and
using the appliance.
 Keep this manual for future reference.

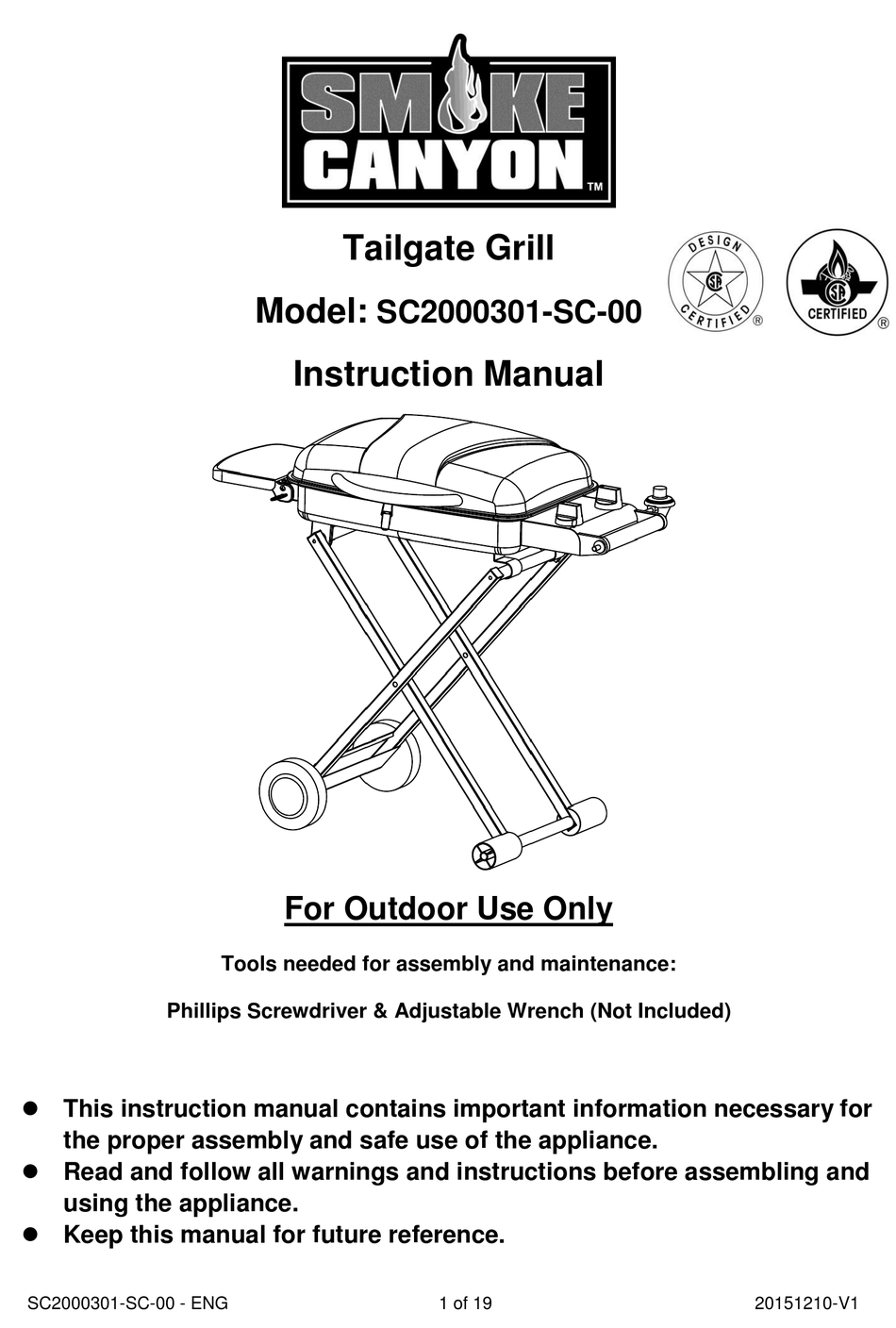

SC2000301-SC-00 - ENG
Tailgate Grill
Model:
SC2000301-SC-00
Instruction Manual
For Outdoor Use Only
Tools needed for assembly and maintenance:
1 of 19
20151210-V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMOKE CANYON SC2000301-SC-00 and is the answer not in the manual?

Questions and answers

Related Manuals for Rankam SMOKE CANYON SC2000301-SC-00

Summary of Contents for Rankam SMOKE CANYON SC2000301-SC-00

  • Page 1 Tailgate Grill Model: SC2000301-SC-00 Instruction Manual For Outdoor Use Only Tools needed for assembly and maintenance: Phillips Screwdriver & Adjustable Wrench (Not Included)  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. ...
  • Page 2 DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open Lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.
  • Page 3 Please read Safety and Precaution statements, Grill Maintenance, Leak Testing, Regulator/ Cylinder connection and Lighting Instructions before using grill the first time. Safety Symbols The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual. DANGER Danger: Indicates an imminently hazardous situation which, if not avoided, will result in serious injury or death.

  • Page 4: Lp Gas Cylinder

    of the appliance, and the appliance shall not be located or used under overhead unprotected combustible materials. This appliance is for outdoor use only and should only be operated in a  well-ventilated space. Never operate in an enclosed space, garage or building. This appliance is not intended for commercial use.
  • Page 5 This appliance is designed to operate with a one  pound 7.75” or 10.6” high disposable / 16.4 oz. or 14.1 oz. propane gas cylinder (DOT 39 Cylinder) Do not attempt to refill any disposable propane gas  cylinders. The cylinder must be installed, transported and ...

  • Page 6: Before Testing

    Periodically check the whole system for leaks following the procedures listed below. If the smell of gas is detected at any time you should immediately check the entire system for leaks. BEFORE TESTING  Make sure that all packing material is removed from the grill including the burner tie-down straps.

  • Page 7: Product Diagram

    Product Diagram SC2000301-SC-00 - ENG 7 of 19 20151210-V1...

  • Page 8: Component List

    Component List 1. Lid Handle 2. Lid Handle Bracket 3. Grill Body Assembly 3a: Grill body with hose regulator assembly - 1 pc 3b: Grill lid – 1pc 3c: Legs – 1set 3d: Control knob – 2pcs 1 pc 2 pcs 3e: Lighting rod –...
  • Page 9 11. Plastic Leg Base 2 pcs Hardware List Item No. Item Name Diagram Qty. Wheel Bolt 2 pcs M10 Washer 2 pcs M6 * 15mm Bolt 4 pcs M6 Washer 4 pcs M6 * 55mm Bolts 2 pcs Cotter Pin 4 pcs SC2000301-SC-00 - ENG 9 of 19...

  • Page 10: Assembly Procedures

    Assembly Procedures Step 1. Take out the Grill Body (3) from the packing box and keep the grill body in folded position. Loosen the screws on legs as following. Insert these screws through the center hole of the Plastic Leg Base(11) and tighten them firmly. Screws on legs Step 2.
  • Page 11 Step 3. Unfold the Grill as per following figure. Step 4. Attach Side Table (7) to Grill Body by using 4 pcs of M6x15mm Bolt (#C) and M6 Washer (#D). #C + #D #C + #D #C–M6x15mm Bolt x 4 pcs #D –...
  • Page 12 Step 5. Insert M6x55mm Bolts (#E) through the Lid Handle Brackets (2) and Lid Handle (1). Tighten the the Handle firmly. #E - M6x55mm Bolt x 2 pcs Step 6. Place the Flame Tamer (6) over the burners and use 4 pcs of Cotter Pins (#F) to maintain the Tamers position.
  • Page 13 Step 7. Place the Cooking Grates (4 and 5). 4 and 5 Step 8. Attach the Oil Drip Tray (10) under the Grill Body. Assembly is completed!!! Before Cooking for the First Time Operate grill 15 minutes with grill lid closed and gas control on HIGH. This will heat-clean internal components and eliminate odor of oil in grill.
  • Page 14 Unfold Grill Note: Unlock the latch before unfolding the legs Fold Grill WARNING Propane Gas Cylinder MUST be detached from regulator before folding the grill  DO NOT fold the grill or move the grill immediately after cooking. Wait for the grill to cool ...

  • Page 15: Lighting Instructions

    Fold / Unfold Side table Pull the latch Pull the latch Lighting Instructions 1. Read all instructions before lighting 2. Open lid during lighting 3. Make sure the propane gas cylinder is tightly threaded into the regulator (hand tighten only). 4.

  • Page 16: Turning Grill Off

    CAUTION If burner does not light OR if burner flame is accidentally extinguished, turn control knob on regulator to OFF, wait 5 minutes, try again. If the burner does not ignite with valve open OR if burner flame is accidentally extinguished after lighting, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

  • Page 17: Flame Characteristics

    WARNING Natural Hazards -Insects and Spiders A clogged tube can lead to a fire beneath the appliance. During shipment or storage, it is possible that small Insects and spiders could find their way into the venturi tubes and make nests or webs. This could block the flow of gas through the venturi tube causing a smoky, yellowish flame, or prevent a burner from lighting.
  • Page 18 Should you encounter any problem, need assistance with assembly, have questions about this product or have missing or defective parts, Please contact Customer Service at Rankam Metal Products Manufactory Limited 1-888-837-1380 Monday thru Friday 8 A.M. to 5 P.M. Western Standard Time or by email customerservice@rankam.com...
  • Page 19 All parts to be replaced will need to be shipped before replacement items will be sent. Follow the Customer Service Representative’s instructions exactly. If a return is necessary, it must be packed carefully and shipped prepaid. Rankam Metal Products Manufactory Limited 1618 W. Rosecrans Ave., Gardena, CA90249...
