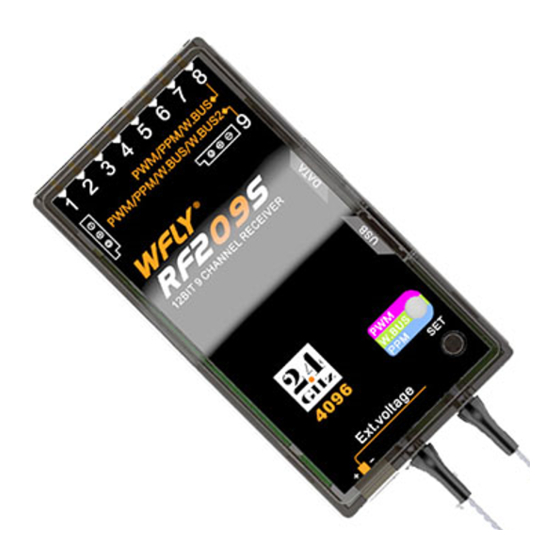

Wfly RF209S Manual

RF209S
Link: Charge the receiver then press and hold "SET" button for 3
seconds, wait for the link instruction after the orange light flashes slowly.
Mode select:
1 Receiver setting way, press the "SET" to charge, then enter into model
setting, gently click the "SET" into switcher mode, press and hold "SET" to
confirm .
2 Transmitter setting way , please carry out in [Linkage setting]-
[Receiver output] under the normal communication state of transmitter
and receiver .After setting, return to the superior menu and save the
setting (the receiver light color would be changed).
MODE
Purple
Green
WORK
Orange
Purple
SET Green
PPM/PWM/W.BUS/W.BUS2
PPM/W.BUS
CH1~7:PWM
Red line to the positive pole
1Ω resistor to the negative
Summary Manual
LED Action
Never
Never
Blue Never
Never
Red
Slow flash
Slow flash
Slow flash
Slow flash
Blue Slow flash
W.BUS normal work mode
USB port Status light
Status
PWM normal work mode
PPM normal work mode
No signal
Low voltage
Linking
PWM mode
W.BUS mode
PPM mode
Link key
External voltage
inspect port
Signal
Positive
Negative
