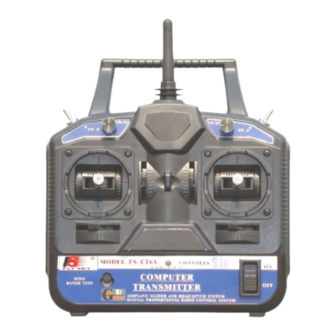

Wfly Fly Sky User Manual

Ar aerocraft transmitter
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

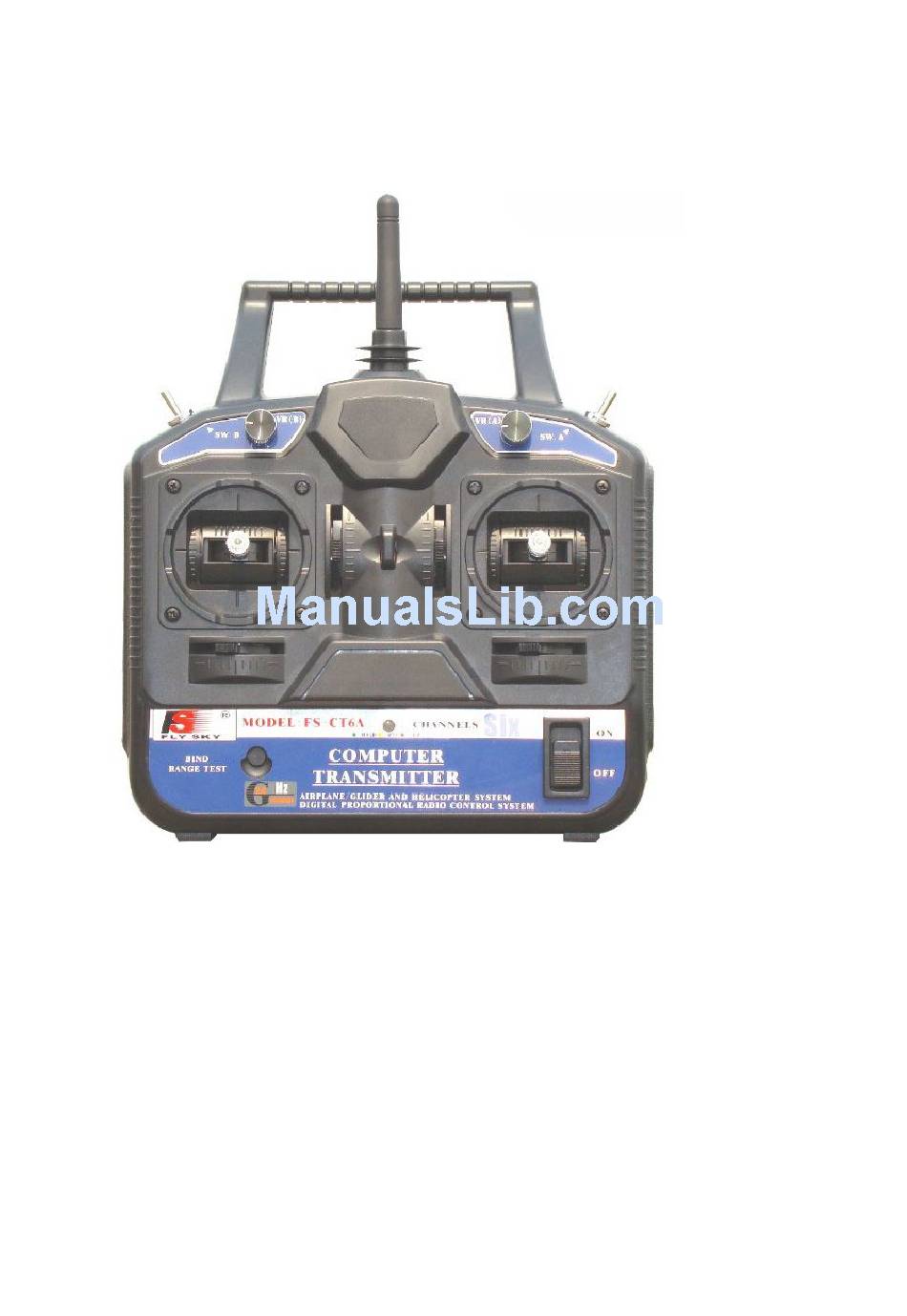

I. Fly Sky Transmitter&Receiver Board
1. First fix the receiver board on a suitable position of AR aerocraft,connect the plug with the interface
of AR aerocraft main board.(be attention about the direction).Make sure they are connecting steadily,if
not ,the signal can't transmit.
2. Turn on the power of transmitter,notice that left and right joysticks must be in a center position.The
switch of SW.A and SW.B shold shift to the reverse side of transmitter,turn the VR(A) knob by
clockwise to end,and turn the VR(B) knob by anti-clockwise to end.Following is function of rockers of
both sides:
Left Rocker Up/Down : Throttle(Up/Down)
Right Rocker Up/Down:Elevator(Forward/Backward)
Crabing )
AR Aerocraft Transmitter User Manual
Left Rocker Left/Right:Rudder (Left /Right Flying )
Right Rocker Left/Right: Flap(Left /Right

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fly Sky and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wfly Fly Sky

Summary of Contents for Wfly Fly Sky

  • Page 1 AR Aerocraft Transmitter User Manual I. Fly Sky Transmitter&Receiver Board 1. First fix the receiver board on a suitable position of AR aerocraft,connect the plug with the interface of AR aerocraft main board.(be attention about the direction).Make sure they are connecting steadily,if not ,the signal can't transmit.
  • Page 2 ********** LED means LED lights in bottom of quad motors of AR Aircraft ********** 3.Charge AR aircraft and watch LED, set up:red light long bright, and 4 rotors act slightly in turns,Green light long bright,Orange light flashing,Green light flashing,Green light long bright;Now observe the indicator light (white) of Arduino main board,flashing means normal and get ready to receive instructions(set up time is about 30 seconds,the Green light bright longer before the Orange light flashing, please wait patiently.)
  • Page 3 II.WFLY Transmitter & Receiver Board 1.First fix the receiver board on a suitable position of AR aerocraft,connect the plug with the interface of AR aerocraft main board.(be attention about the direction).Make sure they are connecting steadily,if not ,the signal can't transmit.
  • Page 4 Flight Mode 1, please reverse the CH6 channel according to transmitter user manual. Notice 2: The throttle rocker of WFLY transmitter doesn’t automatically back to center, it has to turn to center position by manual operation if aircraft need to be stable in a height during flying.
  • Page 5 ID of devo is similar as coding of FLY SKY and Wfly. ********** LED means LED lights in bottom of quad motors of AR Aircraft ********** Charge AR aircraft and watch LED, set up:red light long bright, and 4 rotors act slightly in turns,Green light long bright,Orange light flashing,Green light flashing,Green light long bright;Now...
  • Page 6 Appendix: Set Up AR Airplane Flight Parameters by Transmitter. I. Parameters Setup Combination Flight Parameters Standard(Rock Biggest(Rocker Normal(Rocker Easy(Rocker er Downward) turn Left ) Upward) turn Right) Outdoor Flying Outdoor Main Case Biggest Inclination Angle Highest Vertical 1500 2000 Speed(millimeter/ sec) Fastest Revolving Speed...
