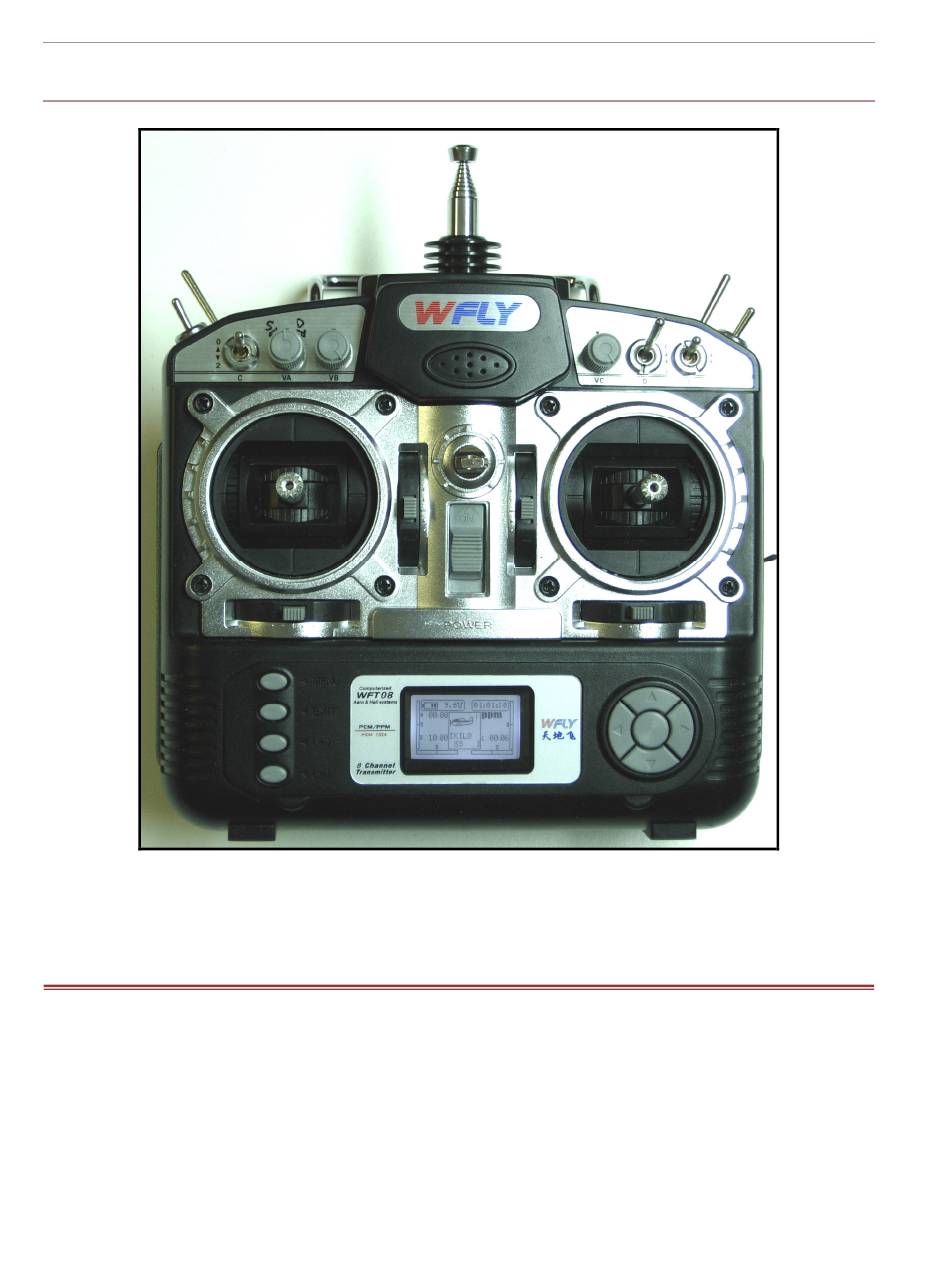

S E T T I N G U P T H E W F T 0 8
FOREWARD
This instruction supplement is not intended to replace the CD-ROM manual that's supplied with
your radio. It is intended to provide guidance on setting up this radio for use with a model
submarine, and to act as a supplement to the original manual. Although this guide will help the user
get the WFT08 configured for use to make the most of the capabilities of the WFT08 it is still up to
the user to read through the supplied CD-ROM manual.
The setup described within is intended to be somewhat generic, but certain assumptions have been
made about the model with which it will be used. These instructions have been written around a
model which has both sternplanes and operable (but non-retracting) bowplanes as may be found
on many KILO, Seawolf, or Skipjack models. Many other combinations are possible and depending
on the users' model some of the functions shown here may not be necessary or may need to be set

Advertisement

loading

Related Manuals for Wfly WFT08

Summary of Contents for Wfly WFT08

  • Page 1 Although this guide will help the user get the WFT08 configured for use to make the most of the capabilities of the WFT08 it is still up to the user to read through the supplied CD-ROM manual.

  • Page 2: Transmitter Programming

    up differently. Although all possible configurations cannot be shown some alternatives have been presented. Because function assignments to specific switches and sticks are also dependant on correctly making connections to the receiver (in conjunction with transmitter programming) this guide also contains sections which describe the necessary receiver signal and power connections.
  • Page 3 3) Use the UP/DOWN keys to navigate to 6.) MODULATION SETTING, then press OK. If your modulation setting is already set to PPM press EXIT button to leave the setting unchanged and skip to the next step. Otherwise press UP to select PPM, then press OK. Use the RIGHT button to select OK in the confirmation screen and press the OK button.

  • Page 4: Receiver Connections

    RECEIVER CONNECTIONS In order for the programming made above to control the correct functions/surfaces on your model a matching set of servo connection must also be made at the receiver. Figure 2 shows these connections for a fully-featured model with Snort, bowplanes and torpedoes, while Figure 3 shows the connections for a minimum-configuration model.

  • Page 5: Power Connections

    shown in the Power Connections section) by unplugging the ESC and replacing it with a 4.8V (4-cell NiCd or NiMh) battery pack. This can be useful for figuring out the appropriate servo reverse and travel limits for each channel. (Remember those can be accessed in the NORMAL SETTING page accessed by pressing the MENU button after the transmitter is turned on.) POWER CONNECTIONS Before being installed in your SubDriver...

  • Page 6: Transmitter Functions

    TRANSMITTER FUNCTIONS When configured to the “full featured” setup (as shown in Figure 2) the controls on your WFT-08 will behave as shown below in Figure 5. FIGURE 5 If on the other hand you followed the “minimum configuration” (as shown in Figure 3) your transmitter’s functions will be as shown below in Figure 6.
