Summary of Contents for Wfly WFT06II
- Page 2 Preface Vote of Thanks Thank you for buying WFLY products. The WFLY300 is the latest technology in Rotary RC models. Please read this manual carefully before assembling and flying the new WFLY300 helicopter. We recommend that you keep this manual for future reference regarding tuning and maintenance.
- Page 3 Big size LCD display Native 2.4G Flaspeed technology. Direct drived from MCU to enable high speed control. DSSS+frequency hopping system brings great anti-interference performance. 60 pcs of Wfly transmitters can be working together at the same time. Low voltage design for less power consumption. Compatible with variety types of battery: Alkaline 4S, NIMH 4S, NICD 4S, LiPo 1S and etc.
-
Page 4: User Manual
Product Configuration Please carefully check the content accessories with below check list. Contact your retailer for help if something is missing Caution WFR06 Receiver WFT06II Transmitter Battery compartment Neck Strap User manual... - Page 5 Contents Preface product description transmitter / receiver product configuration Packing list safty warnings Product diagram Front/ Back / Parts/ switchs Basic operation Edit keys / Display operation and adjustment Initial setup A Back to factory default B choose model number C choose model type D choose power supply E - training /simulator mode...
- Page 6 FLYING SAFETY WARNINGS Special Symbol Instruction Caution To use the product safely, please pay attention to the instruction as follows. Please pay special attention to the symbol as follows: Dangers：If you use it without proper operation, it is possible to hurt you seriously or may even cause death.

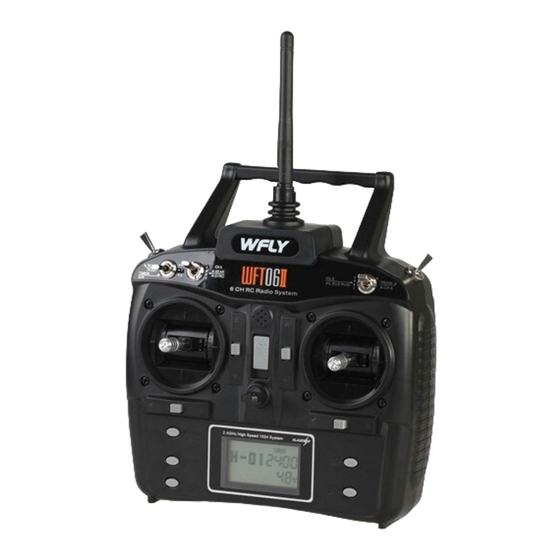

- Page 7 Product view Front view Antenna Switch 5 Buzzer Switch 2 Power switch Switch 1 Switch 4 Switch 3 CH 5 TH.HOLD A:GEAR IDLE TRAIN TH.CUT H:GYRO AIL/ELE/RUD A:CH 6 TIMER 6 CH RC Radio System Throttle trim Elevator Trim Aileron / Throttle stick Rudder Elevator stick Aileron Trim Neckstrap attachment...
-
Page 8: Basic Operation
Basic operation Edit buttons Menu Button: Power on to enter stand by interface. Press and hold Menu button, enter system setting interface. In the system setting interface, press menu to switch to the next function setting. Press and hold the menu button to return to stand by interface. - Page 9 Basic operation Basic operation When you want to browse or change a current setting of the transmitter, please follow the procedure as below, 1, press and hold menu button for 1 second to enter setting mode, the screen will show Menu REVR01 Initial interface Parameter setting mode Sub trim mode 2, Press Menu button, Item name will be changed according to the sequence, press until your tatended...
- Page 10 Basic operation Initial setup A Factory default Press and hold Menu button After SYS being displayed Press up button switch to to enter setup. Press Menu for one second, it will shows REST to reset, press down button 15 times. the model number button to confirm When Sure blinking, press...
- Page 11 Basic operation Initial setup C- choosing model Press +/- to select Heli Under SYS16 Press Up ACRO means airplane button switch to Model selection. ●Menu display: SYS 16 (helicopter mode) - HELI/ACRO ●Function: Model parameter model selection ●Function description: This transmitter support helicopters and airplane, you can select according to your model.
- Page 12 Basic operation Initial setup E Training/Simulator ●Menu display: TRSI 18 (Helicopter mode) NOR / TRA / SIMU ●Function: Training / Simulator Normal/Training mode / Simulator mode ●Function description: 1 NOR: Normal mode, RF 2.4Ghz working normally, can not work as a trainer but can be work as a trainee. 2 TRA: when this transmitter work as a trainer, the other transmitter work as a trainee through a training cable.
-
Page 13: Coding
Basic operation Initial setup H- Coding ●Menu display: COD 21 (helicopter mode) ●Function: Coding ●Function description: this transmitter is 2.4G DSSS+hopping system, with high anti-interference performance. It is assigned with unique Address code, you need to coding with the compatible 2.4G receivers. -
Page 14: Table Of Contents
Helicopter REVR ---------- - - - - - - - - --------- >> Reverse >> EPA setting ---------- - - - - - - - - --------- ---------- - - - - - - - - --------- >> D/R setting SUBT ---------- - - - - - - - - --------- >>... -
Page 15: Revr Reverse
Helicopter 01-REVR channel, use UP/DOWN NOR/REVR, use +/- to button to change change ●Function description Reverse setting function can be used to adjust the action direction of the channel, change the direction from normal to reverse. For Helicopters, please set the servo's direction before setting other parameters. For Airplane and gliders, please set the servo's direction after other parameters being adjusted. -
Page 16: R D/R Setting
Helicopter 03-D/R/EXPO Y output Y output Y output 120% 100% X stick position X stick position X stick position Default EPA biggest EPA EPA in small range ●Function description Both this two functions are to set 2 different value and use specific switch to activate. DR is using on Aileron elevator and rudder's control ratio, the bigger the ration, the greater the action. -
Page 17: Subt Sub Trim
Helicopter 04- SUBT sub trim ●Function description: When the trim setting is not able to achieve the necessary setting, use can use this function to further adjust the value. Please put all the TRIM in the center position to use Sub trim function. ●Setting method 1, choose SUBT 04 under setting mode 2, press UP/Down to select the CH need to be adjusted... -
Page 18: Hold Throttle Hold
Helicopter 06- HOLD Throttle hold ●Function description: During landing, use throttle hold function to fix the throttle at a low level. The range of the throttle normally set between -75% to +75%. For safety reason, when tuning the plane or helicopter on the ground, the throttle POS need to be set to -75%, and hold the throttle, to avoid any mis-operation. -
Page 19: Time Timer
Helicopter 08 Time (timer) ●Function description: Timer is to allow the transmitter to alarm before your plane or helicopter exhaust the power. The largest setting is 99 minutes and 59 seconds Control method: timer ON/OFF, Throttle upper limit, throttle lower limit. Setting, TM to set minutes, TS for second, SW for switch control, THR↑for throttle upper limit, THR↓... -
Page 20: Ith Idle Throttle Curve
Helicopter 10- I TH (Idle throttle curve) ●Function description NTH Normal Throttle curve and ITH idle throttle curve are for different situation. NTH is for normal situation, ITH is for IDLE situation. Switch K4 on the upper situation is for IDLE on the lower position is for Normal situation. -
Page 21: Gyo Gyro
Helicopter 12 GYRO Sensitivity mix ●Function description This function can be used to adjust the sensitivity of the gyro. 3 modes available in this transmitter, normal, Idle, Hold. The Gyro has the same 3 modes respectively. The greater the ratio is, the more sensitive the gyro, and vice versa. When the servo is shaking or vibrating, that means the gyro sensitivity is too high, try to lower the sensitivity till the servo back to normal. -
Page 22: Ipi Idle Pitch Curve
Helicopter 14 IPI Idle pitch curve ●Function description Use this function to set the pitch curve for idle flying. The curve has 5 editable points. When idle mode is active, the idle pitch curve will optimize the engine and rotor's output. The editable value range is between 0 ~100%. -
Page 23: Sys System Setting
Helicopter 16- SYS【system settings】 ●Please refer to page 11 17- BAT【Battery mode】 ●Please refer to page 11 18- TRSI【Training and simulator】 ●Please refer to page 12 19- STK【Stick Mode (Left right hand)】 ●Please refer to page 12 20- CAIL【Stick Calibration】 ●Please refer to page 12 21- COD【Coding】... -
Page 24: Menu Introduction
Airplane setting menu introduction REVR ---------- - - - - - - - - --------- >> Reverse setting >> EPA setting ---------- - - - - - - - - --------- ---------- - - - - - - - - --------- >>... -
Page 25: Revr Reverse Setting
Airplane 01- REVR【reverse setting】 ●Please refer to page 15 02- EPA【EPA setting】 ●Please refer to page 15 03- D/ R【D/R setting】 ●Please refer to page 16 04- SUBT【SUB trim】 ●Please refer to page 17 05- TSTP【Trim step】 ●Please refer to page 17 06- HOLD【Throttle hold】... -
Page 26: Fler Flap Aileron Mix Control
Airplane 10- FLER (Flap aileron mix control) ●Function description This function is to for aileron to act like flaperon even using two servos on aileron. Due to flaperon, aileron can move up or down accordingly. Aileron differential can also be achieved. AIL 1 ↓... -
Page 27: Adif Aileron Differential
Airplane 12 ADIF aileron differential ●Function description This function is to use to make differential for the aileron on both sides when using 2 servos. AIL1↓ Aileron 1 down AIL1↑ Aileron 1 up AIL2↓ aileron 2 down AIL2↑ AILERON2 up When turning using aileron, you will need more aileron travel on up direction. -
Page 28: Elev Elevator
Airplane 14 ELEV elevator ●Function description This function is for the combination of elevator and aileron, allow the use of delta-wing, Guts-wing, and ailless aircraft. User can adjust the aileron and elevator separately. AIL1 ↓ aileron 1 down AIL1↑ aileron 1 up, AIL2 ↓ aileron 2 down, AIL2 ↑ Aileron2 UP ELE1 Elevator 1 ELE2 elevator 2 ●Setting method, 1, select ELEV 14 under setting mode... -
Page 29: Vtal V-Tail Mix
Airplane 16 VTAL (v tail mix control) ●Function description This function is to combine the function of elevator and rudder when using v tail airplane. The travel of elevator and rudder can be adjusted independently. ELE1 elevator 1 ELE2 elevator 2 RUD1 rudder1 RUD2 rudder 2 ●Setting method: 1, select VTAL16 under setting mode 2, press +/- button to switch between ON/OFF, press UP/DOWN to choose the position, press +/- to change... - Page 30 Airplane...
- Page 32 WFLY technology development Co., Limited...
