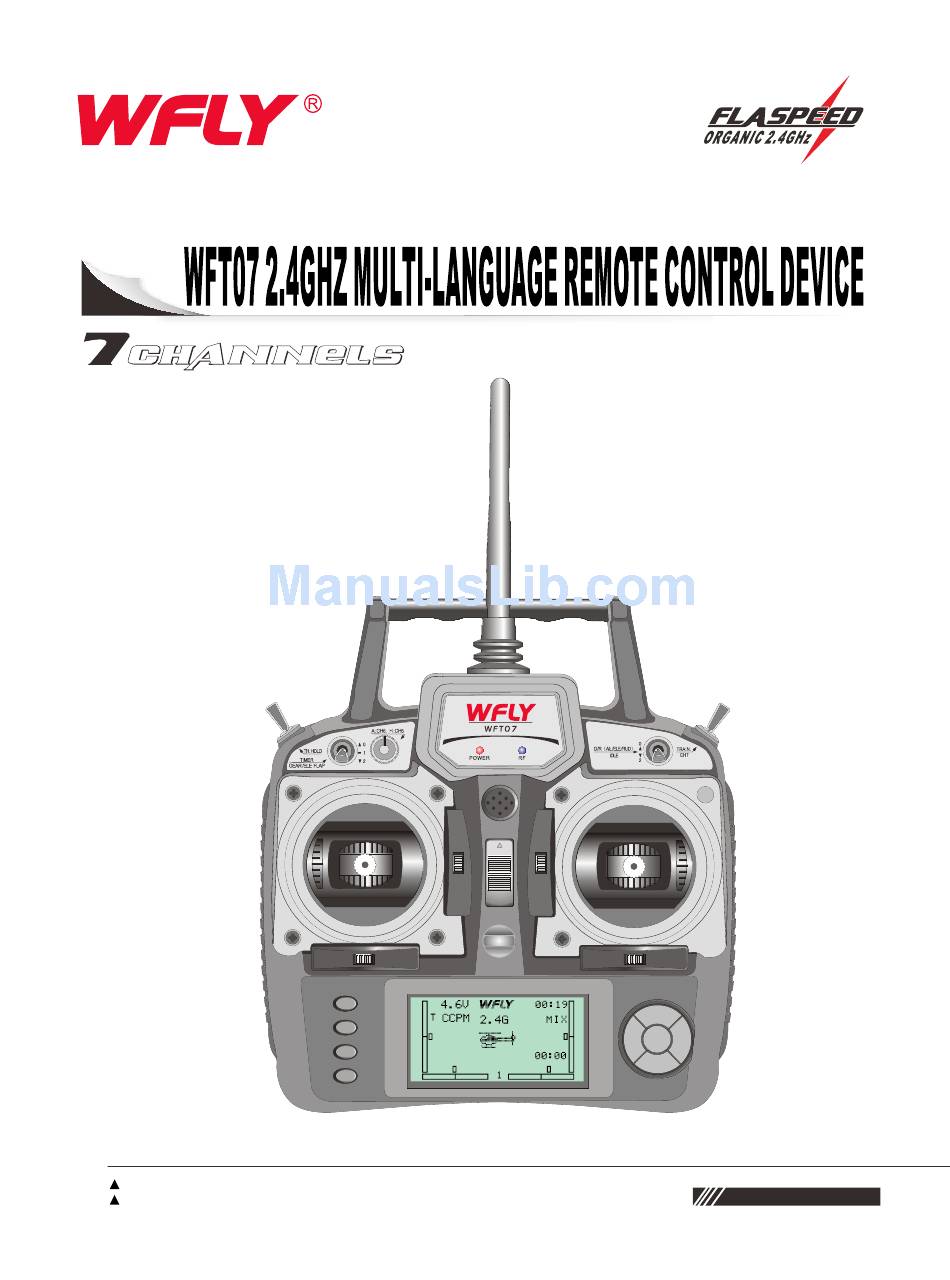

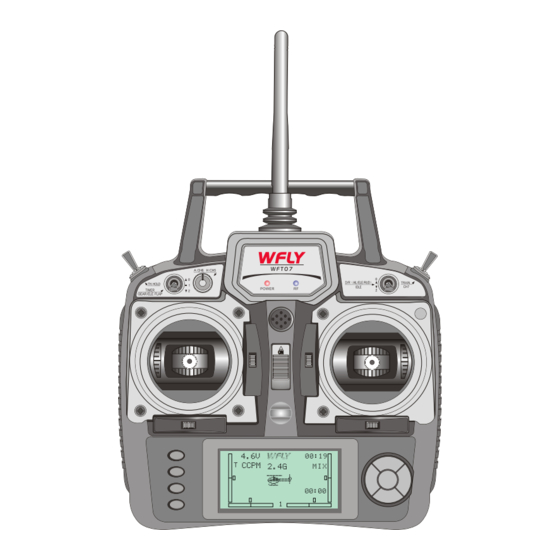

- Page 1 INSTRUCTION MANUAL V1.3 ON ON ON ON Attention Please read the instruction before using the product www.wflysz.com Please keep this manual...
- Page 2 7.Functions design optimized,operation convenience. Service 1.The WFLY warranty the quality of science and technology within a year (WFLY technology to bear the postage, the user must provide a warranty card and proof of purchase,Indispensable). 2.Warranty card and proof of purchase effective by signed and sealed by the seller , and the information must be completed.
-
Page 3: Table Of Contents
WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL CONTENTS WFT07 Remote control device contents WFT07 Remote control device WFT07 RC device parts of the name(front) WFT07 RC device parts of the name( back) Instructions of the 2.4Ghz receiver WFT07 code match instructions Trainer function Special symbal instructions WFT07 RC device characteristics... - Page 4 WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL CONTENTS Advanced settings 1.Speeder mixing 2.Programmable mix setting 3.Fail safe 3.Code match Airplane Functions system settings Input mode and functions 1.Model parameters 2.Model settings 3.Coaching / Simulation 4.Control stick settings 5.Control stick calibration 6.Restore factory settings 7.Tone settings 8.Contrast settings 9.Power supply scheme...
-
Page 5: Wft07 Remote Control Device Contents
2. WFR07S 2.4Ghz receive 1 set 1 Only 3.Simulator switch cable 4.Transmitter 4cell battery case 1 Root 5.Manual 6.WFLY neck strap 1 This/zhang 1 Article WFT07 remote control device diagram ON ON ON ON 1.WFT07 remote control device 2.WFR07S 2.4Ghz receive 3.Simulator switch cable Manual... - Page 6 WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL WFT07 RC device parts of name WFT07 RC device Positive (Right hand throttle) Antenna(rotatable) Power light RF light Buzzer Elevator trim Throttle trim Aileron/ ON ON ON ON Rudder/ throttle stick elevator stick Power switch Neckstrap attachment Rudder trim...
- Page 7 WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL WFT07 RC device parts of name WFT07 RC device back Handle Trainer/DSC Battery cover...
- Page 8 5．GRY： Landing Gear/Gyro (Channel 5)---------- 6．PIT： Pitch (Channel 6)---------- 7．Auxiliary channel (Channel 7)---------- (Note: Any channel can be used as power input) WFLY PCMS receiver can compatible with PCMS 4096, PCMS 1024 and PPM modulation (Adaptive), and have fail safe function.ORGANIC 2.4G...
-
Page 9: Wft07 Code Match Instructions
WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL WFT07 instructions of the code match 1.Remote control device settings ● unction instruction: The remote control for the 2.4G spread spectrum, address identification code information, Before frequency hopping systems, have high anti- use the remote control,pls match the code with the interference. -
Page 10: Trainer Function
The same two remote control devices WFT07 can do the Trainer function: Settings: 1. Using the simulator cable to connect two WFLY equipment. 2. Trainer settings: Press MENU key to boot into the "System Settings" function, enter " Training / simulation "menu,selected the" trainer mode ", (effect after re-boot ). - Page 11 The original 2.4G technology , with data transfer , which greatly improve the handling agility ● Fully explain the fast as lightning. (Note: The is the WFLY exclusive technology). Low-voltage design, lower battery consumption, a variety of battery available:such as 4S alkaline batteries , ●...
-
Page 12: Preferences
※. To enter the edit mode. ※. Press this button long time, the selected item restore the default value 1.WFLY LOGO 2.2.4G RF circuit directed: shown 2.4G under work, closed without the logo. 3. Aircraft models: helicopter mode, shows the helicopter LOGO, airplane mode, shows the airplane LOGO. -
Page 13: Adjustment Of Stick Head
WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL Adjustment of stick head Allen Key Top thread Stick Head Put the stick head cover the control rod on the left and right sides,don't twist down the stick head to the bottom,and then put top thread with allen key to adjust the height Stick you needed. - Page 14 WFT07 REMOTE CONTROL DEVICE INSTRUCTION MANUAL Replacement the throttle of mode 1 or 2 Right-hand man will lose their own free replacement warranty program Bolt 3. Bolt 2. Bolt 1. Bolt 4. Put on the matel Set up release link and chip,according your habit to springer,according your habit adjust the elasticity of screw 3...
-
Page 15: Helicopter Functions
When the power turned on, the interface as shown. In this state, the user can view the machine voltage, time display, model type and aileron, Throttle, elevator, rudder and so on trim state Voltage WFLY Logo RF modulation Time display Trainer function Special mixing... -
Page 16: System Settings
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL Function Menu There are “System settings”,”Preferences”and “Adcanced settings”in this menu. A. System Settings In close state, hold down the MENU key, then turning on the power, you can enter the "System Settings" menu page, the interface as shown. -
Page 17: Model Parameters 1
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL System Settings Menu Introduction 1.Model Parameters ●Function Model parameters function totally have 10 any of them to setting. machines for the user to choose, you can select ●Settings Press the MENU button to boot into the “System The steps of setting is as follows: Settings"... -
Page 18: Control Stick Settings 1
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL ●Settings Press the MENU key to boot into the "System 1, first to use the up / down arrow keys to edit the Settings" menu,use Up / Down arrow keys to selected item. select the "trainer / Simulator", press OK key to 2. -
Page 19: Restore Factory Settings 1
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL 6.Restore factory settings ●Function Reset function is to restore the model all the Comprehensive settings of re-work. data back to the initial default settings, so can do ●Settings Press the MENU key to boot into the "System 1. -
Page 20: Power Supply Scheme 1
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL 9.Power supply scheme ●Function The machine can use a variety of power options: Different battery alarm different low-battery voltage such as ordinary alkaline AA batteries 4S, Ni-MH / , in order to extend battery life, please select the Ni-Cd battery 4S, Li-Ion / Li-polymer battery 1S. -
Page 21: Monitor
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL Introduction of the Parameters Settings Menu 1.Monitor CH 6 CH 1 CH 7 CH 2 CH 3 CH 4 CH 5 ●Function The monitor function is to monitor and confirm the channel operation state. ●Settings In the "Preferences"... -
Page 22: Servo Reverse
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL 4. Settings exponential EX, can change the combinations and settings, with the arrow keys to aileron, throttle and rudder these three channels' select the "EX" in the screen, settings way are same joystick sensitivity near the neutral. -
Page 23: Sub Trim
WFT07 REMOTE CONTROL DEVICE Helicopter Functions INSTRUCTION MANUAL 5.Sub Trim ●Function When the electronic trim can not make the servo ideal angle which user wanted. When set this to achieve a satisfactory angle, be corrected by function , please place the trim in the central the function, can make the servo to reached a location, then start setting ●Settings... -
Page 24: Pitch Curve Settings
