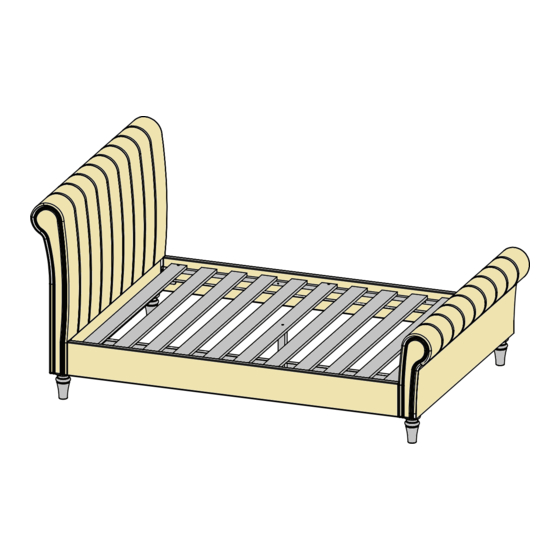

DREAMS WESTCOTT BEDSTEAD Quick Start Manual

IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY.
Parts Identification
1
4
4
Parts Checklist
Ref. Description
1 Headboard
2 Footboard
3 Side Rails
4 Feet
5 Wooden Slat Set
* Only supplied if upgraded sprung slat frame system chosen Legs (8&9) only supplied with sprung system
190308
WESTCOTT BEDSTEAD
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be kept
away from young children during assembly, to avoid the
danger of choking.
5 6
3
3
Qty Ref.
1 6
1 7
2 8
4 9
1
Page 1 of 5
4
2
4
Note:Standard wooden slat frame (part 5)
Upgraded sprung slat frame (part 7)
Description
Wooden Slat Set Support Leg
*Upgraded Sprung Slat Frame*
*Sprung Slat Frame Centre Support Leg*
*Sprung Slat Frame Support Legs*
7
8 9
Qty
1
1
1
2
