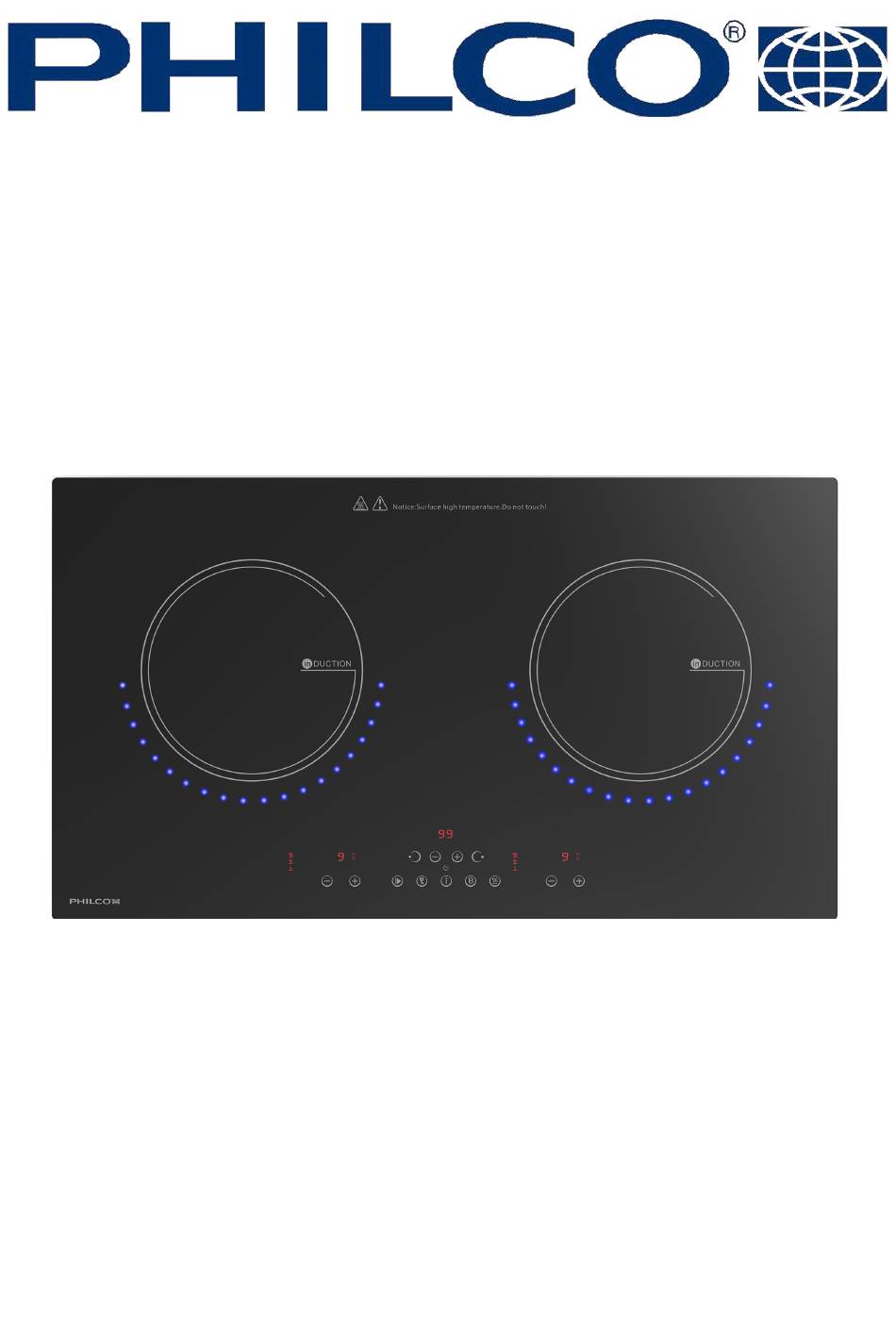

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL:PH2740IC...
-
Page 2: Safety Instruction
Foreword These instructions are for your safety. Please read the following instructions carefully before proceeding with the installation and use of this appliance. Safety instruction WARNING: All installation work must be carried out by a suitably qualified person, strictly following local building regulations and these instructions. WARNING: Read the instructions before using the appliance. - Page 3 WARNING: Before connecting the hob, check that supplied voltage and frequency ⚠ match with that indicated on the appliance rating plate. WARNING – Risk of Fire! ⚠ Do not store items on the cooking surface. Do not use flammable sprays in close vicinity to the appliance. ...
-
Page 4: Recycling And Disposal
could catch fire, shatter, or melt if the hob is switched on by mistake or if residual heat is still present. The rough bases of pans may scratch the hob. Grains of salt, sugar and sand may scratch the ceramic glass. Do not place these ... -
Page 5: Technical Specification
Technical Specification PH2740IC Cooking Hob Cooking Zones 2 Zones Rated Voltage 220-240V~ Rated Frequency 50/60Hz Rear hotplate rated input power 2400 / 2600W booster Front hotplate rated input power 2400 / 2600W booster Total Rated Power 4000W Product Size L×W×H(mm) 710 X 400 X 70 Building-in Dimensions A×B (mm) -
Page 6: Product Overview
Product Overview View of induction hob ② ① ③ ④ Item No Description left hotplate right hotplate Ceramic glass Control panel... -
Page 7: Control Panel
Control panel Key Reference Description Burner selection key ON/OFF key Child lock key Pause key Boost control key Power/Timer regulating key Cooking functions indicator Timer Key... -
Page 8: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. -
Page 9: Choosing The Right Cookware
Choosing the right Cookware Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packagingor on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. -
Page 10: If The Display Flashes
Using your Induction Hob To start cooking 1. Touch the ON/OFF key（B）. After power on, the buzzer beeps once, all displays show “ – “, indicating that the induction hob has entered the state of standby mode. 2. Place a suitable pan on the cooking zone that you wish to use. - Page 11 Atmosphere Lights&apos Function After power on, all the blue atmosphere lights are constantly on. When the correspond ing heating area is working, the corresponding blue atmosphere lights are constantly li ght and dark , all the blue atmosphere lights are off after power off.
- Page 12 Using Child Lock Function • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the OFF control are disabled. To lock the controls Touch the child lock key for 3 seconds.
- Page 13 3. When the time is set, it will begin to count down immediately. The display will show the remaining time， and the dot next to timer indicator will keep on flashing. 4. Buzzer will bips and the timer indicator will turn off when the setting time finished.
-
Page 14: Using The Pause Function
5. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously. 6. When using “the timer as an alarm” and “the timer to switch off the zones ”... -
Page 15: Auto Shutdown Protection
Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off induction hob. The default working times for various power levels are shown in the below table: Power level Default working timer (min) -
Page 16: Setting The Timer To Turn One Or More Cooking Zones Off
Setting the timer to turn one or more cooking zones off If the timer is set on one zone: 1. Select the relevant cooking zone which is working by touching the zone select key (A) 2. Press the Timer key(F), the minder indicator will start flashing “10”, and you can set the timer at this point. -
Page 17: Troubleshooting
Trouble shooting If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Error Error Codes /EN display Error Reasons/Cause What to do unsuitable cooking Use suitable cookware or selectthe utensils have been placed on cookware size depending on the Cannot detect the the cooking zone;... - Page 18 The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact customer service.
-
Page 19: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. The purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat- resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 20 locating the fixing brackets • The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. fig. 4...
- Page 21 Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below Note: The safety distance between the hot plate and the cupboard above the hot plate should be at least 650mm.
- Page 22 7. You consult local building authorities and by-laws if in doubt regarding installation. 8. You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob. When you have installed the hob, make sure that 1.
-
Page 23: Connecting The Hob To The Mains Power Supply
