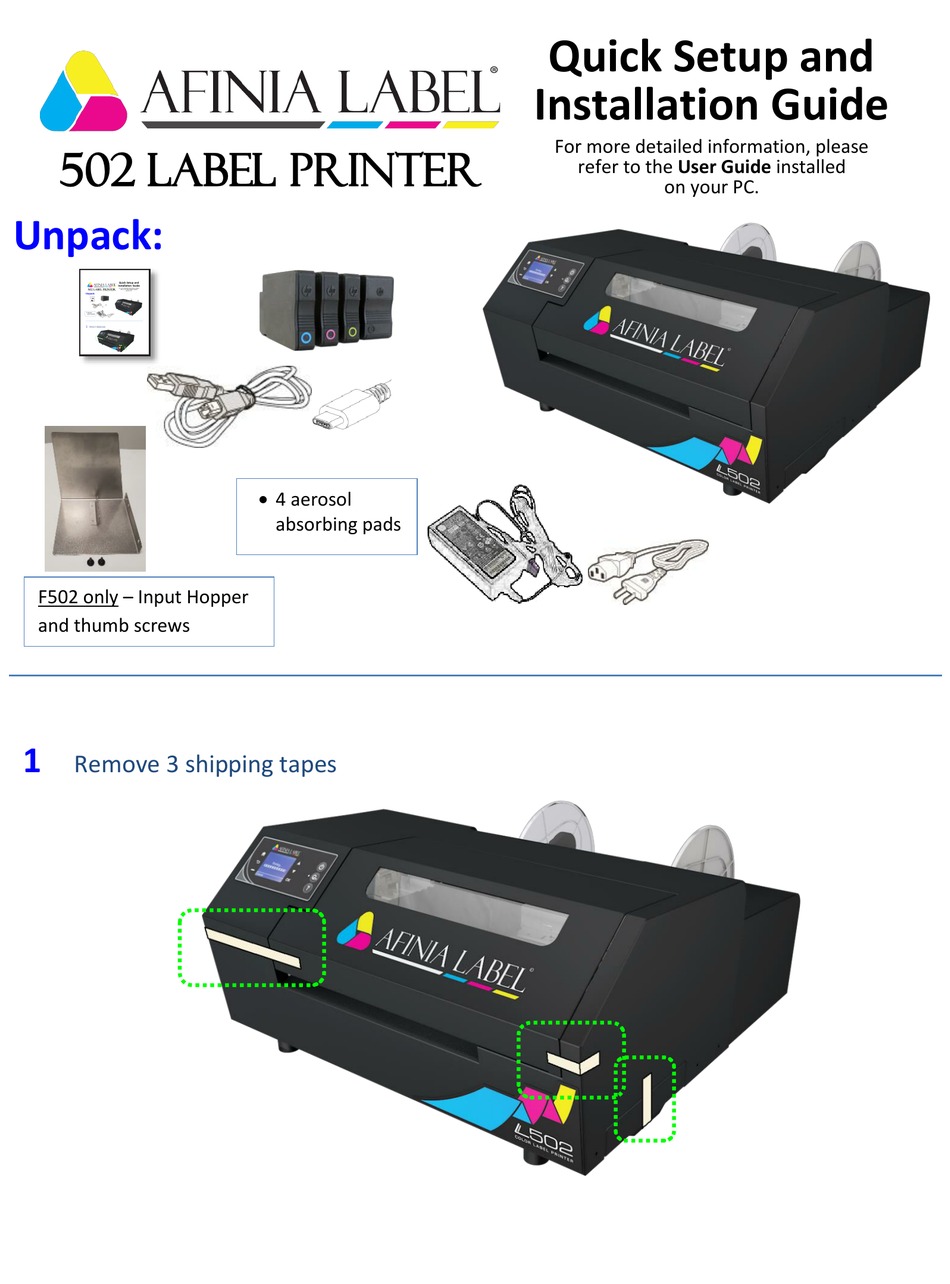

- Page 1 Quick Setup and Installation Guide For more detailed information, please 502 Label Printer refer to the User Guide installed on your PC. Unpack: 4 aerosol absorbing pads F502 only – Input Hopper and thumb screws Remove 3 shipping tapes...
- Page 2 Connect Power Install Ink Cartridges Open Ink Cartridge Access Door Remove cartridges from packaging Press each cartridge into the correct slot until it clicks Left to right: C – M – Y – K Close Ink Cartridge Access Door Install Printer (USB connection) Click USB button For network connection, please see User Manual...
- Page 3 Replace removable plate and Load Media – L502 tighten mandrel knob Loosen Mandrel Knob and remove plate Slide roll onto mandrel up to Insert stock into input slot under the fixed plate label guide and against right side Push stock in until auto-feed begins, then adjust Paper Guide Load Media –...
- Page 4 See “Creating Custom Label Sizes” on page 26 of the User’s Manual For technical questions or support issues, contact Afinia Label Technical Support: PH: 952-556-1608 support@afinia.com www.afinialabel.com/support Please have the Serial Number of your Afinia Label 502 Label Printer available when contacting Technical Support.
