Summary of Contents for AFINIA LABEL LT5C
- Page 1 LT5C Label Printer Installation Guide v1.0...
-
Page 2: Manual Configuration
Manual Configuration Installation Guide (This Manual) This manual describes how to assemble and install the device. Residual Risk This manual describes the map of residual risks that require protective measures by machine installers and users. Setup Guide This manual describes how to connect the printer to a computer and set it up following installation. -
Page 3: About This Manual
About This Manual This manual explains how to install the Label Printer (LT5C). NOTE This manual was created for the people who are installing the product. For information on normal operation, please refer to the User’s Manual. WARNING This equipment uses CR2032 lithium batteries. -
Page 4: Table Of Contents
Table of Contents Manual Configuration ................2 About This Manual ................... 3 Introduction ................5 About the Map and List of Residual Risks That Require Protective Measures by Machine Users and Machine Installers ............ 5 Warnings and Precautions ................ 6 About the Product Warranty ................ -
Page 5: Introduction
Require Protective Measures by Machine Users and Machine Installers Product name: Label Printer (LT5C) Before starting work, carefully read "Label Printer (LT5C Label Printer) Residual Risk", provided as a separate document with the product, and establish safety measures for the users and installation workers. -
Page 6: Warnings And Precautions
Warnings and Precautions Warnings and Precautions Read the provided manuals for your safety before using the product. Cautions Related to Safety WARNING Mishandling due to ignoring this display may cause death or serious injury. CAUTION Mishandling due to ignoring this display may cause personal injury. General Cautions WARNING Do not touch the safety... -
Page 7: About The Product Warranty
Maintenance Manual about how to maintain the product. All rights are reserved by Afinia Label. You must not copy, transfer, translate, etc. the content herein without authorization. You must obtain written permission from Afinia Label before doing any of the above. -
Page 8: Before Installation

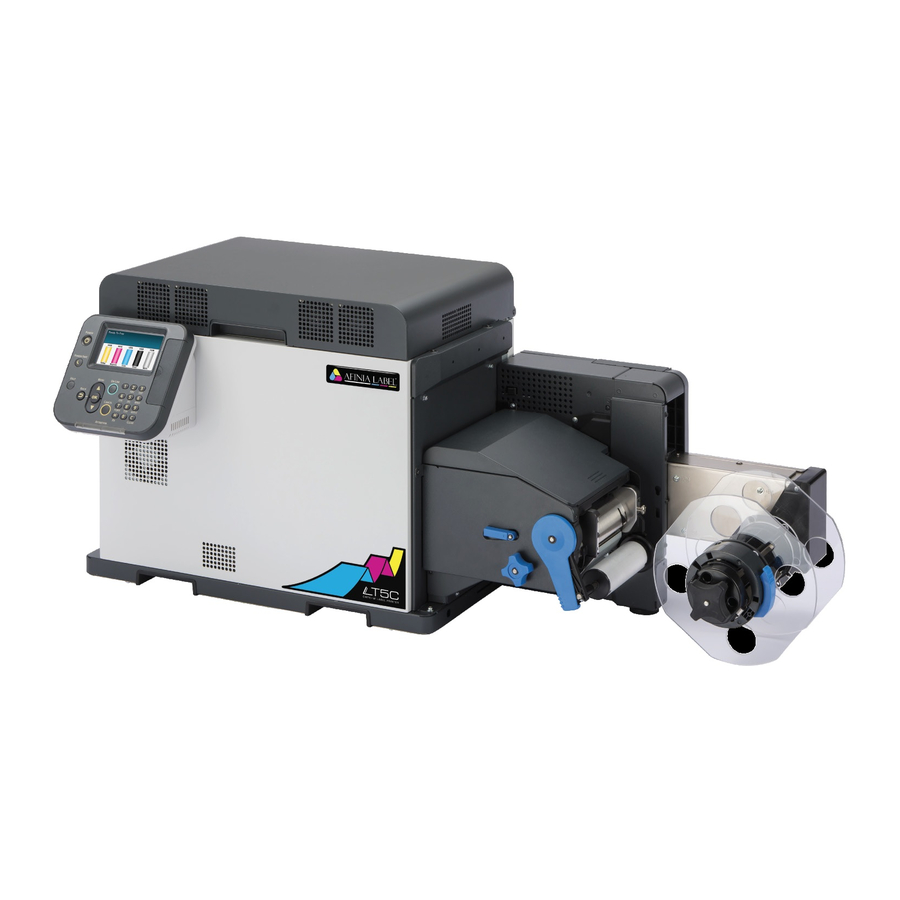

Before Installation Overview of Configuration The equipment is configured of the following units. Label Printer (LT5C) Printer Unwinder Equipment configuration Printer Unwinder - 8 -... -
Page 9: Names Of Parts And Configured Units
Names of Parts and Configured Units Names of Parts and Configured Units The following shows the names of parts and the Inside printer configured units for the equipment. Print cartridge ＊ Printer Belt unit (including waste Top cover Interface toner box) LED heads Paper ejection slot... - Page 10 Names of Parts and Configured Units Unwinder Control Panel Front/right side Unwinder cover Hanger Paper Guide Number Name Function Tension Bar Roll Holder Roll Guide Display Shows the menus and state screen of the machine. In the standby screen, there are two types, the “Supplies Life”...
-
Page 11: Installation
Installation This chapter explains how to open the packaging, remove the printer and the unwinder, and install them. Be sure to carefully read and follow the instructions in this manual before installing the machine. Checking the Product Installers and Manuals Open the packing box and confirm its contents. -
Page 12: Unwinder
Checking the Product Unwinder Unwinder Mounting screws (3) Cable clamps(3) - 12 -... -
Page 13: Confirming The Installation Environment And Location To Install The Machine
Confirming the Installation Environment and Location to Install the Machine Confirming the Installation Environment and Location to Install the Machine For safe and comfortable operations, install the product in a location that satisfies the conditions in Precautions related to installation, Installation Environment, and Installation Space as described below. - Page 14 Confirming the Installation Environment and Location to Install the Machine External Dimensions 477 mm (18.75 in) 1040 mm (41 in) 441 mm (17.35 in) - 14 -...
- Page 15 Confirming the Installation Environment and Location to Install the Machine Installation Space Select an installation location that is level and can support at least 65 kg (143 lbs.)*. * Including the print cartridge and other consumables. Install the machine near a power socket. Also, install the equipment so the power socket is within ...
-
Page 16: Unpacking
Unpacking Unpacking Printer Remove the top layer of packing materials. This section describes how to unpack the machine. Precautions when unpacking the printer CAUTION ① Be sure to use two people to lift the equipment because it weighs about 43 kg (95 lb). ②... - Page 17 Unpacking Remove the handles (4 pieces), and Open out the bottom part of the box, then remove the top of the packing place your hands on the printer's box. handles (2 in front/2 in back) and support the printer as you remove the front and back packing materials on the bottom.
- Page 18 Unpacking Cut and remove the bands that secure Place the printer in the installation the printer. space that you have prepared in advance (see page 15). Note Allow enough space to work when installing the Remove the plastic bag. unwinder.
- Page 19 Unpacking Grasp the top cover lever and open Remove the Pad-TC from the top of the the top cover. print cartridge, and then remove the tape that is securing the lift levers. Pad-TC Tape Remove the holding tape (4 pieces) from the edges of the top cover.
-
Page 20: Unwinder
Unpacking Unwinder Pull out the sheet-protection. This section describes how to unpack the unwinder. Note Sheet-Protection The packing box and packing materials are needed to transport the unwinder. Keep them and do not throw them away. Open the top of the packing box and remove top layer of material Close the top cover. - Page 21 Unpacking Remove the unwinder. Peel off the tape from two locations. Remove the plastic bag from the unwinder, and then remove the accessories. * Refer to the following pages regarding installation to the printer. - 21 -...
-
Page 22: Unwinder Configuration
Unpacking Unwinder Configuration Installing Cable Clamps Configure the unwinder for outside winding or Cable clamps are provided with the unwinder. inside winding, according to the type of roll Use them to run the cable connected to the paper you are using. printer’s interface along the front. -
Page 23: Installing The Unwinder On The Printer
Unpacking Hold the unwinder close to the Installing the Unwinder on mounting pins and mounting hole, and the Printer then press it against the right side of the printer and lower it. After configuring the unwinder, install it on the printer. - Page 24 Unpacking Use three screws to secure the unwinder to the printer. Tighten the screws in order 1, 2, then 3, as shown in the following diagram. Extend the adjuster so it contacts the stand. Note Be careful not to extend the adjuster too far. The unwinder installation is complete.
-
Page 25: Turning On And Off The Power Supply
Turning on and off the Power Supply Turning on and off the Power Supply Precautions about the Do not use extension cords. If you use an extension cord, the drop in AC voltage may Electric Power cause the machine to not operate correctly. If you must use one, use one that is rated WARNING for at least 100 V at 15 A. -
Page 26: Connecting A Power Cord
Power cord Plug the power plug into the power socket. Memo When the machine starts, the Afinia Label logo screen appears on the LCD on the control panel. After a short time, the idle display appears and printing is possible.... -
Page 27: Turning Off The Power
Turning on and off the Power Supply Turning off the Power Press and hold the <POWER> button for approximately 1 second. "Shutting down. Please wait. Printer will turn off automatically." appears on the control panel and the LED lamp on the <POWER>... -
Page 28: Test Printing
Test Printing Test Printing Adjusting Density and Test Press the scroll button ▼ several times, and when [Print Information] appears, Printing press the <OK> button. Load a roll of paper (regular continuous paper, 130-mm wide) on the unwinder. Refer to the "User's Guide" for the procedure to set paper. -
Page 29: Adjusting The Position Of The Sensor
Test Printing Adjusting the Position of the Sensor You need to adjust the positions of the unwinder’s black mark/gap sensors and the printer, according to the media you are using. Refer to the “User’s Guide” regarding how to adjust the positions of the sensors. Printer Black mark/Gap sensor Unwinder... - Page 30 Afinia Label 8150 Mallory Court Chanhassen, MN 55317 Dec 2019 https://www.afinialabel.com...
