Summary of Contents for AFINIA LABEL L901

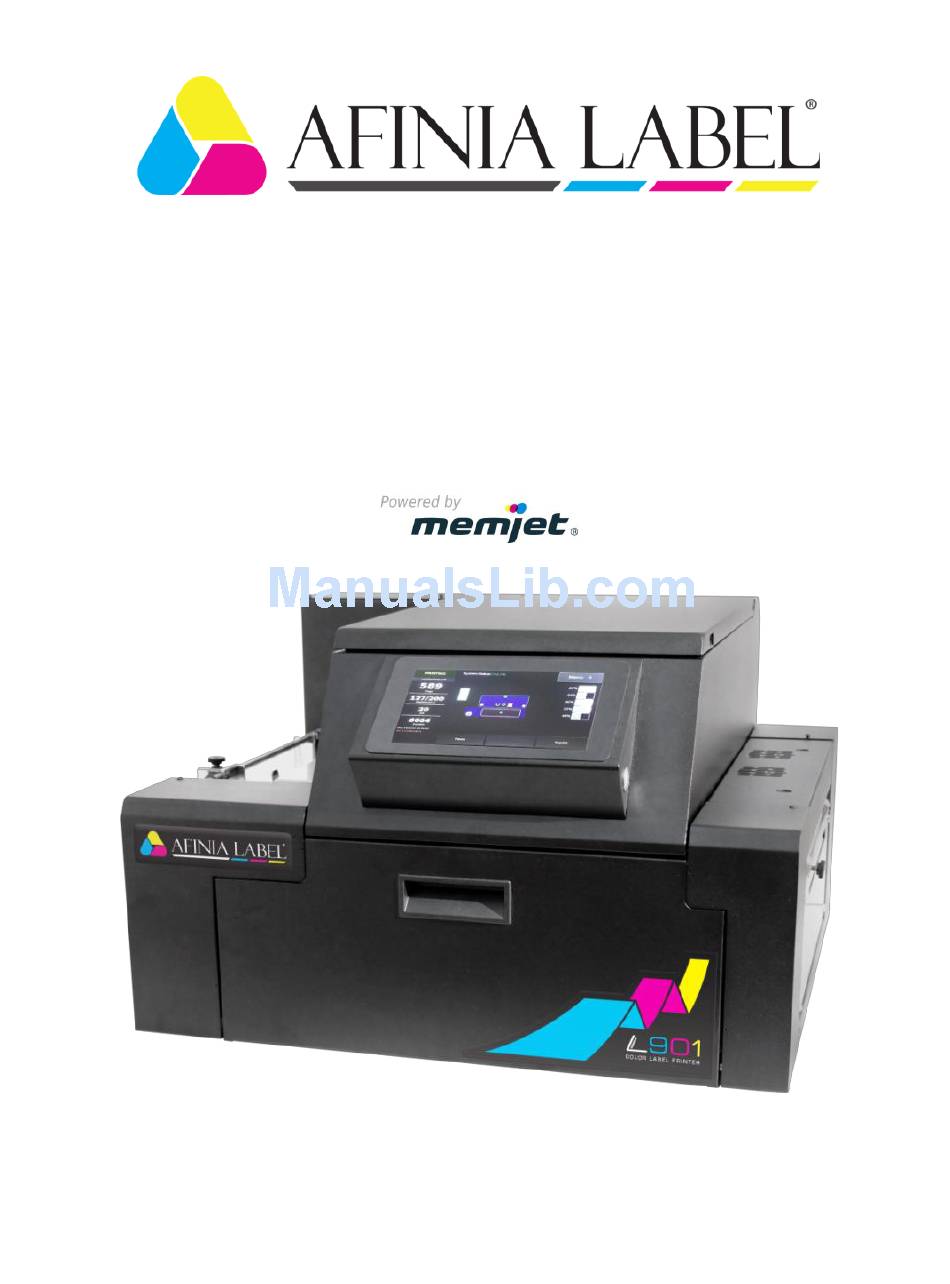

- Page 1 Afinia Label L901 Label Printer Quick Start Guide Ver. 1.1...
- Page 2 Page 2...
-
Page 3: Install Ink Drip Tray Assembly
Step 1 Remove Printer and Accessories from packaging Items included: Printer Network cable USB cable Power cable One ink set (CMYKK) Print head Quick Start Guide Ink Drip Tray assembly Place Printer on a level, stable surface. Make sure Printer is level. Step 2 Step 3 Install Ink Drip Tray Assembly... -
Page 4: Print Driver Installation
Step 4 4. License Agreement. Check “I accept…” then click “Next>”. Print Driver Installation Minimum System Requirements: Operating System: Windows 8/8.1, Windows 10 (Desktop Mode only). Windows 7. Supports 32 and 64 bit systems. Must have administrative privileges on system. NOTE: Windows 8, 8.1 and 10 will only work in desktop mode. -
Page 5: Install Ink Tanks
Step 5 8. Connect Device Now. Turn Printer ON: 1. Press Main Power Switch on Rear Panel. Install Ink Tanks 2. Press Power Button on Control Panel. Printer uses (1) Printhead and (5) Ink Tanks (two Black, one Cyan, one Magenta, and one Yellow). Connect USB cable. -
Page 6: Install Printhead
Step 6 2. Carefully remove Printhead from foil packaging (A) and orange cover (B) Install Printhead Handle Printhead with extreme care to avoid damage. CAUTION Use electrostatic discharge (ESD) protection when handling Printhead. Hold Printhead by handles ONLY. ... - Page 7 6. Close the Top Cover. Confirm the missing For instructions on installing Accessories and Printer set- up or operation, please refer to “Afinia L901 Color printhead message is Label Printer Operator Manual” in Print Driver CD cleared from the touchscreen Status area.
