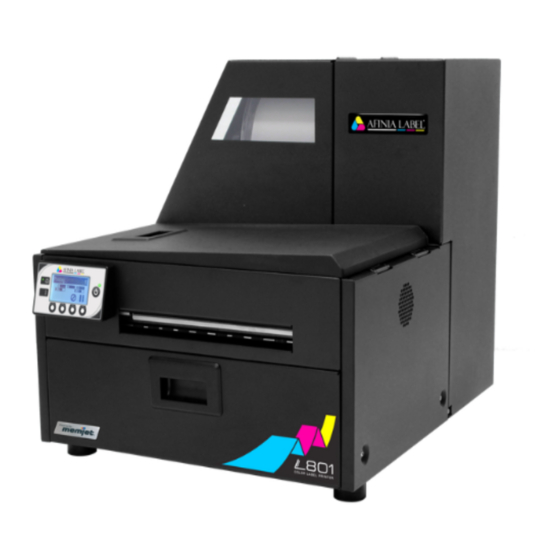

AFINIA LABEL L801 Technical Service Bulletin
  1. Manuals
  2. Brands
  3. AFINIA LABEL Manuals
  4. Label Maker
  5. L801
  6. Technical service bulletin

AFINIA LABEL L801 Technical Service Bulletin

By vivid
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Technical Service Bulletin:
Contained in the following service bulletin we will highlight for the printer operator how to successfully clean
the Goal Post Sensors located in the channel the service station currently sits.

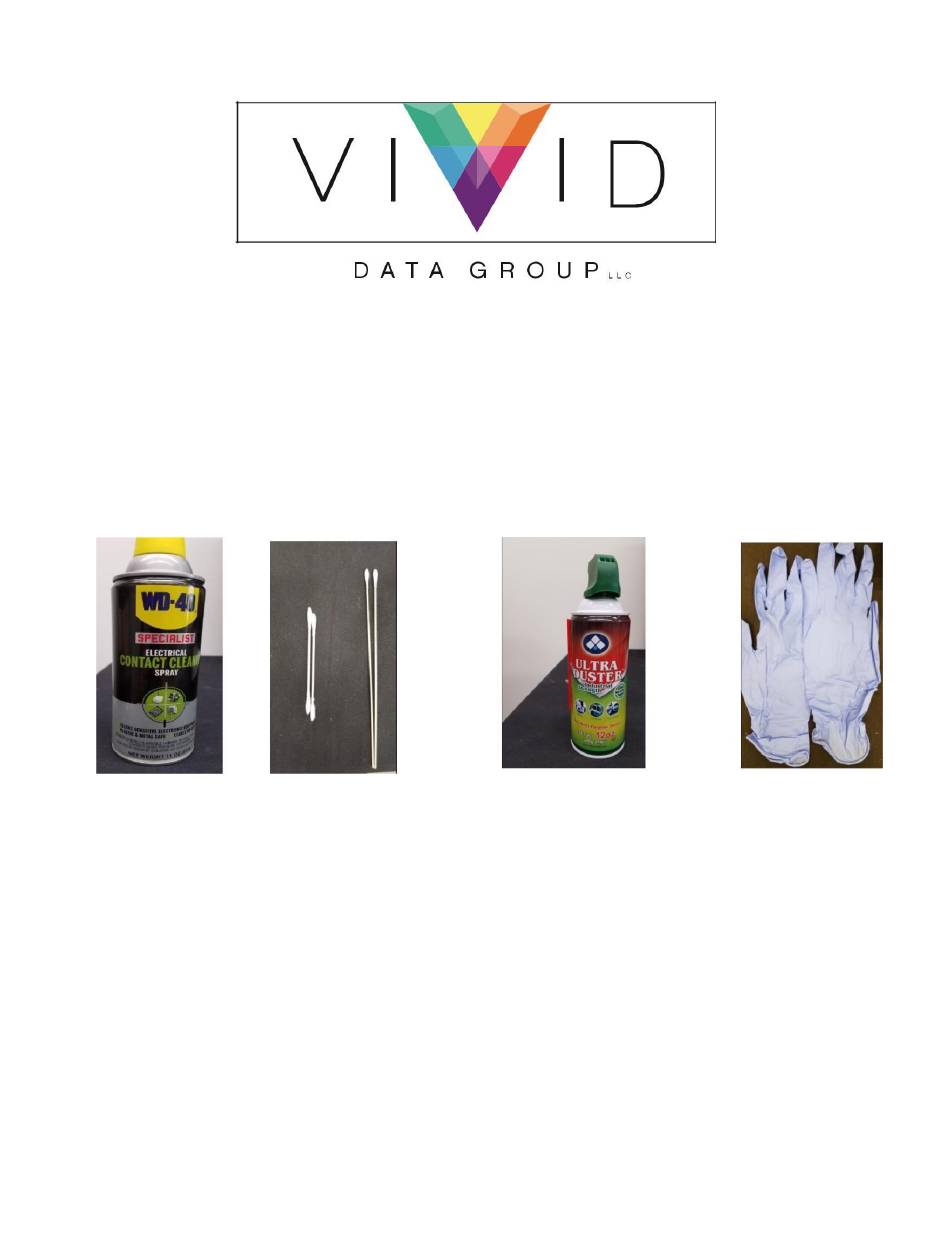

Required Tools:

•
Canned Air
•
Contact Cleaner
•
Nitrile Gloves
•
Q-Tips (Long & Short)

Point of Focus:

As your printer has media pass through it – with time media debris and other particulates can accumulate. As
debris and particulates accumulate they can block the Goal Post Sensors causing the Service Station to not be able
to find its home location within the print engine. This can result in longer maintenance cycles and potentially
cause the printer to prompt the operator there are mechanical errors.
The instructions within this service bulletin are broken up in the following order:
•
Removing the service tray from the print engine
•
Please reference the instructions for removing the service station based on the device you have.
•
Identifying where the Goal Post Sensors are located
•
Dispersing any particulates from the Goal Post Sensors
•
Cleaning the Goal Post Sensors with contact cleaner
For additional support call the Vivid Data Support Team at 1-855-848-4332 Option 2!
Installment 161115
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AFINIA LABEL L801

Summary of Contents for AFINIA LABEL L801

  • Page 1 Installment 161115 Technical Service Bulletin: Contained in the following service bulletin we will highlight for the printer operator how to successfully clean the Goal Post Sensors located in the channel the service station currently sits. Required Tools: • Canned Air •...
  • Page 2 Instructions for Removing Service Station & Printhead: 1) Afinia L801: Remove Printhead: Using the front display of the Afinia L801 – enter Configuration mode by pushing the button associated to the Gear. Enter the Setup menu (option 1) by hitting the return button.
  • Page 3 Installment 161115 Instructions for Locating – Dispersing Particulates – Cleaning Goal Post Sensors: 2) After ejecting the service tray from the print engine – using a small flashlight identify the Goal Post sensors located within the channel you just pulled the service tray out of. Looking down into the open clamshell the Goal Post Sensor should be visible.
  • Page 4 Installment 161115 After the Goal Post sensors have been identified it is necessary to disperse any debris and particulates that have built up on the sensors over time. Take your canned air and focus it in the area of each Goal Post sensor and disperse any debris that appears on both Goal Post sensors.
