Installation and operation manual
Electromagnetic pump PEP
Date of issue
May 2021
Form number
951-130-403-1
Read manual prior to installation or use of
this product. Keep manual nearby for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEP and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF PEP

  • Page 1 Installation and operation manual Electromagnetic pump PEP Date of issue May 2021 Form number 951-130-403-1 Read manual prior to installation or use of this product. Keep manual nearby for future reference.
  • Page 2: Imprint

    Fax +49 (0) 6227 33-259 data carriers, and data networks is strictly prohibited without the express permission of Or an SKF Service Centre, the addresses SKF. of which are given on our website: Subject to editorial or technical www.skf.com/lubrication...
  • Page 3: Table Of Contents

    Contents Imprint ..........5.3 Storage .
  • Page 4 EC Declaration of Incorporation in accordance with EC-Machinery Directive 2006/42/EC, Appendix II Part B The manufacturer SKF France SAS, 204, Bld Charles de Gaulle, B.P. 239 – 37540 St-Cyr-sur-Loire – FRANCE, declares herewith the confor- mity of the partly completed machine...
  • Page 5 The partly completed machine must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the EC Machinery Directive 2006/42/EC and other relevant Directives. St Cyr-sur-Loire, January 15 , 2015 Guillaume Amilien Gérard Gaudin R&D Manager Production unit manager SKF France SKF France Lubrication Business Unit Lubrication Business Unit...
  • Page 6: General

    General Meaning of symbols and corresponding information In this manual, the symbols and safety wor- dings shown on this page are intended to communicate a particular risk to persons, material assets, or the environment. All safety instructions must be respected by person exposed to these risks.
  • Page 7: Safety Instructions

    Note that these installation instructions is accordance with all generally acknowledged Products of SKF must not be used in an integral part of the product. It must be regulations pertaining to technology, occu- conjunction with substances and mixtures handed over to the new operator of the pro- pational safety, and accident prevention.
  • Page 8: Authorized Personnel

    NOTE CAUTION!  person and who are unqualified persons are All SKF products may be used strictly respec- Working on products that have not been stipulated in DIN VDE 0105 and IEC 364. ting the instructions described in this bro- disconnected from the power supply can chure or the operating instructions.
  • Page 9: Warranty

    NOTE and fluids with a vapor pressure exceeding All SKF products must only be used for their normal atmospheric pressure (1013 mbars) intended purpose and in accordance with the specifications of the installation instructions by more than 0,5 bar at their maximum per- for the product in question.
  • Page 10: Approved Lubricants

    Only lubricants that have been approved by may become damaged or jammed. in table 2, please refer to the delivered tech- SKF for use with the product may be used. nical sheet to know the specific technical data Unsuitable lubricants can cause product of the electromagnetic pump.
  • Page 11: Lubricants And The Environment

    2.4 Lubricants and 2.5 Danger relating CAUTION!  Different lubricants must not be mixed the environment to lubricants together. Doing so can cause damage and require extensive cleaning of the products/ centralized lubrication system. To prevent confusion, we recommend that you attach information indicating the lubricant to be ...
  • Page 12: Design And Function

    3.1 Versions Electromagnetic pumps PEP are available in different designs. They differ in the number of outlets as well as in the flow rate per stroke.
  • Page 13 Table 2 PEP electromagnetic pump codification system Order No. Number of outlets 1 = 1 lubricant outlet 2 = 2 lubricant outlets 3 = 3 lubricant outlets Flow rate stroke/outlet 20 = 20 mm 40 = 40 mm 60 = 60 mm...
  • Page 14: Description

    A return spring pulls each piston back into its initial position. The PEP pump can supply 1, 2 or 3 outlet ports. Each outlet port is equipped with a check valve.

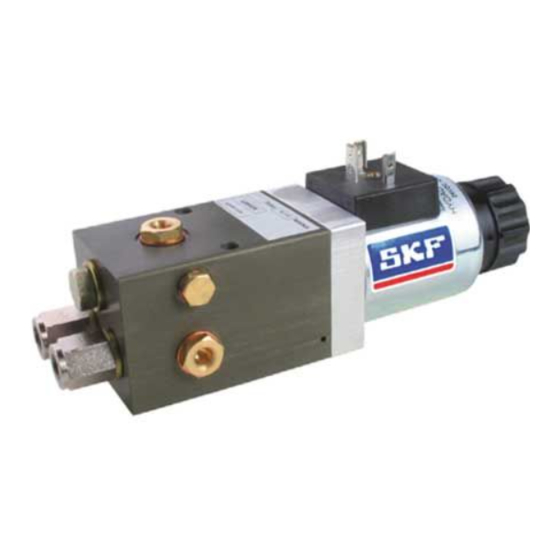

  • Page 15 Fig. 1 Electromagnetic pump PEP 1 Fixing holes (× 2) 2 Lubricant inlet 3 Outlet ports 4 Lubricant inlet 5 Bleed opening 6 Pump housing 7 Electromagnet 8 Manual control 9 Electrical connection...
  • Page 16 Fig. 2 PEP dimensions PEP-1-... X’ 18,2 Ø2,5 × 4 (76) ×2 Ø5,5 PEP-2-...
  • Page 17: Function

    Function principle of the PEP initial position and suck lubricant from the intake chamber. The electromagnetic pump PEP has a maximal working frequency of 2 strokes / second and a duty ratio of 40%.
  • Page 18: Installation Instructions

    The electromagnetic pump PEP is fixed with tions in effect, and installation conditions. two M 5×55 screws, distance between the They should be able to carry out the holes 35 mm.
  • Page 19: Hydraulic Connection

    4.2 Hydraulic 4.2.2 Lubricant outlet  CAUTION! The electromagnetic pump must be firmly connection Coming out the electromagnetic pump the attached to the support plate to prevent any accidental fall. If the pump falls it could be lubricant is directed either to projection damaged or cause damage and can also nozzles or to lubricating brushes.
  • Page 20: Electric Connection

    4.3 Electric connection WARNING!  Only qualified, instructed specialists who are authorized by the operator may install the electrical connections for the electromagne- tic pump. The connection conditions and the local regulations (e.g. DIN, VDE, NF) must be scrupulously respected. If the electromagne- tic pump is improperly connected, substantial material or personal damage my be the Wiring diagram for 24 V DC pump without...
  • Page 21: Transport, Delivery And Storage

    • Permitted air humidity: < 65% • Warehouse temperature: 10 – 40 °C SKF products are packaged in accordance • Light: direct sunlight/UV radiation must be with the regulations of the recipient country avoided;...
  • Page 22: Activation

    6. Activation CAUTION!  Only use a clean lubricant. Soiled lubricants can cause major defects in the system. 6.1 General Do not mix different lubricants together, as this may cause damage and require the full cleaning of the pump/lubrication system. To The electromagnetic pump operates auto- prevent any risk of error, it is recommended to clearly identify the lubricant used on the...
  • Page 23: Adjusting The Flow Rate

    6.3 Adjusting the flow rate To modify the flow rate of the electromagne- tic pump PEP you need to change the Fig. 5 plunger. Adjustment of the flow rate Procedure: • Unscrew the nut (1) and remove the seal (2).
  • Page 24: Shutdown

    Installation and Commissioning of this installation, maintenance, or repair work and manual. before making any changes to the system. The system can also be taken back by SKF for disposal if the costs are covered. 7.2 Permanent shutdown All country specific legal guidelines and...
  • Page 25 • claims. Only original SKF spare parts may be used. It is prohibited for the operator to make alte- • If there is no monitoring device on the rations to the product or to use non original lines and after longer operation (max.
  • Page 26: Failures

    All other work relating to installation, maintenance, and repair must only be carried out by SKF Service. Only original SKF spare parts may be used. It is prohibited for the operator to make alte- rations to the product or to use non original...
  • Page 27 Adjust the working frequency of the pump Wrong flow rate adjustment Adjust the flow rate. Therefore change the plunger. Wrong plunger Change the plunger The pump runs with Mounting position Reinstall the pump PEP according to the horizontal main axis XX'. difficulty.
  • Page 28: Technical Data

    10. Technical data Table 4 Technical data PE electromagnetic pump Pump Operating temperature –20 to +60 °C Working frequency ≤ 2 strokes/s Life 20 × 10 cycles maximum Flow rate 20, 40 or 60 mm /cycle Discharge pressure < 80 bar Inlet pressure 0,01 <...
  • Page 29: Spare Parts

    11. Spare parts Note Only original SKF spare parts may be used. It is prohibited for the operator to make alterations to the product or to use non origi- nal spare parts and resources. Table 5 List of spare parts Order No.
  • Page 30 Important information on product usage SKF and Lincoln lubrication systems or their components are not approved for use with gases, liquefied gases, pressurized gases in solution and fluids with a vapor pressure exceeding normal atmospheric pressure (1 013 mbar) by more than 0,5 bar at their maximum permissible temperature.
