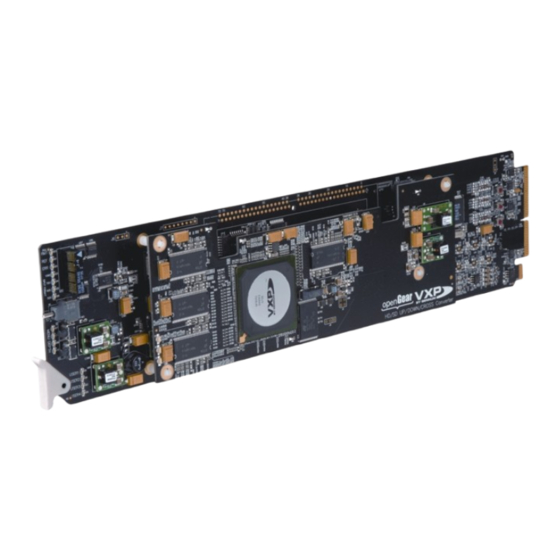

Cobalt Digital Inc 9822 Product Manual

Downconverter with hd/sd-sdi input, embedded audio, frame sync, and timecode/closed captioning/afd support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Downconverter
with HD/SD-SDI Input, Embedded Audio, Frame Sync,
and Timecode/Closed Captioning/AFD Support
Product Manual
9822
Cobalt Digital Inc.
2406 E. University Ave.
Urbana, IL 61802
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
9822-OM (V4.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9822 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cobalt Digital Inc 9822

Summary of Contents for Cobalt Digital Inc 9822

  • Page 1 9822 Downconverter with HD/SD-SDI Input, Embedded Audio, Frame Sync, and Timecode/Closed Captioning/AFD Support Product Manual Cobalt Digital Inc. 2406 E. University Ave. Urbana, IL 61802 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com 9822-OM (V4.1)
  • Page 3 9822-OM (V4.1) 9822 PRODUCT MANUAL...

  • Page 4: Table Of Contents

    DashBoard™ User Interface ............... 3-3 Cobalt ® Remote Control Panel User Interfaces .......... 3-4 Accessing the 9822 Card via Remote Control ............3-5 Accessing the 9822 Card Using DashBoard™ ........... 3-5 ® Accessing the 9822 Card Using a Cobalt Remote Control Panel ..... 3-6 Checking 9822 Card Information................
  • Page 5 Chapter 1 Overview This manual provides installation and operating instructions for the 9822 Downconverter with HD/SD-SDI Input, Embedded Audio, Frame Sync, and Timecode/Closed Caption/AFD Support card (also referred to herein as the 9822). This manual consists of the following chapters: •...
  • Page 7 Introduction Manual Conventions 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 8 Symbol (WEEE 2002/96/EC) For product disposal, ensure the following: • Do not dispose of this product as unsorted municipal waste. • Collect this product separately. • Safety Summary Warnings Cautions 9822 PRODUCT MANUAL 9822-OM (V4.1)
  • Page 9 9822 Functional Description 9822 Functional Description Figure 1-1 shows a functional block diagram of the 9822. The 9822 format downconverter also includes a full 16-channel audio processor/router and a full video frame synchronizer. The 9822 also handles AFD code detection/ insertion and processing, timecode support, closed captioning support, and ®...
  • Page 10 9822 Functional Description...
  • Page 11 Downconverter Function The downconverter function provides down-conversion from multiple standard HD video formats to corresponding NTSC or PAL SD interlaced formats. Table 1-1 lists the 9822 conversion choices available for various input formats and frame rates. Note: “NTSC” and “PAL”...
  • Page 12 9822 Functional Description Timecode Processor (See Figure 1-2.) This function provides for extraction of timecode data from the input video, and in turn re-insertion of timecode data into the output SDI. In this manner, timecode data can be preserved, even after format conversion.
  • Page 13 Introduction 9822 Functional Description ® Dolby Metadata Extractor/Re-inserter 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 14 9822 Functional Description The router function provides up to 16 channels of embedded audio on the outputs. The router acts as a full audio cross point. Each of the 16 embedded output channels can receive signal from any one of the 16 embedded input channels, four internal tone generators, or the Down Mix Left and/or the Down Mix-Right mixer outputs.
  • Page 15 Introduction 9822 Functional Description 2.0-to-5.1 Upmix Function Note: Upmix function is an optional licensable feature. This function and its controls appear only when a license key is entered and activated. (This option (identi- ® fied in Cobalt price lists as +UM) can be purchased upon initial order, or field-activated using a key string which is sent to you when this option is pur- chased.)
  • Page 16 9822 Functional Description 1-12...
  • Page 17 Tne Generator Function The 9822 contains four built-in tone generatr (Tone Generatorr Tone Genear 4). Each of the four tone geratr ca set t a differ frquency, and are avaiable as audiources for the embedded audio outputs.
  • Page 18 9822 Functional Description User Control Interface Figure 1-6 shows the user control into s pti usoh o 1-14 9822 PRODUCT MANUAL 9822-OM (V4.1)
  • Page 19 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 20 9822 Functional Description 9822 Rear I/O Modules The 9822 physically interfaces to system video connections at the rear of its frame using a Rear I/O Module. All inputs and outputs shown in the 9822 Functional Block Diagram (Figure 1-1) enter and exit the card via the card edge backplane connector. The...
  • Page 21 Introduction Technical Specifications Technical Specifications Table 1-3 lists the technical specifications for the 9822 Downconverter with HD/SD-SDI Input, Embedded Audio, Frame Sync, and Timecode/Closed Caption/AFD Support card. Table 1-3 Technical Specifications Item Characteristic Part number, nomenclature 9822 Downconverter with HD/SD-SDI Input, Embedded Audio,...
  • Page 22 Technical Specifications 1-18...
  • Page 23 Introduction Technical Specifications 1-19 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 24 Warranty and Service Information 1-20 9822 PRODUCT MANUAL 9822-OM (V4.1)
  • Page 25 Introduction Contact Cobalt Digital Inc. 1-21 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 26 This page intentionally blank 1-22 9822 PRODUCT MANUAL 9822-OM (V4.1)
  • Page 27 Installation and Setup Chapter 2 Overview This chapter contains the following information: • Installing the 9822 Into a Frame Slot (p. 2-1) • Installing a Rear I/O Module (p. 2-3) • Setting Up 9822 Network Remote Control (p. 2-6) Installing the 9822 Into a Frame Slot 9822-OM (V4.1)
  • Page 29 This procedure is applicable only if a Rear I/O Module is not currently installed in the slot where the 9822 is to be installed. If installing the 9822 in a slot already equipped with a suitable I/O module, omit this procedure.
  • Page 30 Installing a Rear I/O Module Align and engage mounting tab on Rear I/O Module with the module seating slot on rear of frame chassis. DSCN3483A.JPG Figure 2-1 Rear I/O Module Installation 9822 PRODUCT MANUAL 9822-OM (V4.1)
  • Page 31 Installation and Setup Installing a Rear I/O Module 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 32 Setting Up 9822 Network Remote Control Setting Up 9822 Network Remote Control ® Perform remote control setup in accordance with Cobalt reference guide “COMPASS™ Remote Control User Guide” (PN 9000RCS-RM). Note: • If network remote control is to be used for the frame and the frame has not ®...

  • Page 33: Chapter 3 Operating Instructions

    The format in which the 9822 functional controls, indicators, and displays appear and are used varies depending on the user interface being used. Regardless of the user interface being used, access to the 9822 functions (and the controls, indicators, and displays related to a particular function) follows a...

  • Page 34: Function Submenu/Parameter Submenu Overview

    The functions and related parameters available on the 9822 card are organized into function submenus, which consist of parameter groups as shown below. Figure 3-1 shows how the 9822 card and its submenus are organized, and also provides an overview of how navigation is performed between cards, function submenus, and parameters.

  • Page 36: Cobalt ® Remote Control Panel User Interfaces

    When the desired function submenu is selected, each parametric control or selection list item associated with the function is displayed. Scalar (numeric) parametric values can then be adjusted as desired using the control knobs, 9822 PRODUCT MANUAL 9822-OM (V4.1)

  • Page 37: Accessing The 9822 Card Via Remote Control

    On the computer connected to the frame LAN, open DashBoard™. As shown below, in the left side Basic View Tree locate the Network Controller Card associated with the frame containing the 9822 card to be accessed (in this example, “MFC-8320-N SN: 00108053”).

  • Page 38: Accessing The 9822 Card Using A Cobalt

    Accessing the 9822 Card via Remote Control Card Access/Navigation Card Info Card Function Submenu Tree Pane Pane and Controls Pane 9822_DB_ACCESS3A3.PNG Accessing the 9822 Card Using a Cobalt ® Remote Control Panel Press the key and select a card as shown in the example below.

  • Page 39: Checking 9822 Card Information

    Checking 9822 Card Information Checking 9822 Card Information The operating status and software version the 9822 card can be checked using DashBoard™ or the card edge control user interface. Figure 3-4 shows and describes the 9822 card information screen using DashBoard™ and accessing card information using the card edge control user interface.
  • Page 41 9822-OM (V4.1) 9822 PRODUCT MANUAL...

  • Page 42: 9822 Function Submenu List And Descriptions

    9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List Displays signal status for the 16 embedded audio channels. Also provides global unity routing/parameter control resets. Audio Input Status • Status Displays Individual signal status displays for embedded audio channels 1-16 as follows: •...

  • Page 43: Video Proc

    Operating Instructions 9822 Function Submenu List and Descriptions Provides the following Video Proc parametric controls. • Video Proc Video Proc (On/Off) provides master on/off control of all Video Proc functions. • When set to Off, Video Proc is bypassed. • When set to On, currently displayed parameter settings take effect.
  • Page 44 9822 Function Submenu List and Descriptions Provides video format down-conversions and aspect ratio controls. ® ® Note: Scaling and/or format conversion removes Dolby metadata and ATC packets (if present). If Dolby metadata is present and needs to be preserved, use the Dolby Metadata function tab to preserve and re-apply the metadata on the output SDI.
  • Page 45 Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued Scaler Video Format Conversions (continued) • HD: Aspect Ratio Conversion Selects between the standard preset Aspect Ratio Conversions (ARC) shown here, as well as User Defined and Follow AFD Settings.
  • Page 46 9822 Function Submenu List and Descriptions Scaler Video Format Conversions (continued) • SD: Top line suppression Selects the number of lines suppressed at the beginning of video. In this manner, the image is scaled proportionally to replace the top few lines suppressed using this control.

  • Page 47: Afd

    Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued Allows assignment of AFD (Active Format Description) codes to the SDI output video, and allows unique ARC settings to be applied for each AFD code.
  • Page 48 9822 Function Submenu List and Descriptions 3-16 9822 PRODUCT MANUAL 9822-OMl PRO621.3(V)3.5-o-.
  • Page 49 Operating Instructions 9822 Function Submenu List and Descriptions (continued) • H Zoom and V Zoom Controls Individual H Zoom and V Zoom controls for each of the 12 AFD code choices for both 4:3 and 16:9 coded input frames described above allow adjustment of horizontal and vertical zoom percentage for each AFD code.
  • Page 50 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • Output Line Allows selecting the line location of the AFD data within the video signal Ancillary Data space. (Range is 9 thru 41; default is line #12.) Note: •...
  • Page 52 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • Safe Action/Title Area Color Selects the Safe Action and Safe Title overlay color from choices shown to the left. • 0.75H Safe Action Area When enabled (On), turns on the 0.75H Safe Action Area overlay that...
  • Page 53 Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • 0.75H Safe Title Area When enabled (On), turns on the 0.75H Safe Title Area overlay that shows the 4:3 safe title area on a 16:9 image (i.e., resulting safe title area when the image is converted to 4:3).

  • Page 55: Framesync

    Operating Instructions 9822 Function Submenu List and Descriptions Provides video Frame Sync offset and audio re-sync tools. Framesync • Framesync Enable Disables the Frame Sync function, or selects from choices below. • Off: Disables Frame Sync function; output video timing matches the input video timing.
  • Page 56 9822 Function Submenu List and Descriptions (continued) • Minimum Latency Control When Framesync is enabled, specifies the smallest amount of latency allowed by the frame sync (latency measurement in output video frames). The frame sync will not output a frame unless the specified number of...
  • Page 57 Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • Audio Offset Control Adds or reduces (offsets) audio delay from the matching video delay (audio delay offset setting adds or removes delay in addition to any delay included by other actions).
  • Page 58 9822 Function Submenu List and Descriptions (continued) • Loss of Input Signal Selection In the event of input video Loss of Signal (LOS), determines action to be taken as follows: • Disable Outputs: Disable all outputs. • 3-26 9822 PRODUCT MANUAL...
  • Page 59 Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued Selects the audio source for each embedded audio channel 1 thru 8 (Embedded Audio Groups 1 and 2). Also provides Gain, Phase Invert, and Muting controls Embedded Audio Group 1/2 for each channel.

  • Page 60: Embedded Audio Group 1/2

    9822 Function Submenu List and Descriptions (continued) • SD Audio Depth Allows option of using 24-bit audio data structure per SMPTE 272M, §3.10. Note: • If 24-bit depth is desired, make certain downstream equipment is compatible with 24-bit SD audio data.

  • Page 63: Embedded Audio Group 3/4

    Operating Instructions 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • SD Audio Depth Allows option of using 24-bit audio data structure per SMPTE 272M, §3.10 (default is 20-bit per SMPTE 272M, §3.5).
  • Page 64 9822 Function Submenu List and Descriptions ® Extracts and preserves Dolby metadata from the input SDI, and in turn allows the metadata to be re-inserted in the output SDI. This allows scaling and/or format Dolby Metadata ® conversions without losing Dolby metadata.

  • Page 65: Closed Captioning

    Operating Instructions 9822 Function Submenu List and Descriptions Provides support for closed captioning setup. Note: When receiving HD-SDI, both CEA 608 and CEA 708 are supported, with CEA 608 and CEA 708 (containing CEA 608 packets) converted to line 21 closed captioning on outputs down-converted to SD.
  • Page 66 9822 Function Submenu List and Descriptions Provides timecode data extraction from various sources, and provides formatting and re-insertion controls for inserting the timecode into the output video. Timecode 3-34 9822 PRODUCT MANUAL 9822-OM (V4.1)

  • Page 67: Timecode

    Operating Instructions 9822 Function Submenu List and Descriptions (continued) Audio LTC and RS-485 LTC controls described below only appear on cards with +LTC licensed optional feature. This feature allows bidirectional conversion between VBI-based timecode and LTC timecode on audio and RS-485 interfaces.
  • Page 68 9822 Function Submenu List and Descriptions (continued) • Output Status Display Displays the current content and source being used for the timecode data as follows: • Output status OK (in this example, running timecode received from SDI VITC). • Timecode not available due to lack of appropriate input timecode data on enabled formats.
  • Page 69 Operating Instructions 9822 Function Submenu List and Descriptions 3-37 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 70 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) Adjusts the attenuation ratio of center-channel content from 5-channel • Center Mix Ratio Control source that is re-applied as Lt and Rt content to the DM-L and DM-R stereo mix.
  • Page 71 Operating Instructions 9822 Function Submenu List and Descriptions (continued) Note: • 2.0-to-5.1 upmixer function is an optional licensable feature. This function and its controls appear only when a license key is entered and activated. Refer to Licensable Features function description on page 3-42 for more information.
  • Page 72 9822 Function Submenu List and Descriptions (continued) • Up Mixer Mode Control Enables or bypasses upmixer as follows: • Auto: Automatic enable/bypass of 5.1 upmix function as follows: • If detected signal level on all four of the selected channels designated as Center, LFE, Left Surround, and Right Surround are below the level threshold set using the aw the l-19at3(l)13.4(93y151fiw2c)-5.8(nconc-0...
  • Page 73 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 74 To order features and obtain a license key, contact Cobalt sales at sales@cobaltdigital.com or at the contact information in Contact Cobalt Digital Inc. in Chapter 1, “Introduction”. Please provide the “SSN” number of your card (displayed in the Card Info pane) when contacting us for your key.

  • Page 75: Presets

    Operating Instructions 9822 Function Submenu List and Descriptions (continued) • Preset Save and Load • Preset Save stores all current card control settings to the currently selected preset. (For example, if Preset 1 is selected in the Selected Preset drop-down...
  • Page 76 9822 Function Submenu List and Descriptions Table 3-2 9822 Function Submenu List — continued (continued) • Preset Name With one of 16 presets selected, provides for entry of custom name for the preset (as shown in example below). Entering text in Preset Name field (in this example, “RCVR21”)

  • Page 77: Troubleshooting

    Error and Failure Indicator Overview The 9822 card itself and its remote control systems all (to varying degrees) provide error and failure indications. Depending on how the 9822 card is being used (i.e, standalone or network controlled through D8(5 )-0.7( u.2 60ct(ure)10u51 ErrB(e)-5.s...
  • Page 78 Troubleshooting 9822 Card Edge Status/Error Indicators and Display Figure 3-6 shows and describes the 9822 card edge status indicators and display. These indicators and the display show status and error conditions relating to the card itself and remote (network) communications (where applicable).
  • Page 79 DashBoard™ Status/Error Indicators and Displays Figure 3-7 shows and describes the DashBoard™ status indicators and displays. These indicator icons and displays show status and error conditions relating to the 9822 card itself and remote (network) communications. Indicator Icon or Display Error Description...
  • Page 80 Card Info pane By clicking on “Slot 6: CDI-9822 RCVR21” in this example, Card Info is shown for 9822 card in slot 6 Figure 3-8 Selecting Specific Cards for Card Info Status Display 3-48 9822 PRODUCT MANUAL 9822-OM (V4.1)

  • Page 81: Basic Troubleshooting Checks

    Operating Instructions Troubleshooting Basic Troubleshooting Checks Failures of a general nature (affecting many cards and/or functions simultaneously)rritintmult3(t)-y5(eou e.4(i)-rmult3(c10.54c5( .2 )ouTo.61(49)]T.7-s i3( 3-49 9822-OM (V4.1) 9822 PRODUCT MANUAL...
  • Page 83 Minimum Latency Frames is related to the output video format. For example, with a 525i 59.94 output, the practical maximum limit is 13. DashBoard™ shows Output Status error message in 9822 Timecode function submenu 3-51 9822-OM (V4.1) 9822 PRODUCT MANUAL...

  • Page 84: Troubleshooting Network/Remote Control Errors

    In Case of Problems Should any problem arise with this product that was not solved by the information in this section, please contact the Cobalt Digital Inc. Technical Support Department. If required, a Return Material Authorization number (RMA) will be issued to you, as well as specific shipping instructions.
  • Page 86 Cobalt Digital Inc. 2406 E. University Ave. Urbana, IL 61802 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com 9822-OM (V4.1) Printed in USA...
