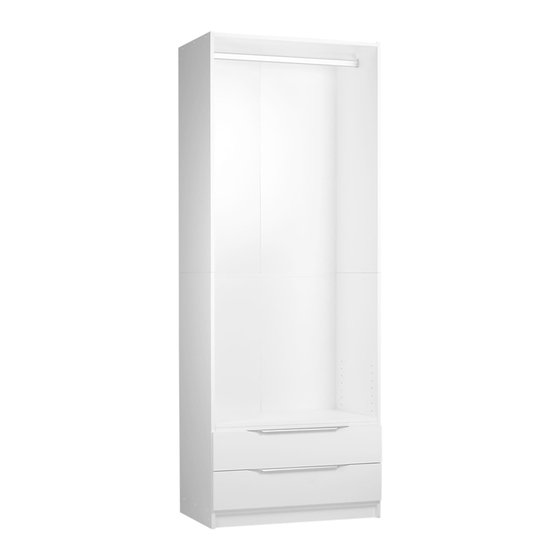

- Page 1 Assembly InstructIons eXC-750H2 eXeCutIve rAnge HAngIng rAIL FIXeD SHeLF StAnDArD DrAWerS PACKS 2000H x 750W x 450D WHITE #2669935 LIgHT Oak #2683481 Dark COCO #2683519...
- Page 2 ASSEMBLY INSTRUCTION FOR EXC-750 H2 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 TAKE YOUR GABLES AND LAY THEM OUT FLAT, YOU SHOULD HAVE 2 X TOP & FIXED SHELF RAIL SUPPORT KICK DOWELS 2 X BOTTOM GABLES. USING A LITTLE BRACKETS WOOD GLUE (NOT SUPPLIED) IN YOUR PRE-DRILLED HOLES, INSERT YOUR WOOD DOWELS INTO 2 OF THE HOLES AND PUSH YOUR TOP INTO YOUR NEXT STEP: BOTTOM GABLE.
- Page 4 DRAWER INSTRUCTIONS TO SUIT EXC-750 H2 UNITS MODEL DESCRIPTION MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS EURO SCREWS 16mm WOOD SCREWS 30mm COUNTER SUNK WOODSCREW HANDLE INFILL DRAWER RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE-DRILLED HOLES FACING UP.
- Page 5 DRAWER ASSEMBLY STEP 3. YOUR DRAWER SHOULD BE FACING DOWN WITH THE FRONT DRAWER EXPOSING THE CUT OUT FOR THE BASE TO BE PUSHED INTO FACE DOWN WITH THE BROWN SIDE SHOWING. MAKING SURE YOU HAVE THE DRAWER SQUARE, PROCEED TO NAIL DOWN THE BASE SPACING THEM OUT AROUND THE EDGE OF THE THREE SIDES.
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT AND DRAWER BOX ASSEMBLY IMPORTANT CABINET RUNNERS ARE MARKED AS FOLLOWS C L = LEFT HAND SIDE C R = RIGHT HAND SIDE SEE DIAGRAM 2 BELOW EXECUTIVE 750 SERIES Models Hole Positions EXC -750 H1 EXC -750 H2 1 –...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
