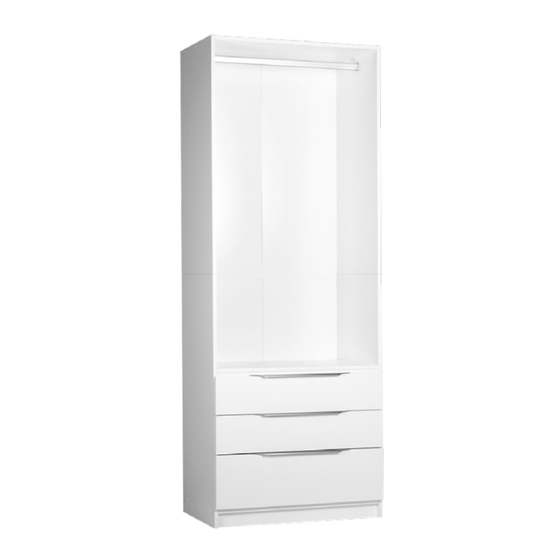

- Page 1 Assembly InstructIons eXC-750H3 eXeCutIve rAnge HAngIng rAIL FIXeD SHeLF StAnDArD DrAWerS Jumbo DrAWer PACKS 2000H x 750W x 450D WHITE #2669936 LIgHT Oak #2683482 Dark COCO #2683520...
- Page 2 ASSEMBLY INSTRUCTION FOR EXC-750 H3 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 5/8 pan screw then 25mm pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 TAKE YOUR GABLES AND LAY THEM OUT FLAT, YOU SHOULD HAVE 2 X TOP FIXED SHELF RAIL SUPPORT & 2 X BOTTOM GABLES. USING A KICK DOWELS BRACKETS LITTLE WOOD GLUE (NOT SUPPLIED) IN YOUR PRE-DRILLED HOLES, INSERT YOUR WOOD DOWELS INTO 2 OF THE HOLES AND PUSH YOUR TOP INTO NEXT STEP: YOUR BOTTOM GABLE.
- Page 4 3 x DRAWER ASSEMBLY INSTRUCTION MODEL DESCRIPTION MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE SCREW 5/8 X 6 WOOD SCREWS 18 EURO SCREWS HANDLE INFILL RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE- DRILLED HOLES FACING UP.
- Page 5 DRAWER ASSEMBLY STEP 4. STEP 3. YOUR DRAWER SHOULD BE FACING DOWN WITH THE FRONT DRAWER EXSPOSING THE CUTOUT FOR THE BASE TO BE PUSHED INTO FACE DOWN WITH THE BROWN SIDE SHOWING. MAKING SURE YOU HAVE THE DRAWER SQUARE, PRO- C-LEFT-GABLE RUNNER CEED TO NAIL DOWN THE BASE SPACING THEM OUT AROUND THE EDGE OF THE THREE SIDES.
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT Executive Series DIAGRAM 1 ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
