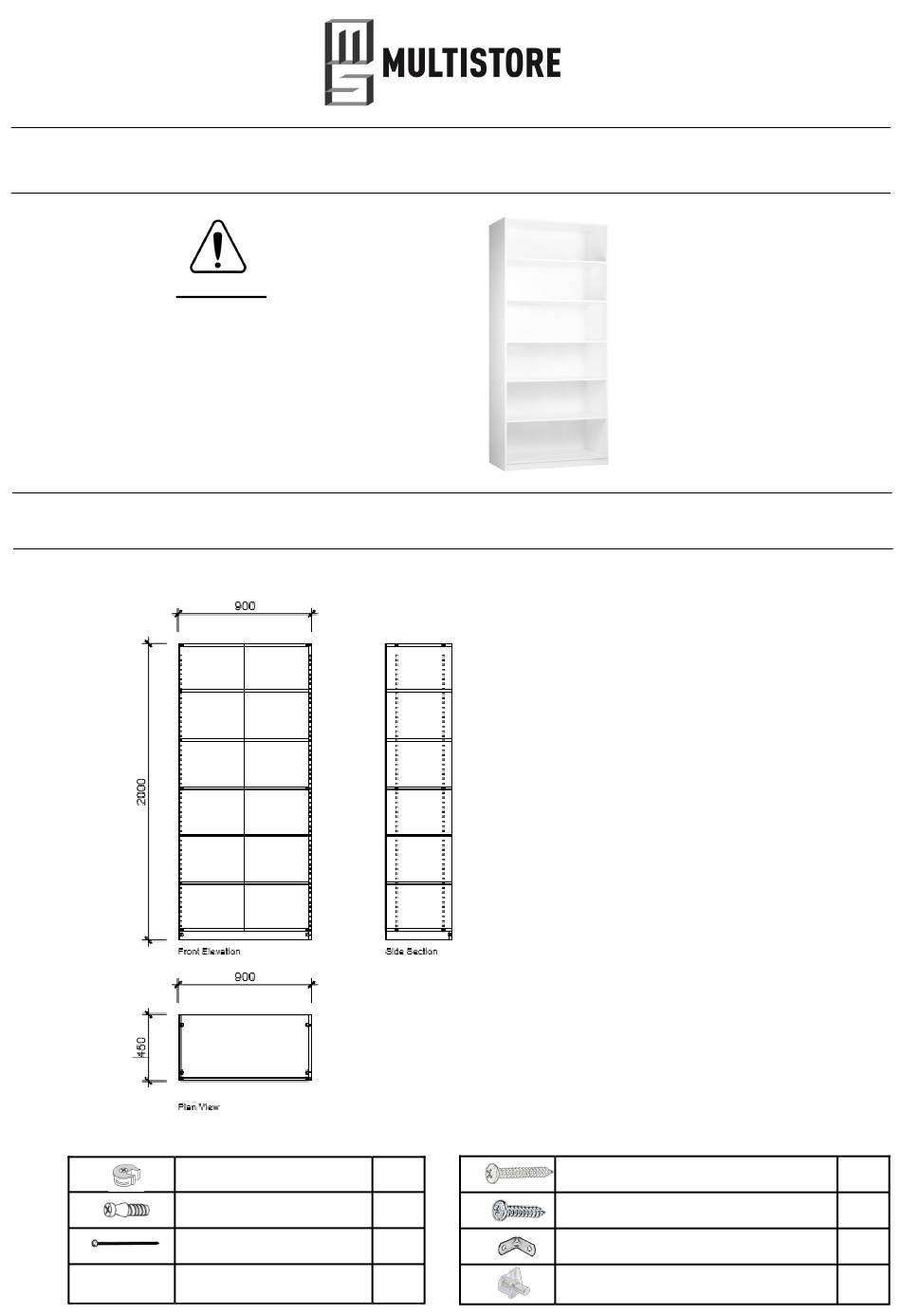

ASSEMBLY INSTRUCTION FOR EXC-900 SHELF
WARNING
Serious or fatal crushing injuries can occur from
furniture tip over. To prevent this furniture from
tipping over it must be permanently fixed to the wall
with the included wall attachment devices.
When attaching unit to wall put safety bracket in
middle of unit with 5/8 pan screw then 25mm pan
head screw into wall. For plasterboard without a
stud it is recommended to use a plug with screw
(not provided).
CAM HEADS
CAM PINS
BACKING NAILS
PARTS IDENTIFICATION LIST
14
14
75
2000mm H x 900mm W x 450mm D

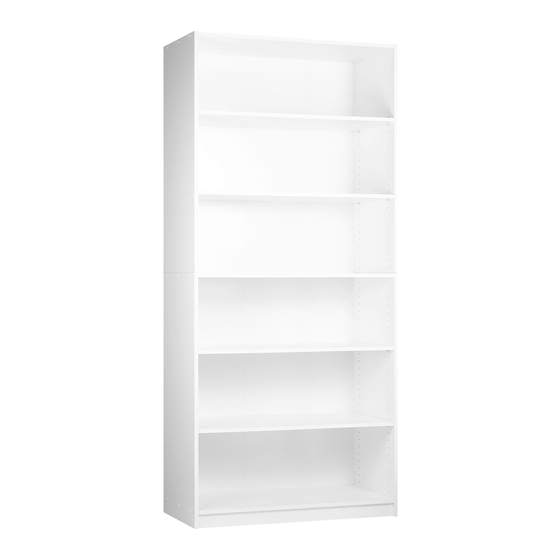

EXC-900 SHELF
Height: 2000 Width:900 Depth: 450
1)
Left Gable: 446 x 1999
2)
Right Gable: 446 x 1999
3)
Top: 444 x 868
4)
Base: 444 x 868
5)
Kick face: 868 x 60
6)
Cam Shelf: 444 x 868
7)
Adjustable Shelves: 444 x 868
8)
Back: 450 x 1938
9)
Back: 450 x 1938
5/8 PANHEAD WALL SCREWS
25mm PANHEAD UNIT SCREWS
"L" SAFETY BRACKET
SHELF SUPPORT PINS
1
1
1
16
Advertisement
Related Manuals for Multistore EXC-900
Summary of Contents for Multistore EXC-900
- Page 1 ASSEMBLY INSTRUCTION FOR EXC-900 SHELF WARNING Serious or fatal crushing injuries can occur from furniture tip over. To prevent this furniture from 2000mm H x 900mm W x 450mm D tipping over it must be permanently fixed to the wall with the included wall attachment devices.
- Page 2 ASSEMBLY OF SHELL OF EXC-900 SHELF Top Cam Shelf Adjustable Shelf Right Gable Backing Panel Middle Cam Shelf Left Gable Base Cam Shelf Kick Step 1: Lay all panels on the floor to assemble. Tools Required Step 2: Secure Left Gable (1) to Top Shelf (3), then the Base Shelf (4) and then follow with the Cam Middle Shelf (6).
- Page 3 ASSEMBLY BACKING BOARD Step 5: Fold out the Backing Boards (7) proceed to nail the Backing Board into position with a hammer. It is important to make sure the Backing Boards are square with the left and right gables. To secure the middle add a few nails across the Middle Cam Shelf.
