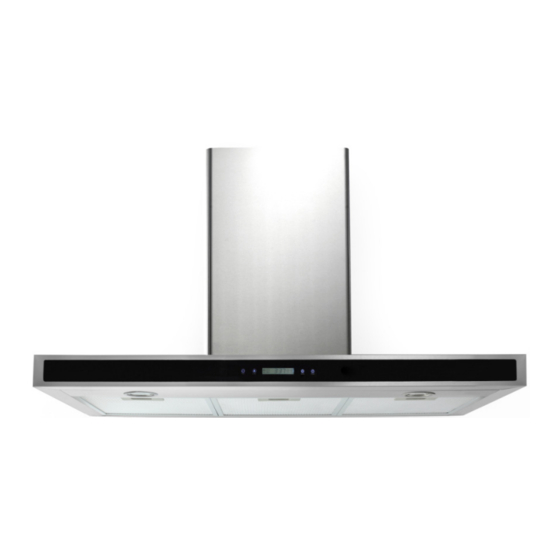

- Page 1 Range Hood WRP430 & WRP436 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN-1156-01...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Hood Mounting Bracket Upper Chimney Bracket Main Housing Lower Chimney Bracket Lower Chimney 30” Filters (x2) 36” Filters (x3) 4 x Damper Screws (A) Upper Chimney 4 x Chimney Screws (B) Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 215 W (210W+2*2.5W) Motor Input Power 210 W Amperage 1.8 A Speed Control Levels 3 Speeds Interference Protection Radio Frequency Interference Protected Noise Level (50db)/(55db)/(60db) Motors Single Motor Control LCD touch control panel... -
Page 8: Mounting Brackets
Mounting Brackets — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. For the most efficient & quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 10”... - Page 11 Installation bottom should be no less than 24-inch for electric cook tops and minimum of 30-inch for gas stove tops and no IMPORTANT: higher than 30-inch for electric cook tops. • A minimum of 6” round or 3-1/4 x 10” rectangular duct • It is important to install the hood at the proper mounting (purchased separately) must be used to maintain maximum height.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations: NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 9 - Venting
Installation STEP 9 Venting • Fix the damper on the top vent of hood with 4 screws (A). • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6”... -
Page 14: Step 12 - Connect Ductwork
Installation STEP 12 Connect Ductwork • Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air- tight. • Do not install the duct tape too tightly as this may prevent the damper flaps from opening which will overwork the motor and cause improper functioning of the unit. • Fasten all connections with sheet metal screws and tape all joints with certified aluminum or foil tape. Use caulking to seal exterior wall or roof opening around the cap. -
Page 15: Step 14 - Install Filters
Installation STEP 14 Install Filters To install filters for the following four steps (See Figure # 6): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 16: Operation
Operation Time/Delay (Double Function Button) Lighting Time Setting: This button is used to set time when lighting Pressing the lighting button (2) once will turn the and blower are not in use. Time is displayed in 24 hour LCD screen on. cycle. -
Page 17: Maintenance
Maintenance Replacing the Light Bulbs IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace with a 4 Volt, 2.5Watt max, LED lights. Do breaker. -
Page 18: Range Hood Assembly
Range Hood Assembly Number Part Quantity Recirculation Kit (Not Included) Duct Tube (Not Included) Upper chimney Lower chimney Bracket for Upper chimney Bracket for Lower chimney Vent/damper Mounting bracket Power cord Housing assembly Control panel assembly Electronic box PCB board Capacitor Base of electronic Transformer... -
Page 19: Assembly
Assembly Circuit Diagram Blower Assembly Number Part Grid Blower Impeller Motor Electrical Assembly Number Part Electrical Box Base Electrical Cover Capacitor Screw (ST3*10) Screw (ST3*6) — 19 —... -
Page 20: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 21 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN-1156-01 © 2016 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 21 —...
