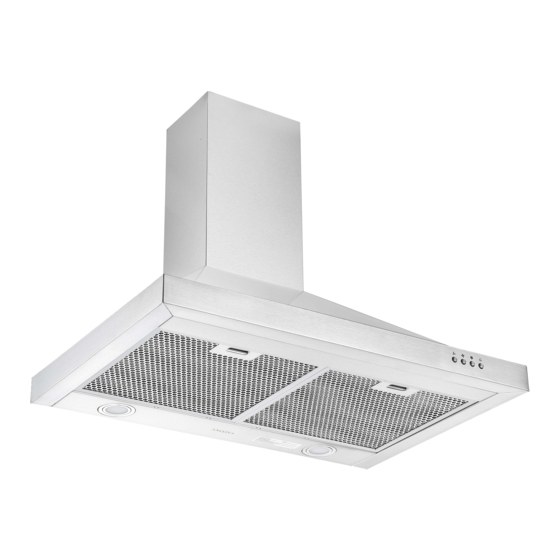

Summary of Contents for Ancona WRRV430
- Page 1 Range Hood WRRV430 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1595-01 2019-06-28...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Vent/Damper Lower Chimney Bracket Main Housing Upper Chimney Bracket Hood Mounting Bracket Lower Chimney 2 Filters 10 + 1 Screws (C) Upper Chimney 4 + 1 Screws (D) Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 17.1 cm (6.7 in.) 22.1 cm (8.7 in.) 40 - 78 cm (15.75 - 30.7 in.) 24.9 cm (9.8 in.) 27 cm (10.6 in.) 4.6 cm (1.8 in.) 5 cm (1.9 in.) 75 cm (29.5 in.) 50 cm (19.6 in.) Specifications Body Design Stainless Steel... -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket 5 1/8” (13 cm) 1 3/8” (3.5 cm) 8 21/32 (22 cm) Lower Chimney Bracket 7 7/8” (20 cm) 5 1/8” (13 cm) 1 3/8” (3.5 cm) 8 5/8” (21.9 cm) Mounting Bracket Hook 7 7/8” (20 cm) 3 15/16”... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: • It is recommended that the range hood be vented IMPORTANT: horizontally through the wall through 3.1 x 9.8 in. (8 cm • Vent system must terminate to the outside (side wall). x 25 cm) or bigger rectangular metal/aluminum vent • DO NOT terminate the vent system in an attic or other work. - Page 11 Installation for gas stove tops and no higher than 30-inch (76.2 cm) IMPORTANT: for electric cook tops. • A minimum of 3.1 x 9.8 in. (8 cm x 25 cm) rectangular • It is important to install the hood at the proper mounting duct must be used to maintain maximum airflow height. Hoods mounted too low could result in heat efficiency. damage and fire hazard; while hoods mounted too high • Always use rigid type metal/aluminum ducts if available may be hard to reach and will lose its performance and to maximize airflow when connecting to provided duct.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the wall or ceiling where the range hood will be installed. • Make sure there is proper clearance within the wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the wall or ceiling. -
Page 13: Step 9 - Venting
Installation STEP 9 Venting • Fix the damper on the rear vent of hood with 10 screws (C). (See Figure #2) • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 3.1 ×... -
Page 14: Step 13 - Connect To Ac
Installation • Hook lower chimney bracket to lower chimney. (See Figure #5) • Screw lower mounting bracket onto wall. • Screw the upper chimney to the upper mounting bracket (Screw D). (See Figure #6) Fig #5 Fig #6 STEP 13 Connect to AC • Connect AC plug into a grounded AC outlet having 120V, 3-Pronged Plug... -
Page 15: Step 14 - Install Filters
Installation STEP 14 Install Filters To install filters follow the steps below (See Figure #7): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 16: Operation
Operation Medium High Light Speed Speed Speed Power Settings Lights Press the button once and the motor starts to Press the light button to turn LED lights on and operate at Low speed. off. Press the button and the motor will reach Medium speed. -
Page 17: Range Hood Assembly
Range Hood Assembly Number Part Front panel Aluminum filter Electronic switch Electronic switch board Electronic switch box Electronic switch box cover Electronic switch box bracket Round LED lamp Stainless steel frame Blower assembly Bracket of electrical box Electrical box base PCB of electrical switch Electrical box cover Body assembly... -
Page 18: Assembly
Assembly Circuit Diagram Blower Assembly Number Part Blower Wind Wheel Nut Wind Wheel Motor Incabloc Rubber Aluminum Cover Plastic Wind Net Sealing Gasket Electrical Assembly Number Part Electrical Box Bracket Electrical Box Base Capacitor Electrical Box Cover — 18 —... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1595-01 © 2019 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
