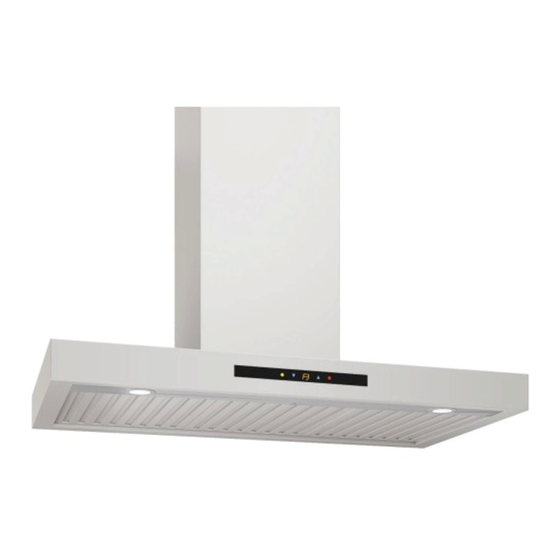

- Page 1 Range Hood Ancona Chef WRC430 & WRC436 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference.
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 6 to 16. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Range Hood Damper Damper Gasket 4 x Damper Screws 2 x Upper Chimney Screws Filters 30” x 2 Filters 36” x 3 Upper Chimney Bracket Lower Chimney Upper Chimney Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions This range hood ts standard ceilings up to 2.7m (9ft.) if installed at 814 mm (32 inches) above the cooking surface. 10.5” (266.5 mm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 326 W Motor Input Power 320 W Total Amps... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools •... -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. IMPORTANT: For the most efficient & quiet operation: • Vent system must terminate to the outside (roof or side wall). •... -
Page 10: Step 6 - Mark Placement Of Range Hood Mounting Screws
Installation STEP 6 Mark Placement of Range Hood Mounting Screws • Use a pencil to mark on the wall the desired placement of the range hood mounting screws. • Screw two wood screws (not provided) into wall. • Leave approximately 1/4” (6.3 mm) of the screw head protruding from the wall to allow clearance for mounting the range hood. -
Page 11: Step 9 - Connect Ductwork
STEP 9 Connect Ductwork • Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air- tight. • Do not install the duct tape too tightly as this may prevent the damper flaps from opening which will overwork the motor and cause improper functioning of the unit. • Fasten all connections with sheet metal screws and tape all joints with certified aluminum or foil tape. Use caulking to seal exterior wall or roof opening around the cap. -
Page 12: Step 11 - Install Lower Chimney
Installation STEP 11 Install Lower Chimney • Place lower chimney on top of the main housing. STEP 12 Install Upper Chimney Bracket • Position the upper chimney bracket onto the wall directly below the ceiling. Align the upper chimney bracket with the range hood below. -
Page 13: Step 13 - Install Upper Chimney
Installation STEP 13 STEP 14 Install Upper Chimney Install Filters • Remove the protective film from the upper chimney. • Hold the baffle filter by the two knobs. Carefully slide the upper chimney inside the lower • Place the front of the baffle against the interior front chimney. of the range hood. • Extend the telescopic upper chimney until it reaches •... -
Page 14: Operation
Operation Using the Fan Turning the Light On of Off Press to turn light on Press to begin low and again to turn light speed. Screen will display off. Press to increase speed suction. Screen will display Press while light is increments as 2, 3, 4. -
Page 15: Maintenance
Maintenance Replacing the Light Bulbs Cleaning the Range Hood Unplug the unit from the AC outlet. Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Range Hood Body Remove five screws from the light panel, then remove the light bulbs by popping them out. - Page 16 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1189-01 © 2015 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 16 —...
