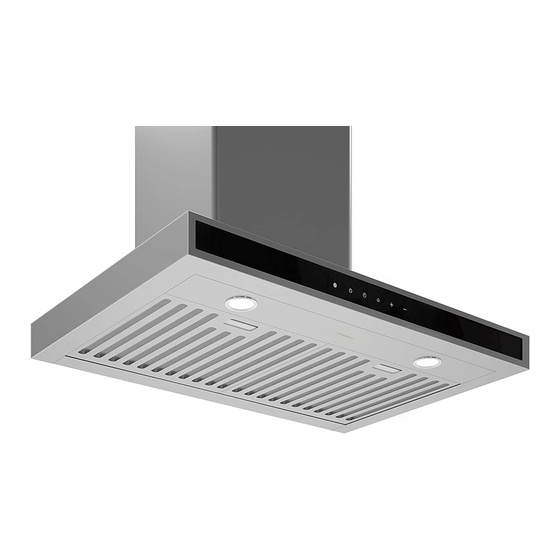

- Page 1 Range Hood WRC630 and WRC636 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1509-01 2018-08-28...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets Dimensions ......................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Damper flap Hood Mounting Bracket Upper Chimney Bracket Main Housing Lower Chimney Bracket Lower Chimney 2 Filters (30 in.) 3 Filters (36 in.) Upper Chimney 4 + 1 Chimney Screws Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 30.3 cm 27.5 cm (11.9 in.) (10.8 in.) 52 - 102 cm (20.4 - 40.1 in.) 52 cm 2.9 cm (20.4 in.) Ø15 cm (1.1 in.) (5.9 in.) 23 cm (9 in.) 6 cm (2.3 in.) 75 / 90 cm (29.5 / 35.4 in.) 50 cm (19.6 in.) Specifications... -
Page 8: Mounting Brackets Dimensions
Mounting Bracket Dimensions Upper Chimney Bracket Lower Chimney Bracket Mounting Bracket Hook — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. IMPORTANT: For the most efficient and quiet operation: • Vent system must terminate to the outside (roof or side wall). • It is recommended that the range hood be vented • DO NOT terminate the vent system in an attic or other vertically through the roof through 6 in. - Page 11 Installation IMPORTANT: electric cook tops and minimum of 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (25.4 for gas stove tops and no higher than 30-inch (76.2 cm) cm x 8.3 cm) rectangular duct must be used to maintain for electric cook tops.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 9 - Venting
Installation STEP 9 Venting • Fix the damper flap on the top vent of hood. • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6 in. round ducting is recommended. Fig #2 STEP 10 Mount Range Hood onto Wall • Hang the range hood on the hooks of the lower... -
Page 14: Step 12 - Connect Ductwork
Installation STEP 12 Connect Ductwork • Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air- tight. • Do not install the duct tape too tightly as this may prevent the damper flaps from opening which will overwork the motor and cause improper functioning of the unit. • Fasten all connections with sheet metal screws and tape all joints with certified aluminum or foil tape. Use caulking to seal exterior wall or roof opening around the cap. -
Page 15: Step 14 - Install Filters
Installation STEP 14 Install Filters To install filters for the following four steps (See Figure # 6): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 16: Operation
056B 056B 056B 056B Operation 056B 056B 056B 056B 056B 056B 013B 056B 056B 056B 056B 013B 013B 056B 056B 056B 056B Decrease Increase Lamp Timer Power 013B 013B 013B 056B 056B 056B Speed Speed 013B 056B 056B 056B 056B 056B NOTE: When the hood has been initially connected to the 056B... -
Page 17: Maintenance
Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace with a 10.2 Volt, 2.5 Watt max, LED lights. breaker. -
Page 18: Range Hood Assembly
Range Hood Assembly Number Part Upper chimney Lowe chimney Upper hood-mounting bracket Lower hood-mounting bracket Hood mounting bracket Cover of electronic box Capacitor Number Part Base of electronic box Upper chimney Power cord Lower chimney Damper Flap Upper hood-mounting bracket Housing assembly Lower hood-mounting bracket Cover of control box... -
Page 19: Assembly
Assembly Circuit Diagram Motor 0V 60Hz Capacitor Main PCB _ _ _ LED Pucks CH B MAX 10.2V 250mA 2.5W Temperature / Humidity Sensor (Optional) Blower Assembly Number Part Left blower housing Impeller Motor Right blower housing Electrical Assembly Number Part Junction box cover Capacitor... -
Page 20: Troubleshooting
Troubleshooting Problem Possible Cause If the range hood or LED light Check if the range hood has been plugged in, make sure that all power does not operate after installation: has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 21: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 22 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1509-01 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 22 —...
