User Manual
V20.08
Model: DGSNFSTCH55WH

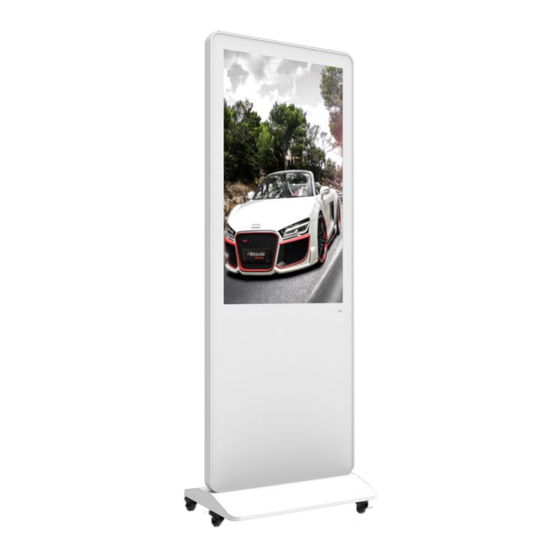

Description: 55" Indoor Floor Standing Digital Signage
Scan QR code to visit
the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1
DISPLAYS2GO
Advertisement
Table of Contents
Related Manuals for Displays2go DGSNFSTCH55WH
Summary of Contents for Displays2go DGSNFSTCH55WH
- Page 1 User Manual V20.08 Model: DGSNFSTCH55WH Description: 55” Indoor Floor Standing Digital Signage Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Edit picture ..........................14 Music ............................15 Factory Reset ..........................16 Screen Rotation ........................... 17 Choose System Language ......................17 Technical Specifications…………………………………………………………………………………………………………19 Troubleshooting……………………………………………………………….……………………………………………………22 Cleaning and Maintenance……………………………………………….……………………………………………………23 Names and Contents of Toxic and Hazardous Substances or Elements in the Product…….………24 FCC Compliance Notice…………………………………………………………………………………………………………25 DISPLAYS2GO... -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 Do not use the Digital Signage in stormy weather, especially when there is lightning; instead, please disconnect the power and antenna plugs to avoid lightning strike. Do not disassemble the Digital Signage without permission, or else it may cause electric shock or fire. Please ask qualified technician for repair. DISPLAYS2GO...
-
Page 5: Assembly And Connection
The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. DISPLAYS2GO... -
Page 6: Interfaces
4. Carefully lift out the unit as shown in Fig. 5 and place it on the shipping box (avoid scratching) (Fig. 6); 5. Assemble the base and the unit with dedicated screws using hex socket wrench as shown in Fig. 6. (Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4) (Fig. 5) (Fig. 6) (Fig. 7) DISPLAYS2GO... -
Page 7: Steps For Assembly With Casters
1. To use this product as a mobile unit, install 4 casters to the metal base by threading them into the holes on the bottom of the base. Tighten all casters with a 14mm wrench. 2. Connect the base and the digital poster with provided screws. Tighten all screws with an Allen wrench. 3. The assembly is finished: DISPLAYS2GO... -
Page 8: Remote Control
To set up OSD menu Note: Press the SETUP button in the main interface to call out the OSD menu. After exiting the playback mode by pressing the STOP button, the playback will start according to the schedule next time. DISPLAYS2GO... -
Page 9: Description Of Basic Operation
When powered on, enter “System Assistant” and press the “ ” button on the remote control, and the Digital Signage enters standby state. About Launch Desktop Description of Desktop Icons Icon Function Main applications Back Home page Background applications Sound - Sound + Status bar hidden DISPLAYS2GO... -
Page 10: Description Of Wallpaper Switch
” in the Home page to enter the “APPS” menu interface (Fig. 2); 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. Click options in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig. 3 DISPLAYS2GO... -
Page 11: Local Settings
Fig. 3 Description of Settings Interface (shown on the right) Icon Function WIFI switch Bluetooth Data usage Display Notifications Sound Apps Screenshot Setting Storage Battery Memory Users Location Security Accounts Google Languages & input Backup & reset Date & time DISPLAYS2GO... -
Page 12: Status Of Menu Bar
Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". Copy the media files to be displayed in the slideshow and paste to the appropriate new folder "Images" or "Videos". Copy and paste music files to "Music" folder. DISPLAYS2GO... - Page 13 Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/flv Music AAC/MP3/AMR/OGG/PCM Step 3: Plug the USB drive into the device and click the DiViEx APP. Step 4: When the screen shows “Copy finished” after “Usb Disk:”, the media files are ready to be displayed. DISPLAYS2GO...
-
Page 14: Settings
NEGATIVE, PSTERIZE, ROTATE, SATURATE, SEPIA, SHARPEN, TEMPERATURE, TINT, VIGNETTE. ⚫ Reset Click “Reset” to remove all the editing you applied to the image. ⚫ Save “ ” Click the icon to save the edited image as a new image. DISPLAYS2GO... -
Page 15: Music
" to delete unwanted pictures Music: List all music files in the Playlist library ⚫ Add music to “Playing List Music” (Background music) from “Playlist Library”. Click “right arrow”, music title will show in the “Playlist Music” on the right. DISPLAYS2GO... -
Page 16: Factory Reset
1. Go to Settings, then click “Backup & reset” (Fig. 1) 2. Click “Factory data reset” (Fig. 2) 3. Choose “Erase SD card”, then click “RESET DEVICE” to get the unit to default settings. (Fig. 3) Fig. 1 Fig. 2 Fig. 3 DISPLAYS2GO... -
Page 17: Screen Rotation
2. Click “Languages”, then click “Add a language” (Fig. 3) 3. You can add the required system language (Fig. 4) 4. Drag the system language you just added up to the front(Fig. 5) Fig. 1 Fig. 2 Fig. 3 DISPLAYS2GO... - Page 18 Fig. 4 Fig. 5 DISPLAYS2GO...
-
Page 19: Technical Specifications
Operating humidity 20~80% RH Non-condensing Maximum operating time (hrs/day) 18 hours Operating system Android 7.1 Processor RK3288, quad-core Functions Built-in memory Decoding resolution 1080P UHD compatible Playback mode Support loop, inter-cut, timer, shim, etc. Touch support IR Touch, 10 points DISPLAYS2GO... - Page 20 USB compatible App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces Headset Net weight 69kg Gross weight 88kg Unit dimensions (W*D*H) 810*70*1980mm Structure Package dimensions (W*D*H) ≈2160*240*950mm Shell material Aluminum profile/sheet metal Shell color Silver/White Language English/Simplified Chinese DISPLAYS2GO...
-
Page 21: Troubleshooting
Stand within 1 foot of the front of the unit and point the remote directly at the sensor (green dot) ❖ If all of the above have been checked and the issue is not resolved, contact a customer service representative. DISPLAYS2GO... - Page 22 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 23: Cleaning And Maintenance
3. Don't place the product under direct sunlight which may shorten the service life of the screen. 4. Clean screen and product by using a glass cleaner. 5. If the product will not be used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. DISPLAYS2GO... -
Page 24: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
To protect the earth, if you do not need this product or its service life expires, please abide by your local Waste Electrical and Electronic Products Recycling and Disposal Regulations or send it to qualified local manufacture for recycling. DISPLAYS2GO... -
Page 25: Fcc Compliance Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This Manual is for reference only and is subject to change without prior notice. DISPLAYS2GO...
