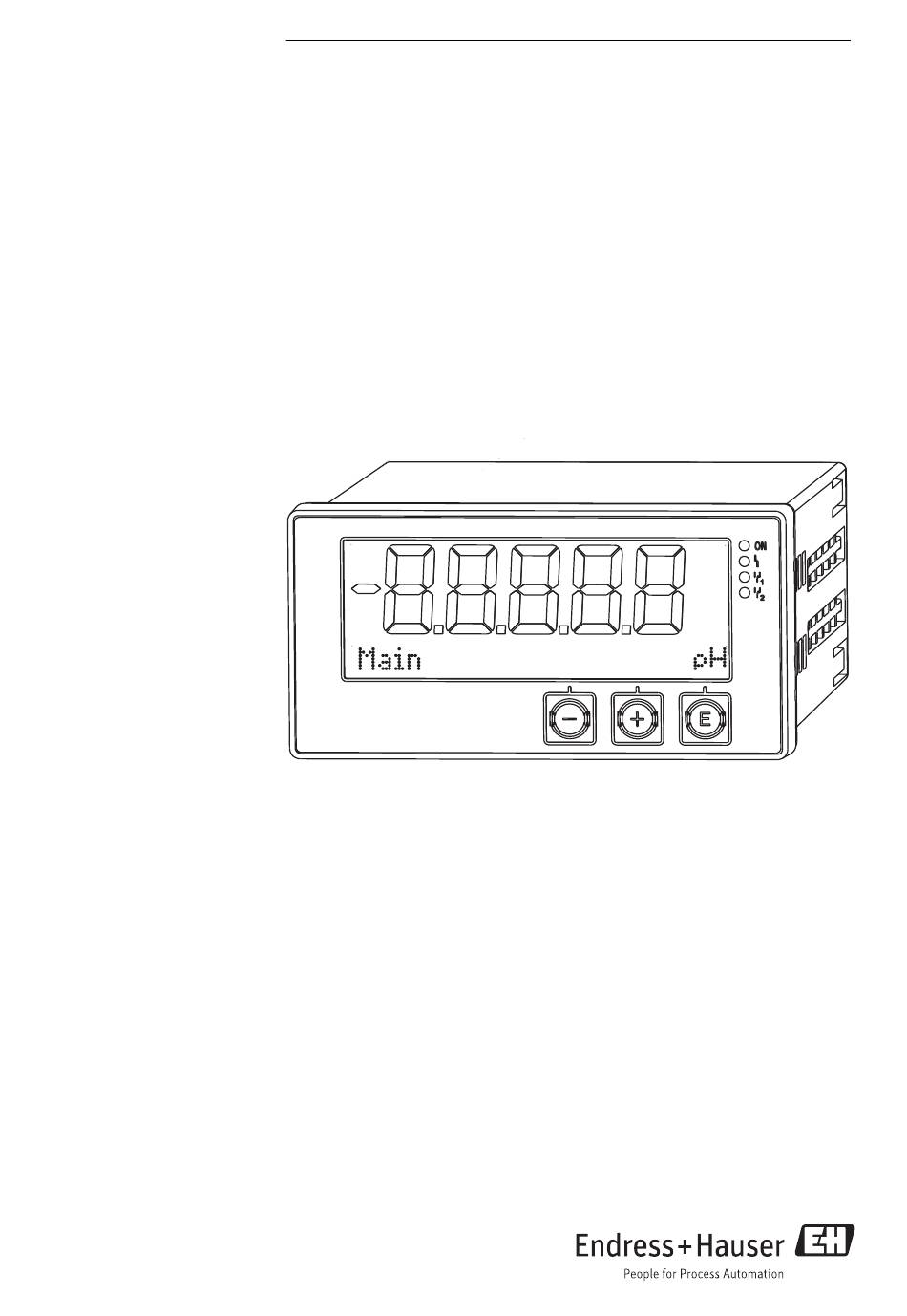

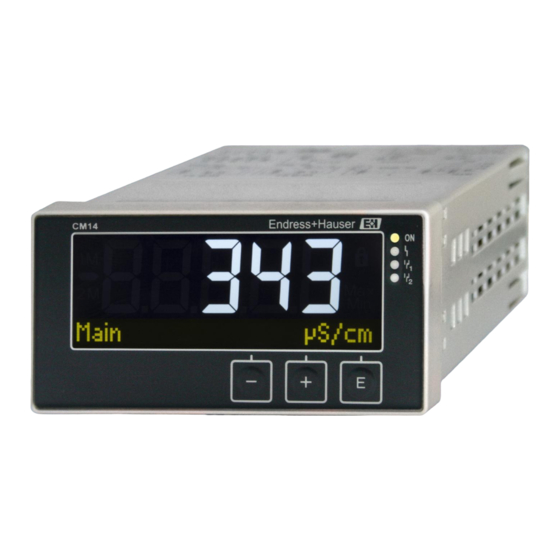

- Page 1 Products Solutions Services BA01032C/09/EN/02.14 71257172 Valid as of FW version: 02.00.xx Operating Instructions CM14 Transmitter, pH and ORP AUTHORIZED DISTRIBUTOR: InstrumentsAndControl.com Houston, Texas USA sales@InstrumentsAndControl.com 281-609-7170...
-
Page 3: Table Of Contents
Device diagnostics (Diagnostics menu) . 21 Calibration and adjustment . . 22 Definitions ......22 Endress+Hauser... -
Page 4: Safety Instructions
Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted. -
Page 5: Designated Use
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing. ‣ If you are unsure, please contact your Endress+Hauser Sales Center for clarification. ‣ If used in an approval-related area, observe the information on the nameplate. - Page 6 Indicates procedures, processes or actions that are permitted. Preferred Indicates procedures, processes or actions that are preferred. Forbidden Indicates procedures, processes or actions that are forbidden. Additional information, tips Reference to documentation Reference to a page in this manual Reference to a graphic Endress+Hauser...
-
Page 7: Identification
Order code, serial number and ID number of the device Power supply Power consumption Output values Temperature range Scope of delivery The scope of delivery of the transmitter comprises: • Transmitter for panel mounting • Operating Instructions • Fastening fixtures Endress+Hauser... -
Page 8: Certificates And Approvals
The device described in these Operating Instructions therefore complies with the statutory requirements of the EU Directives. The manufacturer confirms that the device has been successfully tested by applying the CE mark. An overview of all the certificates and approvals available is provided in the "Technical data" section. Endress+Hauser... -
Page 9: Installation
• Max. viewing angle range: 45° to the left and right from the central display axis. • If the devices are arranged horizontally beside one another in the X-direction, or arranged vertically on top of one another in the Y-direction, the mechanical distance (specified by the housing and front section) must be observed. Endress+Hauser... -
Page 10: Installation Procedure
Post-installation check • Is the sealing ring undamaged? • Is the mounting frame securely engaged on the housing of the device? • Are the threaded rods tightened? • Is the device positioned in the center of the panel cutout? Endress+Hauser... -
Page 11: Wiring
Observe the terminal designation on the rear of the device. Energy-rich transients in long signal lines ‣ Connect suitable upstream overvoltage protection in series. It is permitted to connect a mixture of safety extra low voltage and voltage which poses a shock hazard to the relays. Endress+Hauser... -
Page 12: Connecting The Transmitter
PE Terminal for analog output 1, + Terminal for analog output 1, - Terminal for analog output 2, + Terminal for analog output 2, - R11, R12, R13 Terminal for relay 1 R21, R22, R23 Terminal for relay 2 Endress+Hauser... -
Page 13: Post-Connection Check
Are all of the terminals firmly engaged in their correct slots? Is the coding on the individual terminals correct? Are the mounted cables strain-relieved? Are the supply voltage and signal cables connected correctly? See connection diagram, (→ 3, 12) and on the housing. Endress+Hauser... -
Page 14: Operation
Sections Device diagnostics (→ 21) and Troubleshooting (→ 27). Local operation at the device The device is operated by means of the three keys integrated in the front part of the device A0010420 Endress+Hauser... -
Page 15: Icons
If this icon is selected, the information entered is accepted at the position and the user exits the editing mode. Reject entry. If this icon is selected, the information entered is rejected and the user exits the editing mode. The text configured beforehand remains unchanged. Endress+Hauser... -
Page 16: Operating Functions
The Hold function remains active after discontinuation of the hold condition for an adjustable Hold-release time. The Hold-release time can be set under Setup→Extended setup→System→Hold release. The measured value display is not affected by the Hold function. The Hold symbol is displayed behind the measured value. Endress+Hauser... -
Page 17: Commissioning
When the desired menu is displayed, press the ' E ' key to open the menu. Select the "x Back" option at the end of each menu/submenu to navigate one level higher in the menu structure. Endress+Hauser... -
Page 18: Extended Configuration
Free text Enter the device designation (tag). Max. 16 characters Temp. Unit °C Configures the temperature unit. °F Hold release 0 to 600 s Configuration that specifies how long a device hold continues once the hold condition no longer applies. Endress+Hauser... - Page 19 100 mV Only visible for Main value = mV Stability crit. Delta mV 1 to 10 mV 1 mV Duration 10 to 60 s 20 s Process check Check the process settings. Function On, Off Switch on the process check. Endress+Hauser...
- Page 20 NO or NC relay. Limit values are always assigned to a relay. Each relay can be assigned a channel or calculated value. In "Error" mode, the relay acts as an alarm relay and switches for each error or alarm. Endress+Hauser...
-
Page 21: Device Diagnostics (Diagnostics Menu)
Display the firmware version ENP version Read only Display the version of the electronic type plate Module ID Read only Display the module ID Manufact. ID Read only Display the manufacturer' s ID Manufact. name Read only Display the manufacturer name Endress+Hauser... -
Page 22: Calibration And Adjustment
The service life of a pH glass electrode is limited. One of the reasons for this is the deterioration and aging of the pH-sensitive membrane glass. This aging causes the gel-like layer to change and become thicker over time. Symptoms of aging include: • Higher membrane resistance • Slow response • Decrease in the slope Endress+Hauser... - Page 23 Calibrating with buffers with pH 7.0 and 4.0 is recommended for most applications. You use calibration buffers to perform two-point calibration. The quality buffers supplied by Endress+Hauser are certified and measured in an accredited laboratory. The accreditation (DAR registration number "DKD-K-52701") confirms that the actual values and the maximum deviations are correct and traceable.
-
Page 24: Orp Sensors
ORP buffer. Press "+". Display reads "Insert sensor in med.". Press "+". Display reads "wait for stable value". The current status of the ORP buffer appears on the display. Press "+". Display reads "Save Calib. Data?" Endress+Hauser... -
Page 25: Device Functions For Calibration
Save or discard calibration data? Temperature Calibrate the temperature measurement. T cal. start Read only T cal. Numerical value Save calib data? Yes, No Save or discard calibration data? Maintenance No special maintenance work is required on the device. Endress+Hauser... -
Page 26: Accessories
• Open aperture junction for media with high dirt load • Order depending on version, see Technical Information (TI00435C/07/en) Orbipac CPF82D • ORP compact sensor for installation or immersion operation in industrial water and wastewater • Order as per product structure, see Technical Information (TI00191C/07/EN) Endress+Hauser... -
Page 27: Troubleshooting
• S = Out of specification. The measuring point is being operated outside specifications. Operation is still possible. However, you run the risk of increased wear, a shorter operating life or lower accuracy levels. The cause of the problem should be sought outside the measuring point. Endress+Hauser... - Page 28 • Replace sensor Incorrect sensor type. Sensor type Remedy: Switch to a sensor of the configured type. Sensor electronics defective. Remedy: Sensor elec. • Replace sensor • Contact service Sensor connection. Remedy: Sens. Connect • Replace sensor • Contact service Endress+Hauser...
- Page 29 Possible reasons: • Sensor in air F142 Sensor signal • Sensor defective Remedy: • Check sensor installation • Replace sensor Sensor self-test error. Remedy: F143 Self test • Replace sensor • Contact service F845 Device id Faulty hardware configuration Endress+Hauser...
- Page 30 Remedy: • Check calibration information of the sensor • Calibrate cell constant C850 Simu AO1 Simulation of analog output 1 is active C851 Simu AO2 Simulation of analog output 2 is active C853 Download act. Parameter transmission is active Endress+Hauser...
- Page 31 • Clean sensor and regenerate • Replace sensor Sensor calibration aborted. Main measured value fluctuating. Possible reasons: • Sensor too old M500 Not stable • Sensor dry intermittently • Buffer value not constant Remedy: • Check sensor, replace if necessary • Check buffer Endress+Hauser...
-
Page 32: Spare Parts
Threaded bar for tube fixing clip 105mm 71081257 10.4 Return For a return, e.g. in case of repair, the device must be sent in protective packaging. The original packaging offers the best protection. Repairs must only be carried out by your supplier' s service organization. Endress+Hauser... -
Page 33: Disposal
Memosens data cable or fixed sensor cable, each with cable end sleeves Cable length Max. 100 m (330 ft) 11.2 Output 11.2.1 Output signal 2 x 0/4 to 20 mA active, potentially isolated from the sensor circuits and from each other 11.2.2 Load Max. 500 Ω 11.2.3 Linearization/transmission behavior Linear Endress+Hauser... - Page 34 Relay outputs 11.4.1 Relay types 2 changeover contacts 11.4.2 Relay switching capacity Max. 3 A24 V DC Max. 3 A253 V AC Min. 100 mW (5 V / 10 mA) 11.4.3 Cable specification Cross-section Max. 2.5 mm² (14 AWG) Endress+Hauser...
- Page 35 Terminal for Memosens cable, green, Com A Terminal for Memosens cable, yellow, Com B Terminal for Memosens cable, shield Terminal for alarm output, + Terminal for alarm output, - Terminal for transmitter supply voltage PE Terminal for analog output 1, + Endress+Hauser...
- Page 36 Resolution of current output > 13 bit 11.6.5 Repeatability --> Documentation of the connected sensor 11.7 Installation conditions 11.7.1 Installation instructions Mounting location Panel, cutout 92 x 45 mm (3.62 x 1.77 in) Max. panel thickness26 mm (1 in) Endress+Hauser...
- Page 37 < 2 000 m (6 561 ft) above MSL 11.8.4 Electromagnetic compatibility Emitted interference and interference immunity to EN 61326-1:2006, Class A for industrial areas 11.8.5 Degree of protection Front Front IP65 / NEMA 4X Tube Shock protection IP20 11.8.6 Relative humidity 5 to 85 %, non-condensing Endress+Hauser...
- Page 38 7 Dimensions of the transmitter in mm (in) 11.9.2 Weight 0.3 kg (0.66 lbs) 11.9.3 Materials Housing, casing: Polycarbonate Front membrane: Polyester, UV-resistant 11.9.4 Terminals Max. 2.5 mm² (22-14 AWG; tightening torque 0.4 Nm (3.5 lb in)) mains, relay Endress+Hauser...
- Page 39 11.11.1 mark Declaration of Conformity The product fulfills the requirements of harmonized European standards. Thus it fulfills the legal requirements of the EC Directives. The manufacturer confirms successful testing of the device by affixing to it the mark. Endress+Hauser...
- Page 40 Technical data CM14 Other standards and guidelines • IEC 60529: Degree of protection by housing (IP code) • IEC 61010-1: 2001 Cor 2003 Safety requirements for electrical equipment for measurement, control and laboratory use Endress+Hauser...
-
Page 41: Index
