HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi
Altronix Input Voltage
Model
Number HubWay Unit
HubWayAv *24VAC/28VAC
HubWayAv2 *24VAC/28VAC
HubWayDv *24VAC/28VAC
HubWayDvi *24VAC/28VAC 12VDC electronically isolated 12VDC cameras without isolation
*Based on camera load and structured cable length.

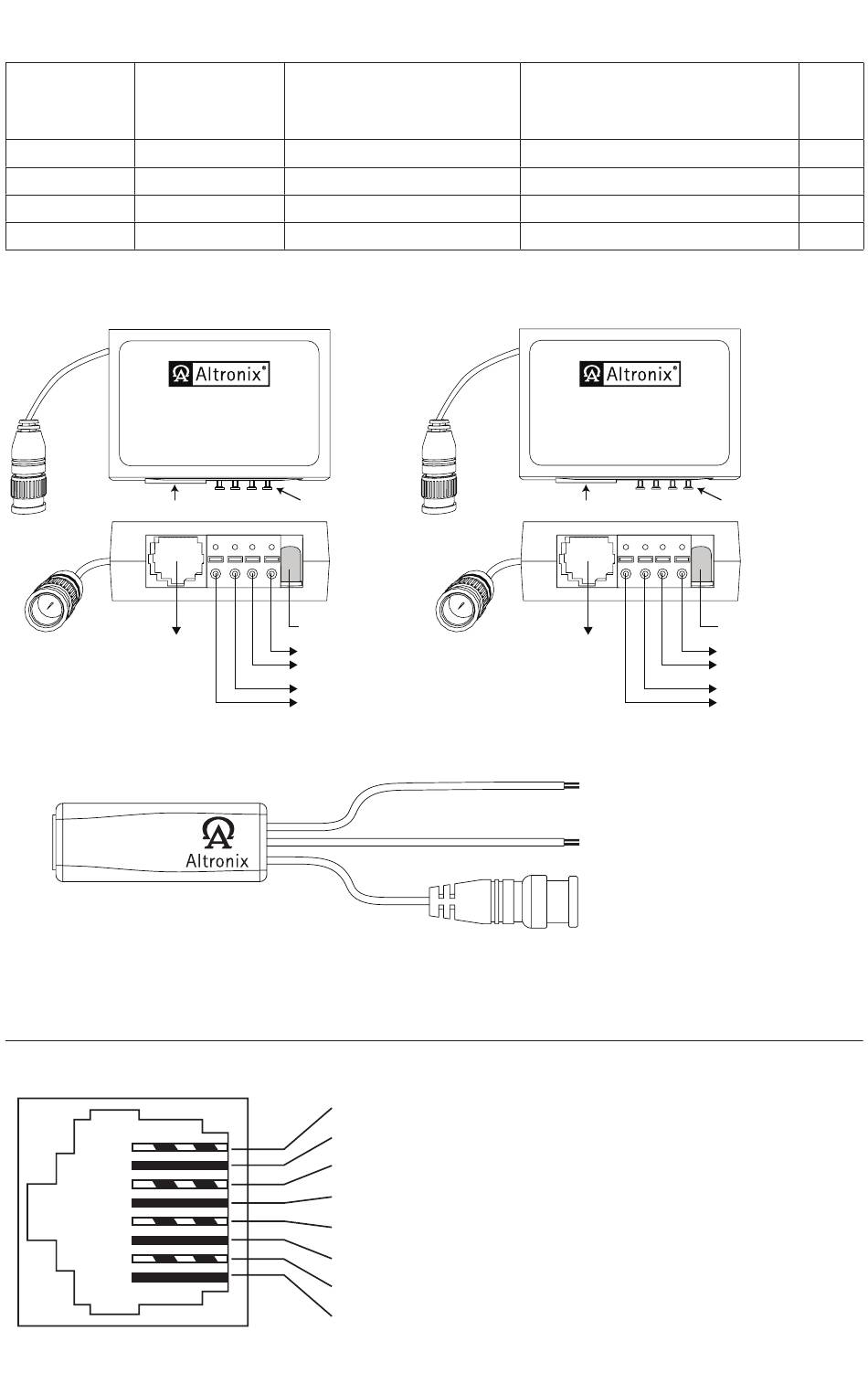

Fig. 2
Fig. 2a
VIDEO
HubWayAv
VIDEO BALUN/COMBINER
CAT5
RJ45 Jack
Fig. 2b
To BNC
Structured
Connector
Cable from
of Camera
HubWay8CD
or
HubWay16CD
HubWayAV2
Fig. 2e
Cat5
back to
HubWay
or
HubSat
HubWayAv/HubWayAv2 passes AC voltage from pins 4, 5, 7, 8 to terminals marked [AC Power] (Fig. 3, pg. 5).
HubWayDv/HubWayDvi converts AC voltage to DC voltage from pins 4, 5, 7, 8 to terminals marked [– 12VDC +]
(Fig. 3, pg. 5).
Fig. 3 CAT-5 Structured Cable Wiring Color Codes and PIN Configurations
HubWay8DS
Video Balun/Combiners:
from
Output Voltage to Camera
*24VAC/28VAC
*24VAC/28VAC
AC
+ DATA-- POWER
Wire
Connectors
Green Power LED
AC Power
to Camera
--
Data to
+ Camera
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
12VDC
Fig. 2c
VIDEO
Fig. 2d
To BNC
Connector
of Camera
Power to Camera
Data to Camera
Video from Camera
Camera Type
*24VAC/28VAC
*24VAC/28VAC
12VDC cameras
HubWayDv
VIDEO BALUN/COMBINER
CAT5 + DATA-- -- 12VDC+
RJ45 Jack
Structured
Cable from
HubWay8CD
or
HubWay16CD
Power
LED
Green
N/A
Red
Red
* Also Available as:
HubWayDvi
Video Balun/
Combiner
for non-isolated
12VDC cameras
Wire
Connectors
Red Power LED
+
12VDC Power
to Camera
--
--
Data to
+ Camera
- 5 -
