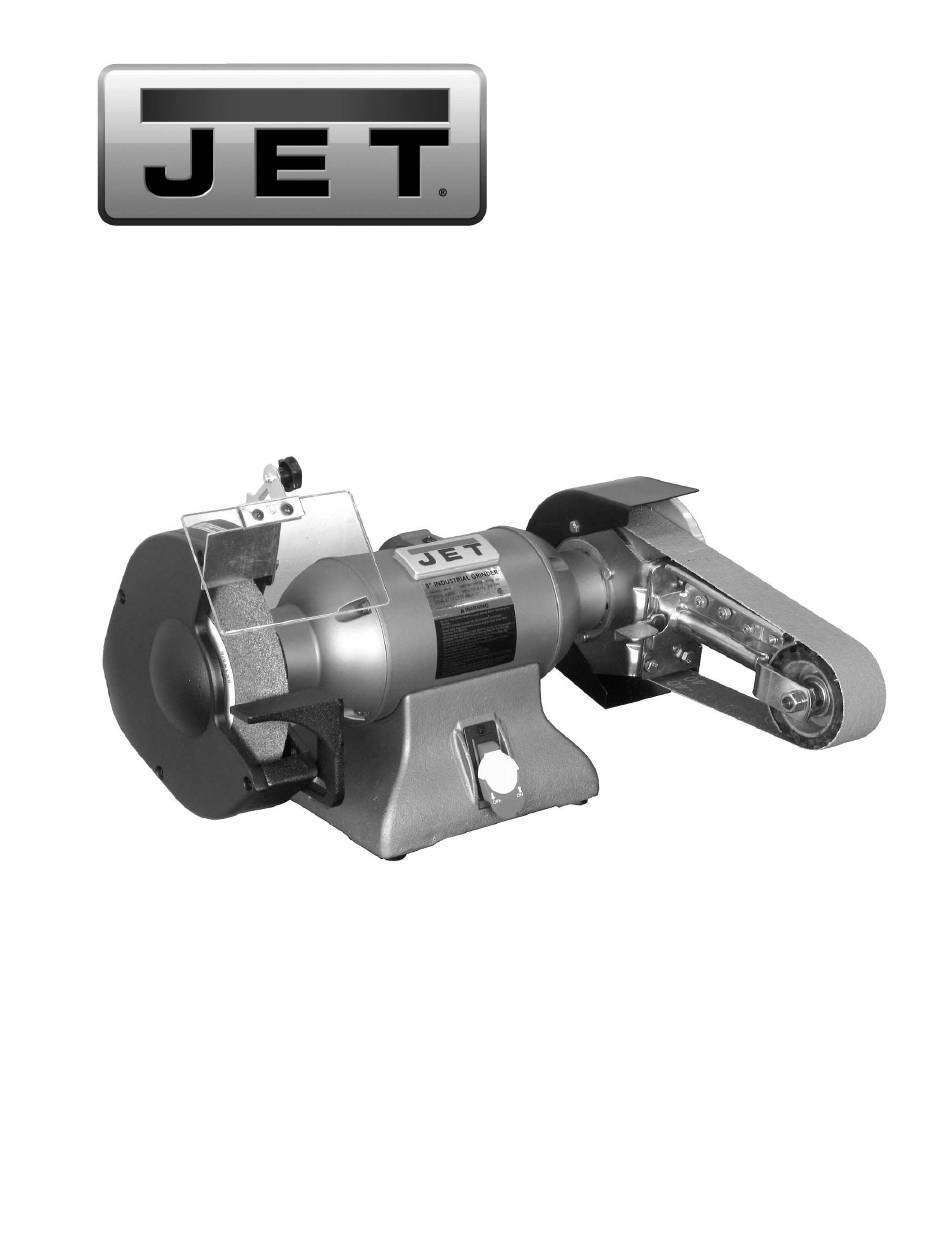

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Industrial Bench Grinder with Multitool Model IBGM-8 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-577208 Ph.: 800-274-6848 Edition 2 01/2018 www.jettools.com Copyright © 2018 JET...
-
Page 2: Important Safety Instructions
Do not use this machine for other than its completion of maintenance. intended use. If used for other purposes, JET disclaims any real or implied warranty and 18. Check damaged parts. Before further use of... - Page 3 26. Use recommended accessories. The use of 35. Never stand on tool. Serious injury could occur improper accessories may cause risk of injury if the tool is tipped or if the cutting tool is to persons. unintentionally contacted. 27. Turn off the machine before cleaning. Use a 36.
-
Page 4: Table Of Contents
2.0 Table of contents Section Page 1.0 IMPORTANT SAFETY INSTRUCTIONS ....................... 2 2.0 Table of contents ............................4 3.0 About this manual ............................5 4.0 Specifications ..............................6 4.1 Mounting hole dimensions .......................... 7 5.0 Setup and assembly ............................8 5.1 Unpacking .............................. -
Page 5: About This Manual
The operator is encouraged to familiarize himself/herself with ANSI B7.1 – Safety Requirements for Use, Care and Protection of Abrasive Wheels. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Specifications
4.0 Specifications Table 1 IBGM-8 Model number Stock number 577208 Motor and Electricals Motor type induction, capacitor start, centrifugal switch Horsepower 1 HP Phase single Voltage 115/230V (prewired 115V) Cycle 60 Hz Listed FLA (full load amps) 11/5.5 A Start capacitor... -
Page 7: Mounting Hole Dimensions
SFPM = surface feet per minute The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Setup And Assembly
(Check grinder first to verify if any parts have been pre-mounted.) Notify your dealer or JET if parts are missing or there is shipping damage. Do not discard any packing material until grinder is assembled and operating properly. -
Page 9: Assembling Eye Shield Bracket To Spark Guard
dust port, using a 2-in. diameter hose with hose 5.5 Assembling eye shield bracket to clamp (not provided). spark guard Refer to Figure 5-2. Note: Spark guard (A) and eye shield bracket (D) are marked L for left side assembly. Assemble the spark guard and eye shield bracket using Figure 5- 2 as a guide. -
Page 10: Installing/Replacing Abrasives
Use only 3-wire extension cords that have 3-prong The IBGM-8 Grinder with Multi Tool is prewired for grounding plugs and 3-pole receptacles that accept 115V power, and is supplied with a plug designed the tool's plug. -
Page 11: Extension Cords
6-1. A grounding plug may be installed, that looks like the plug illustrated in D; or the grinder may be The IBGM-8 with Multitool attachment offers “hard-wired” to a panel, provided there is a multiple working methods: disconnect for the operator. -
Page 12: Precautions
8.0 Adjustments 8.1 Eye Shield Tilt Adjustment Loosen lock knob (A , Figure 10). Adjust eye shield (A ) to desired tilt angle. Tighten lock knob (A Figure 7-1: safety key 7.2 Precautions 7.2.1 Wheel grinding Before starting grinder, turn grinding wheel by hand to verify that it is clear of obstruction and turns freely. -
Page 13: Platen Adjustment
New wheels sometimes require dressing to make them round. See sect. 9.5. 9.3 Changing Wheels The JET bench grinder comes equipped with a general purpose grinding wheel. Wheels vary according to types of abrasive, hardness, grit size, Figure 8-2: belt tracking and structure. -
Page 14: Wheel Balancing
Unscrew arbor nut (C) with wrench. NOTE: of the current layer of abrasive to expose a fresh Left-hand threads; turn nut clockwise to surface. A wheel dresser is also used to “true” a loosen. wheel; that is, to make the grinding surface parallel to the tool rest, so the entire wheel face presents Remove outer flange (D), wheel (E), and inner an even surface to the work piece. -
Page 15: Wire Wheel Brushes
9.7 Cleaning Turn on grinder and allow it to reach operating speed. Set wheel dresser on tool rest and bring it into Metal shavings may still be hot contact with wheel by raising its handle. Hold from recent grinding operations. Make sure the dresser firmly. -
Page 16: Troubleshooting Jigm-8 Grinder With Multitool
10.0 Troubleshooting IBGM-8 Grinder with Multitool Table 4 Symptom Possible Cause Correction * Motor will not start. Not connected to power source. Verify that plug is properly inserted into receptacle. Switch in Off position. Make sure safety key is inserted. - Page 17 Symptom Possible Cause Correction * Motor slows. Motor overloaded. Reduce load on motor; do not press so hard when grinding. Low line voltage. Check power line for proper voltage. Loose connections. Inspect connections. Frequent fuse or circuit Motor overloaded. Reduce load on motor; do not press so breaker failure.
-
Page 18: Optional Accessories
414811 0.6M Hose, Heat Resistant, ø2.5 x 24.4 in. 12.0 Replacement Parts Replacement parts are listed on the following pages. To order parts for the main grinder unit or reach the JET service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. -
Page 19: Jigm-8 Grinder With Multitool - Exploded View
12.1.1 IBGM-8 Grinder with Multitool – Exploded View... -
Page 20: Jigm-8 Grinder With Multitool - Parts List
54-7 ... IBG8-54-7 ....Square Nut .............. M6 ......... 1 100 .... IBG8-100 ....Eye Shield Assembly – Left (includes 31-38,53) ........... 1 ....LM000300 ....ID/Warning Label, JIGM-8 (not shown) ............1 ....JET-92 ....... JET Logo (not shown) ..........92x38mm ...... 1... -
Page 21: Wiring Diagram For Jigm-8 Grinder With Multitool
MultiTool Attachment: ....577115 ...... Rubber Contact Wheel (not shown) ......2” x 3-1/2” ..... 1 For other replacement parts on the Mulitool attachment, contact Multitool at 800-660-0880. 13.0 Wiring Diagram for IBGM-8 Grinder with Multitool... -
Page 22: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 23 This page intentionally left blank.
- Page 24 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
