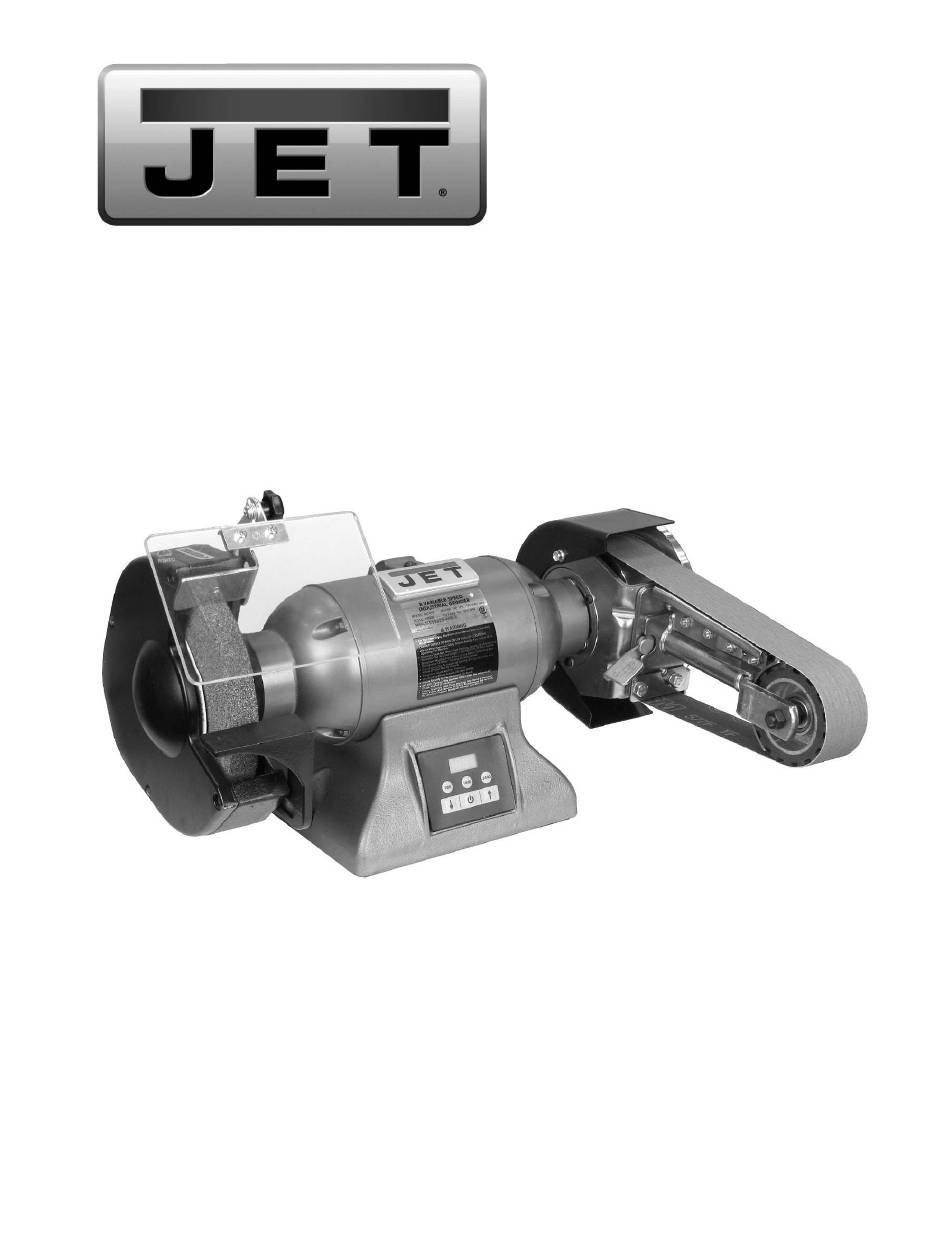

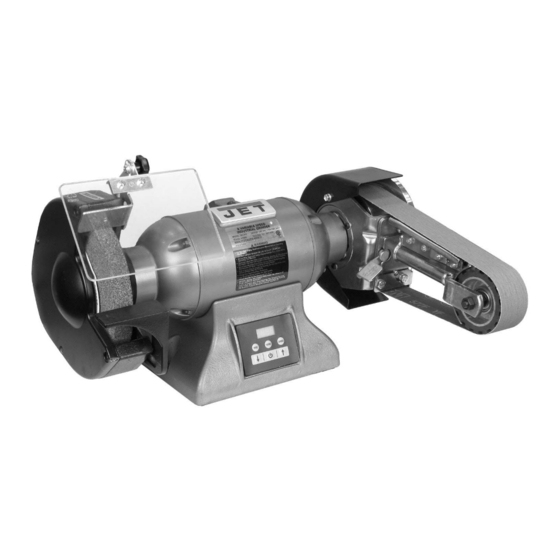

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 8-inch Industrial Bench Grinder with Multitool Attachment Model IBGM-8VS 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-577218 Ph.: 800-274-6848 Edition 1 05/2018 www.jettools.com Copyright © 2018 JET...
-
Page 2: Important Safety Instructions
Do not use this bench grinder for other than its will operate properly and perform its intended intended use. If used for other purposes, JET function. Check for alignment of moving parts, disclaims any real or implied warranty and holds... - Page 3 29. Never leave the grinder running unattended. Turn 37. Do not overtighten wheel nut. power off and do not leave machine until wheels 38. Frequently clean grinding dust from beneath come to a complete stop. grinder. 30. Remove loose items and unnecessary work 39.
-
Page 4: Table Of Contents
11.0 Optional accessories ..........................18 12.0 Replacement Parts ............................. 18 12.1.1 IBGM-8VS Variable Speed Grinder w/Multitool Attachment – Exploded View ........19 12.1.2 IBGM-8VS Variable Speed Grinder w/Multitool Attachment – Parts List ..........20 13.0 Electrical Connections – IBGM-8VS Grinder ..................... 21... -
Page 5: About This Manual
The operator is encouraged to familiarize him/herself with ANSI B7.1 – Safety Requirements for Use, Care and Protection of Abrasive Wheels. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Specifications
4.0 Specifications Table 1 IBGM-8VS Model number Stock number 577218 Motor and Electricals Motor type Totally enclosed fan-cooled induction with inverter Horsepower (true output) Motor phase Voltage 115/230V (prewired 115V) single phase Input power Cycle 60 Hz Listed FLA (full load amps) 7 / 3.5 A... -
Page 7: Mounting Hole Dimensions
= not applicable The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Setup And Assembly
(Check grinder to verify if any parts have been pre- mounted.) Notify your dealer or JET if parts are missing or there is shipping damage. Do not discard any packing material until grinder is assembled and operating properly. -
Page 9: Assembling Eye Shield Bracket To Spark Guard
5.5 Assembling eye shield bracket to spark guard Refer to Figure 5-2. Note: Spark guard (A) and eye shield bracket (D) are marked L for left side assembly. Assemble the spark guard and eye shield bracket using Figure 5- 2 as a guide. Figure 5-2: bracket to spark guard 5.6 Installing spark guard/bracket Refer to Figure 5-3. -
Page 10: Installing/Replacing Abrasives
Use only 3-wire extension cords that have 3-prong The IBGM-8VS Grinder is prewired for 115V single grounding plugs and 3-pole receptacles that accept phase power, and is supplied with a plug designed the tool's plug. -
Page 11: Extension Cords
Make sure the tool is connected to an outlet having the same configuration as the plug. No adapter is The IBGM-8VS with Multitool attachment offers available or should be used with this tool. If the tool multiple working methods: must be reconnected for use on a different type of •... -
Page 12: Precautions
When wheel becomes loaded or dull, use an When OFF button is pushed, approved grinding wheel dresser and dress the wheels may take a few moments to the wheel face. completely stop. 7.2.2 Belt and Disc grinding The grinder will automatically shut off after 10 Remove belt before grinding on disc, to minutes of inactivity. -
Page 13: Belt Tracking
See sect. 9.5. 9.3 Changing wheels Figure 8-2: belt tracking The JET bench grinder comes equipped with a 8.5 Platen adjustment general purpose grinding wheel. Wheels vary according to types of abrasive, hardness, grit size, The platen should be set so that it just contacts and structure. -
Page 14: Wheel Balancing
See sect. 9.5. 9.4.2 Correcting side-to-side wobble The IBGM-8VS Grinder has large, machined flanges, making wobble unlikely if a good quality grinding wheel is used. Should a wheel exhibit need for adjustment: Loosen nut and rotate the outer flange a little. -
Page 15: Dressing The Wheel
9.5 Dressing the wheel 9.7 Cleaning Below is a general procedure for dressing a Metal shavings may still be hot grinding wheel. from recent grinding operations. Make sure shavings and debris are cold before cleaning Use safety glasses or face the grinder. -
Page 16: Troubleshooting Ibgm-8Vs Bench Grinder W/Multitool
10.0 Troubleshooting IBGM-8VS Bench Grinder w/Multitool 10.1 General electrical and mechanical problems Table 4 * WARNING: Some corrections may require a qualified electrician. Symptom Possible Cause Correction * Motor will not start. Not connected to power source. Verify that plug is properly inserted into receptacle. -
Page 17: Digital Readout Error Codes
Symptom Possible Cause Correction * Motor slows. Motor overloaded. Reduce load to motor; do not press so hard. Low line voltage. Check power line for proper voltage. Loose connections. Inspect connections. Frequent fuse or circuit Motor overload. Reduce load to motor; do not press so breaker failure. -
Page 18: Optional Accessories
Number of your machine available when you call will allow us to serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 19: Ibgm-8Vs Variable Speed Grinder W/Multitool Attachment - Exploded View
12.1.1 IBGM-8VS Variable Speed Grinder w/Multitool Attachment – Exploded View... -
Page 20: Ibgm-8Vs Variable Speed Grinder W/Multitool Attachment - Parts List
100 .... IBG8-100 ....Eye Shield Assembly – Left (includes 31-38,53) ........... 1 ....JET-92 ....... JET Logo (not shown) ..........92x38mm ...... 1 ....LM000341 ....ID/Warning Label, IBGM-8VS (not shown) ............ 1 MultiTool Attachment: ....577115 ...... Rubber Contact Wheel (not shown) ......2” x 3-1/2” ..... 1... -
Page 21: Electrical Connections - Ibgm-8Vs Grinder
13.0 Electrical Connections – IBGM-8VS Grinder... -
Page 22: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 23 This page intentionally left blank.
