Packing List
In addition to this guide, the package includes the following items:
I-2533T-FD
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web

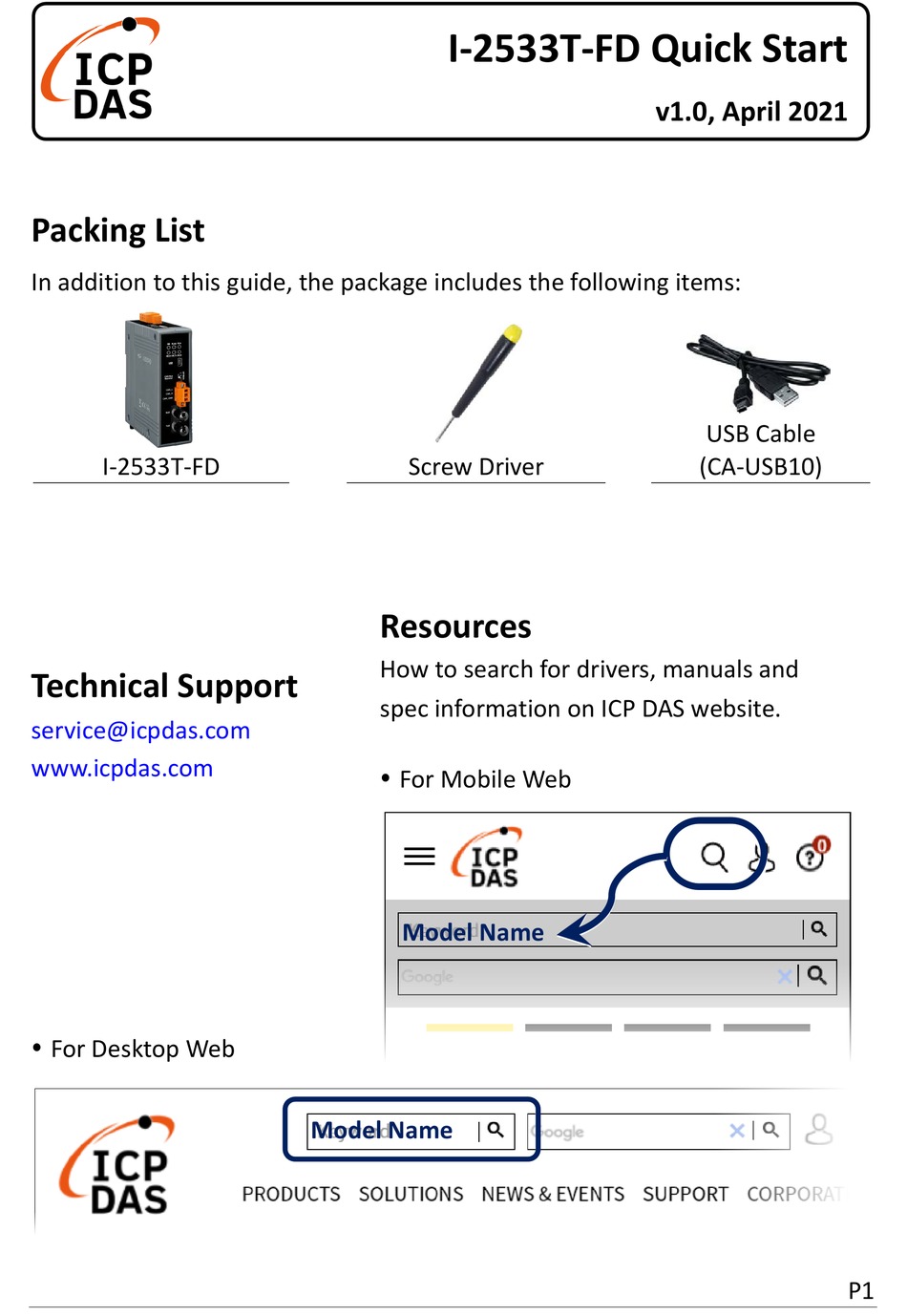

I-2533T-FD Quick Start
Screw Driver
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
v1.0, April 2021
USB Cable
(CA-USB10)
P1
Advertisement
Related Manuals for ICP DAS USA I-2533T-FD
Summary of Contents for ICP DAS USA I-2533T-FD
- Page 1 I-2533T-FD Quick Start v1.0, April 2021 Packing List In addition to this guide, the package includes the following items: USB Cable I-2533T-FD Screw Driver (CA-USB10) Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
-
Page 2: Hardware Installation
--------------------------------------------------------------------- Hardware Installation Before using I-2533T-FD device, some things must be done. Step 1: Prepare one pair of I-2533T-FD Step 2: Set the CAN/CAN FD baud rate and check the module group ID setting of each I-2533T-FD Switch 10-pin dip switch... - Page 3 OFF: Use Arbitration/ Data Phase bit rate setting by dip switch setting Group ID value 8 9 □ □ Module’s ■ □ 8 ~ 9 group ID □ ■ ■ ■ Firmware Into firmware upgrade mode. upgrade OFF: mode Into normal operating mode. Step 3: Determine if the terminal resistor is needed or not Check the application structure, and determine if the terminal resistor is needed or not.
- Page 4 Generally, if your application is as follows, we recommend you to enable the terminal resistor. If your application is like the structure as follows, the terminal resistor is not needed.
- Page 5 Step 4: Connect the fiber port, CAN port, power line and frame ground of these I-2533T-FD. The pin assignment and wire connection are as follows. When finished, run your application with the I-2533T-FD. Port Name Description Used for configuration utility CAN_L CAN_Low, signal line of CAN port.
-
Page 6: Utility Tool
The software is located at: https://www.icpdas.com/en/download/show.php?num=2454& model=I-2533T-FD Step 2: Setting up I-2533T-FD module 1. Connect the PC available USB port with the USB port of the I-2533T-FD. Users can find the communication cable (CA-USB10) in the product box. 2. Execute the I-2533CS-FD Utility tool. - Page 7 Step 3: Connect to I-2533T-FD module Press the “Refresh” button to scan and list all the necessary I-2533T-FD modules on “Module Name” location. Then select the necessary I-2533T-FD module and press “Connect” button to start to connect with it. Step 4: Configure user-defined CAN/CAN FD baud rate 1.
- Page 8 “SP”: CAN/CAN FD arbitration/data phase bit rate sample point. Suggested range: 75.00 ~ 87.50 % 2. In order to use the “User-Defined CAN Baud Rate Settings” paramters, user need to set the pin7 of “10-pin dip switch” to ON position. Otherwise, the CAN “Arbitration Bit Rate” and “Data Phase Bit Rate”...
