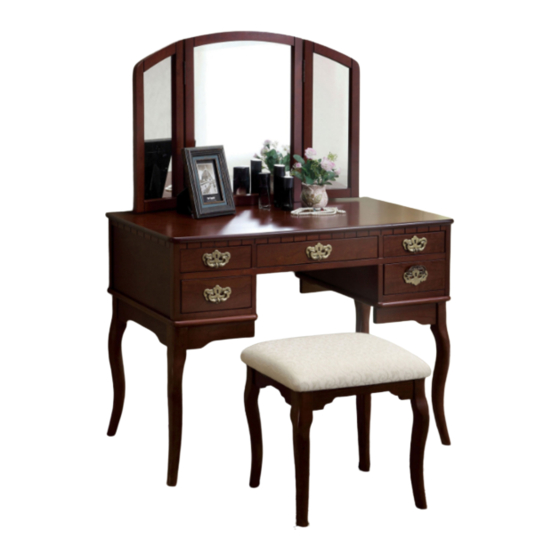

Furniture of America CM-DK6405 Assembly Instructions

Download this manual

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM-DK6405

DIFFICULT

Page 1 of 5

Tools Required for Assembly:

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

(Included)

(Not Included)

Rev.14-09-29

Need help?

Do you have a question about the CM-DK6405 and is the answer not in the manual?

Page 1 Assembly Instructions CM-DK6405 ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some Phillips Screwdriver products, two persons are recommended.
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 16 pcs Vanity Table Bolt 5/16”x2” #B x 16 pcs #2 x 4 pcs Lock Washer...
Page 4 #A x 8 pcs #B x 8 pcs #C x 8 pcs Turn right (clockwise) to tighten With the help of another person, carefully place the vanity table (#1) facing down on a protected surface. Align the 4 table legs (#2) with the pre-drilled holes on the corners of the vanity table (#1).
Page 5 Carefully align the 2 mirror support rails (#4) assembled onto the mirror (#3) with the pre-drilled holes on the back of the vanity table (#1). Secure 4 screws (#D) into the 2 mirror support rails (#4) using a Phillips screwdriver to tighten them to the vanity table (#1). #D x 4 pcs Turn right (clockwise) to tighten Carefully place the chair seat (#5)
