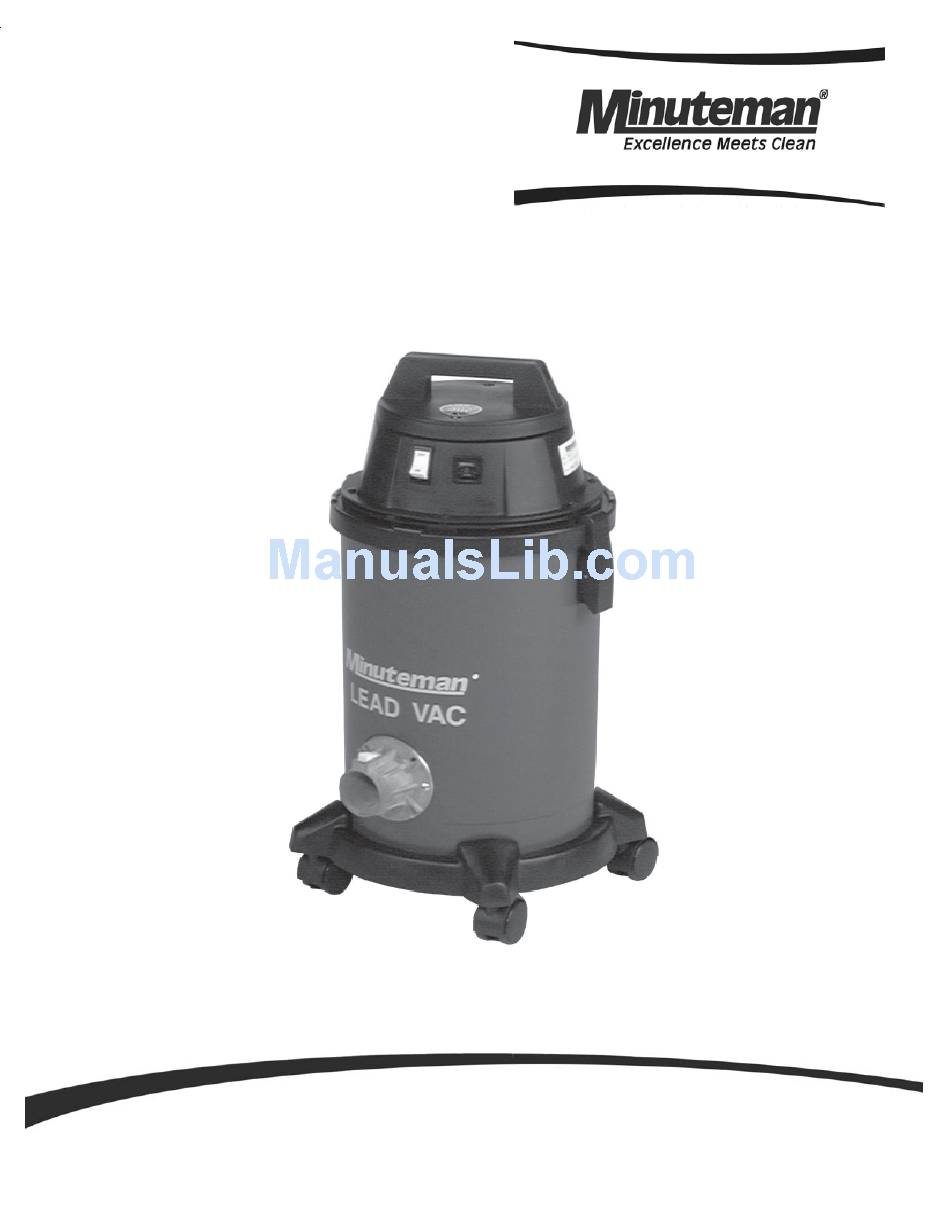

- Page 1 Parts and Instruction Manual Lead Vacuum Dry Only...
- Page 2 This manual is furnished with each new MINUTEMAN Lead Vacuum. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ·...
-
Page 3: Table Of Contents
Changing Of Prefilters ........................6 Tools and Accessories ........................7 Exploded Views ..........................8 Lid Assembly ........................... 8 Lid Assembly BOM .......................... 9 Tank Assembly ..........................10 Bag Assembly ..........................11 Minuteman International Made Simple Commercial Limited Warranty ........12 Parts and Instruction Manual... -
Page 4: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. -
Page 5: Inspection
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL 115 Volt This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 6: User Maintenance Instructions
WARNING This vacuum may contain potentially hazardous dust depending on its application. Special handling of contaminated disposal bags and filters is recommended. Disposal must be in compliance with local EPA regulations USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. -
Page 7: Operation And Filter Care Instructions

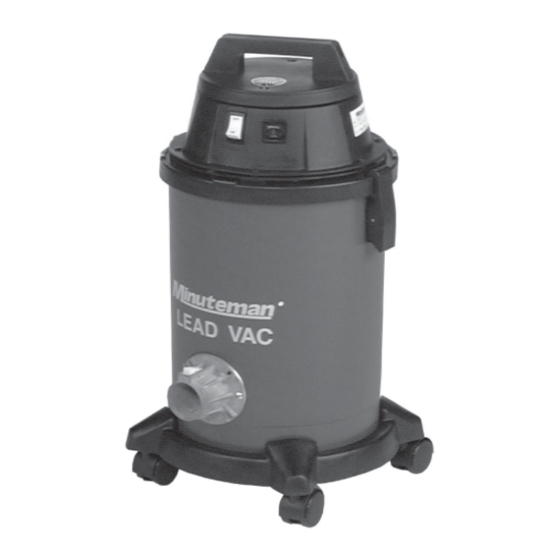

Operation and Filter Care Instructions The Minuteman Lead Vacuum has been specifically designed to clean up lead dust. Special filters reduce the incidence of airborne dust that would be created by any other method of cleaning. • During the removal of hazardous dust, do not sweep, scoop, shovel, or in any manner handle other than by vacuuming. -
Page 8: Changing The Black Foam Prefilter
(Cont’d) Procedures In Removing Contaminated Filters and Cleaning of Contaminated Tank 6. Slowly pull the top of the plastic bag upwards. When you have the plastic bag fully extended upwards, slowly squeeze the plastic bag closed to avoid trapping excess air. Twist the plastic bag until enough plastic can be tied into a knot. -
Page 9: Filter Assembly
Filter Assembly 1) Intake 2) Disposable Paper Collector Bag, 384003PKG (10/pkg) 3) Disposable Paper Filter Protector, 761177PKG (10/pkg) (Optional) 4) Cloth Filter w/Frame 5) PreFilter 6) U.L.P.A. Filter 7) Safety Interlock 8) Exhaust Changing Of Prefilters In order to prolong the efficiency and performance of the critical filter it is recommended that each pre-filter, debris bag and paper filter protector be changed every time the debris bag is full. -
Page 10: Tools And Accessories
Tools and Accessories Part No. Description 829563 Dust Brush Complete 829562 Crevice Tool 1 1/4” (32 mm) 829565MCH Telescoping Wand Tube 829849 Hose Asy 1 1/4” x 8’ (32 mm x 2.4 m) 390013 Hose Cuff 762241 Hose 829566 Curved Hand Tool 829561 Combination Floor Tool 829564... -
Page 11: Exploded Views
Exploded Views Lid Assembly Parts and Instruction Manual Page 8... -
Page 12: Lid Assembly Bom
Lid Assembly BOM Item Part No. Qty. Description 110029 Filter-ULPA, X829 Series 110030PKG Prefilter Sleeve, 829/839, Pkg of 6 290017 Molded Vac Mtr Gasket 290031 Lid Gasket 294/6 Diecut 290032 Dome Seal 296 380001-4 Vac Motor 120V (ECM) w/ Wires 380054 Vac Motor 240V 380005... -
Page 13: Tank Assembly
Tank Assembly Item Part No. Qty. Description 390087 Gasket Diecut VNN 390110 Intake Assembly Aluminum 460109 Tank 6 Gal Low Intake 460114 Latch Poly Tank 460115 Dolly, Plast Vac Tnk Blk 460118 Caster 711160 SCR Hi/Lo #10 x 5/8 Zinc 712320 WSR .22 x .45 x .048 NYL 712638... -
Page 14: Bag Assembly
Bag Assembly Item Part No. Qty. Description 711909 Rivet Pop .19x.44 AL 712764 Washer #10 SS 760244MCH Plastic Bag Frame w/Hole 760406PLT Bag Frame 6 gal Plated 805040 Bag, Cloth Bag Only 6G 800056 Bag Asy w/Frame 6gal Parts and Instruction Manual Page 11... -
Page 15: Minuteman International Made Simple Commercial Limited Warranty
A potential health hazard exits without original equipment replacement. All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be. Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.
