Channel EQ

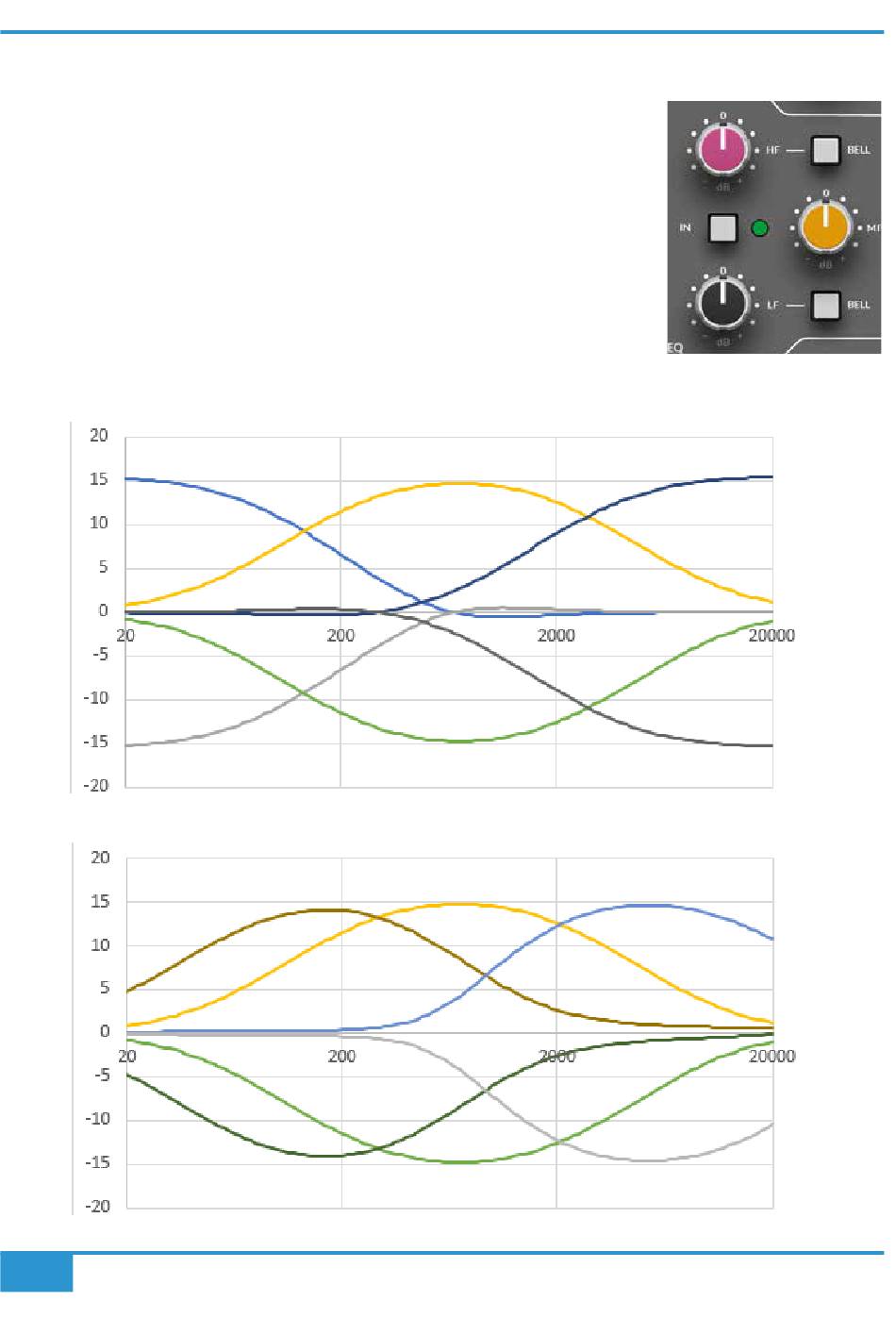

The channel EQ on BiG SiX has its roots in SSL's classic E series EQ. It is a gentle, broad stroke
three-band design with high and low shelving filters at 3.5 kHz and 60 Hz, adjustable from +15
dB to -15 dB of gain and a fixed Mid Frequency control at 700 Hz. The HF and LF bands can be
independently switched between shelving and bell curves using the BELL switch. A useful feature
of the bell curves is that they change centre frequency to operate at 5 kHz and 200 Hz giving
greater versatility from the HF and LF sections.
The EQ is switched 'in' circuit or completely bypassed using the IN switch. This small detail
guarantees no influence on the channel's exceptionally flat frequency response from the tolerance
of the EQ control centre detent positions.
HF & LF Shelf & MF Frequency Response
HF & LF Bell & MF Frequency Response
