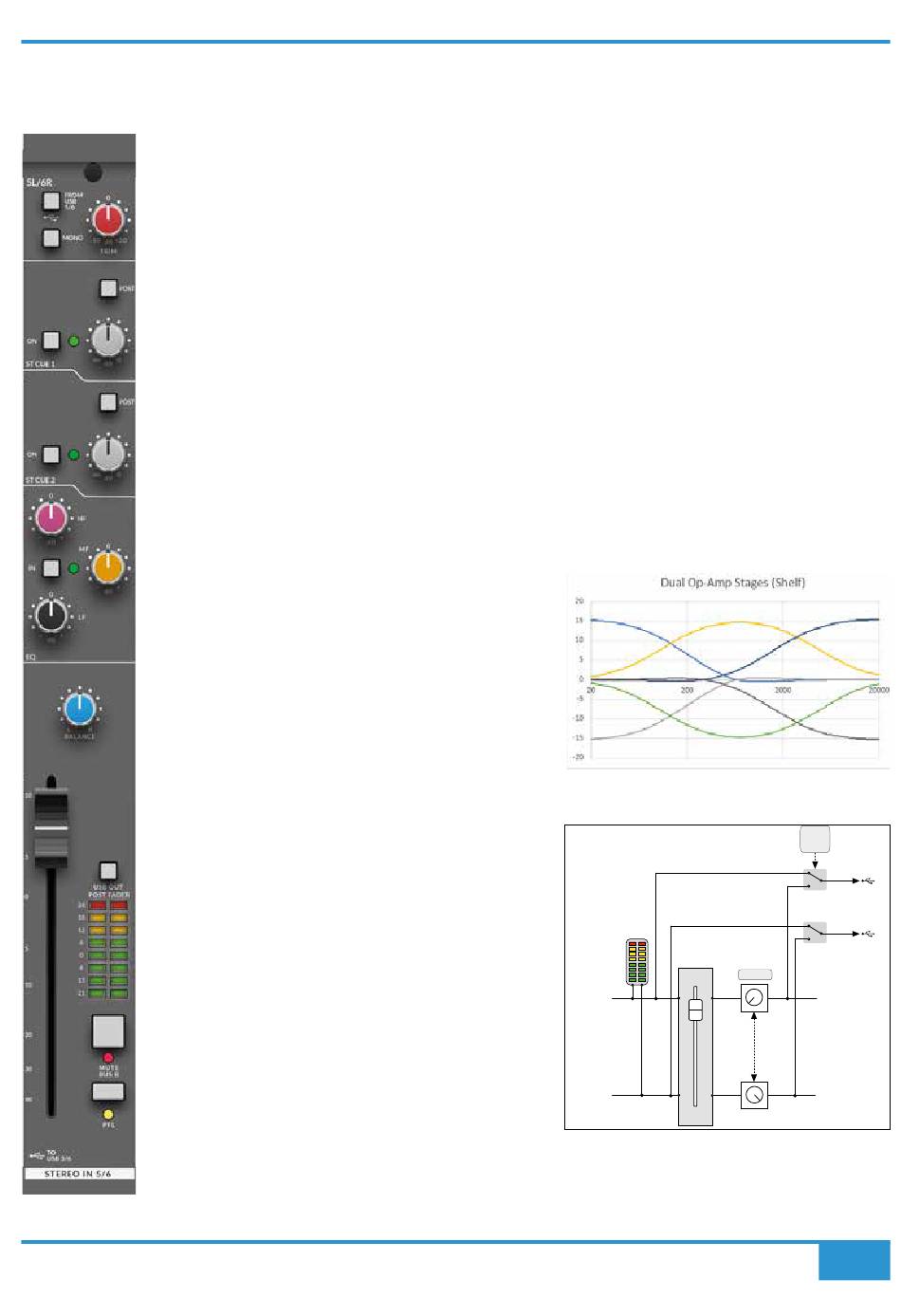

Stereo channels

SuperAnalogue Stereo Input

The inputs to the stereo channels are on ¼" TRS balanced jack connectors on the rear of the unit. These are
labelled 5L, 6R, 7L, 8R, 9L, 10R, 11L and 12R for the four pairs of inputs. Optionally the stereo channel inputs
can be switched from DA converters from relevant USB returns by selecting the USB switch at the top of the
strip. The USB input is before the input Trim gain control. The Trim control adjusts the stereo Line amp gain from
-10 to +20 dB with a centre detent at unity gain.
The rear TRS Jack inputs have an automatic 'Mono From Left' feature, i.e. if only a single jack connector is used
in the Left input, then the same signal is fed to the Right input. When a jack is inserted into the right input, the
Left and Right signals are passed separately through the channel. Additionally, there is a front panel MONO
switch which mono's both left and right inputs.

Stereo Cue Sends

There are two stereo Cue sends on each stereo channel with independent level controls. These can be switched
on or off using the ON switch; a green LED indicates that the Cue send is switched on.
The sends are fed from channel pre-fader post-insert, but can be switched to post fader with the individual
POST switches. The channel signal is unity gain to the Cue Bus when the Send Level control is fully clockwise.

Stereo EQ

The stereo EQ is similar to the channel EQ in that it's a gentle,
broad stroke three-band design with high and low shelving
filters at 3.5 kHz and 60 Hz, adjustable from +15 dB to -15
dB of gain and a Mid Frequency control centred at 700 Hz.

Channel Fader and Pan

The channel level is controlled by the 100 mm stereo fader,
with a Balance control directly above. This adjusts the balance between the left and right input signals to the
main mix bus.
The Mute/Bus B switch mutes the channel feed to the Main
Mix Bus, whilst also sending the channel signal post-fader to
the additional stereo Mix Bus B.
The PFL (Pre Fade Listen) switch sends the channel signal
to the PFL bus and interrupts the monitoring to switch to this
bus without affecting the signal output to the Main Mix Bus.
The eight LED Stereo Channel Meter is fed before the fader,
but after the channel processing.

USB Send

By default there is a A/D converter connected to the the USB
Send Pre Fader output of each SuperAnalogue channel strip, for the stereo channel, these are conneced in odd/
even pairs, e.g. Send 5/6. The sends can be switched in pairs to Post Fader using the USB OUT POST FADER
switch.
BiG SiX User Guide
BALANCE
FROM ST
CHANNEL L
FROM ST
CHANNEL R
Console Overview
USB
POST
FADER
USB
SEND
5,7,9,11
TO
MIX/BUS B L
TO
MIX/BUS B R
11
