Intruder alarm system
Extended settings for keypads:
All partitions are usually assigned to the keypad by default. All events related to all partitions are shown on
M01 Keypad
keypad's LCD. If there is a need to monitor only one of all enabled partitions, then assign this particular partition
5
Assigned partitions
[ENT]
to the keypad. Use [ENT] to enter the menu, then press [#] to assign partition to the keypad. Save changes by
pressing the [ENT] key.
The keypads have additional keys dedicated for emergency conditions. These can be activated by pressing
M01 Keypad
both keys at the same time. However, in some places like a corridor it is recommended to disable emergency
Fire Alarm
Yes
7
keys to prevent false alarms.
8
Medical Alarm
No
9
Panic Alarm
No
Panic silent
No
Extended settings for PROX8 module:
All partitions by default are usually assigned to the proximity reader PROX8. All events related to all partitions
M06 PROX8
are shown on proximity reader's LED. If there is a need to monitor only one of all enabled partitions, then assign
5
Assigned partitions
[ENT]
this particular partition to the proximity reader. Use [ENT] to enter the menu, then press the [#] key to assign a
partition to the proximity reader. Save changes by pressing the [ENT] key.
This setting is related to entry/exit counting when the module is installed indoors and outdoors. If proximity
M06 PROX8
reader is installed outdoors, then the Entry/Exit delay is excluded.
6
Installation
Outdoor
The preferred arming mode will appear as a first option. With preferred arming mode selected correctly the
M06 PROX8
user will spend less time on arming. Arming mode is indicated by a color of PROX8 LED:
Preferred mode
Away
7
Second mode
Max Away
8
9
Third mode
Stay
Fourth mode
Night
10
Note: if there is a need for only 1 arming mode, program all options with the same arming mode.
The proximity reader has a buzzer for audible notifications which can be enabled or disabled.
M06 PROX8
11
Sound
Yes
The proximity reader can be programmed to indicate present status of the system on LED for a short period of
M06 PROX8
time when the tag is near a sensitive area of the module or it can indicate the status continuously.
12
Hide LED indication
Yes
The proximity reader has 3 options on what it must do when the unknown proximity tag is detected:
M06 PROX8
Unknown tag
No actio
13
be triggered after 3 attempts to control the system with an unknown tag.
The meaning of LED indication depends on module operation mode:
M06 PROX8
14
Operation mode
Small syst
enabled.
If the system has 3 partitions enabled, then the 3rd LED will indicate the arming mode of the 3rd partition.
Troubles will be indicated on the 4th LED. Color meaning:
information (arming mode, alarm, alarm memory, troubles, and zone bypass).
Extended settings for EXT116S or EXT116VM modules:
Used to secure communication between the detector and a receiver. When this feature is turned on, the detector
M06 EXT116S
will consume more battery power and battery life will decrease.
MC and IR Anti-Sabotage
No
5
6
Roller Anti-Sabotage
No

ZONE PROGRAMMING

Zones, in the context of an alarm system, are individual detectors. If the alarm gets triggered, the system records the zones that were
tripped, allowing the user to know the exact point of action. Zones also help the monitoring station to know whether they should call the
police or fire department upon an alarm. Each zone must be assigned to a partition.
Service Mode }System Setup }Zones
It is recommended to give an appropriate name to the zone. This name will be used by the system for SMS
Z01 Door
Name
Door
sending or for display on keypad's LCD screen and etc.
1

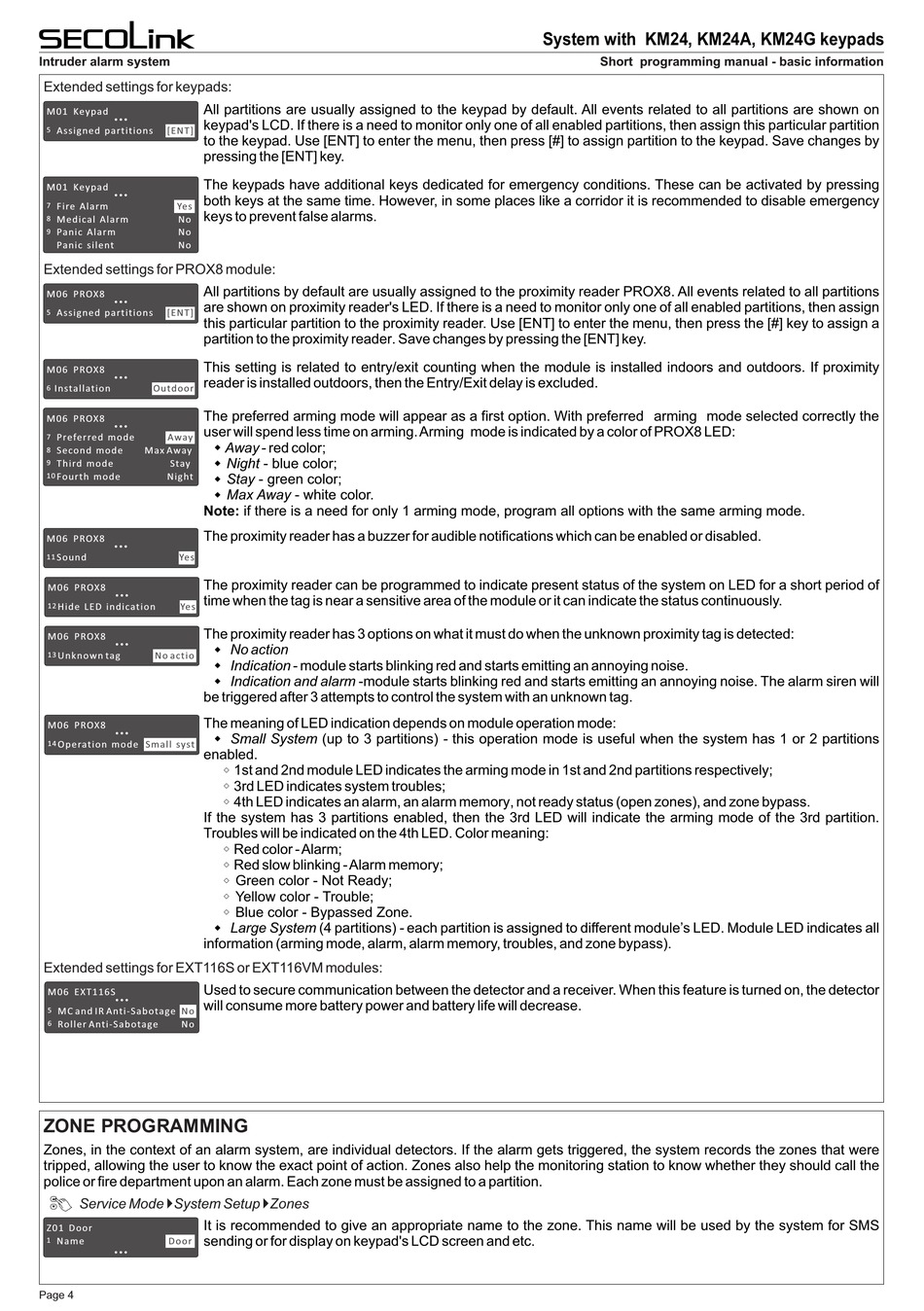

Page 4
Away - red color;
Night - blue color;
Stay - green color;
Max Away - white color.
No action
Indication - module starts blinking red and starts emitting an annoying noise.
Indication and alarm -module starts blinking red and starts emitting an annoying noise. The alarm siren will
Small System (up to 3 partitions) - this operation mode is useful when the system has 1 or 2 partitions
1st and 2nd module LED indicates the arming mode in 1st and 2nd partitions respectively;
3rd LED indicates system troubles;
4th LED indicates an alarm, an alarm memory, not ready status (open zones), and zone bypass.
Red color - Alarm;
Red slow blinking - Alarm memory;
Green color - Not Ready;
Yellow color - Trouble;
Blue color - Bypassed Zone.
Large System (4 partitions) - each partition is assigned to different module's LED. Module LED indicates all
System with KM24, KM24A, KM24G keypads
Short programming manual - basic information
