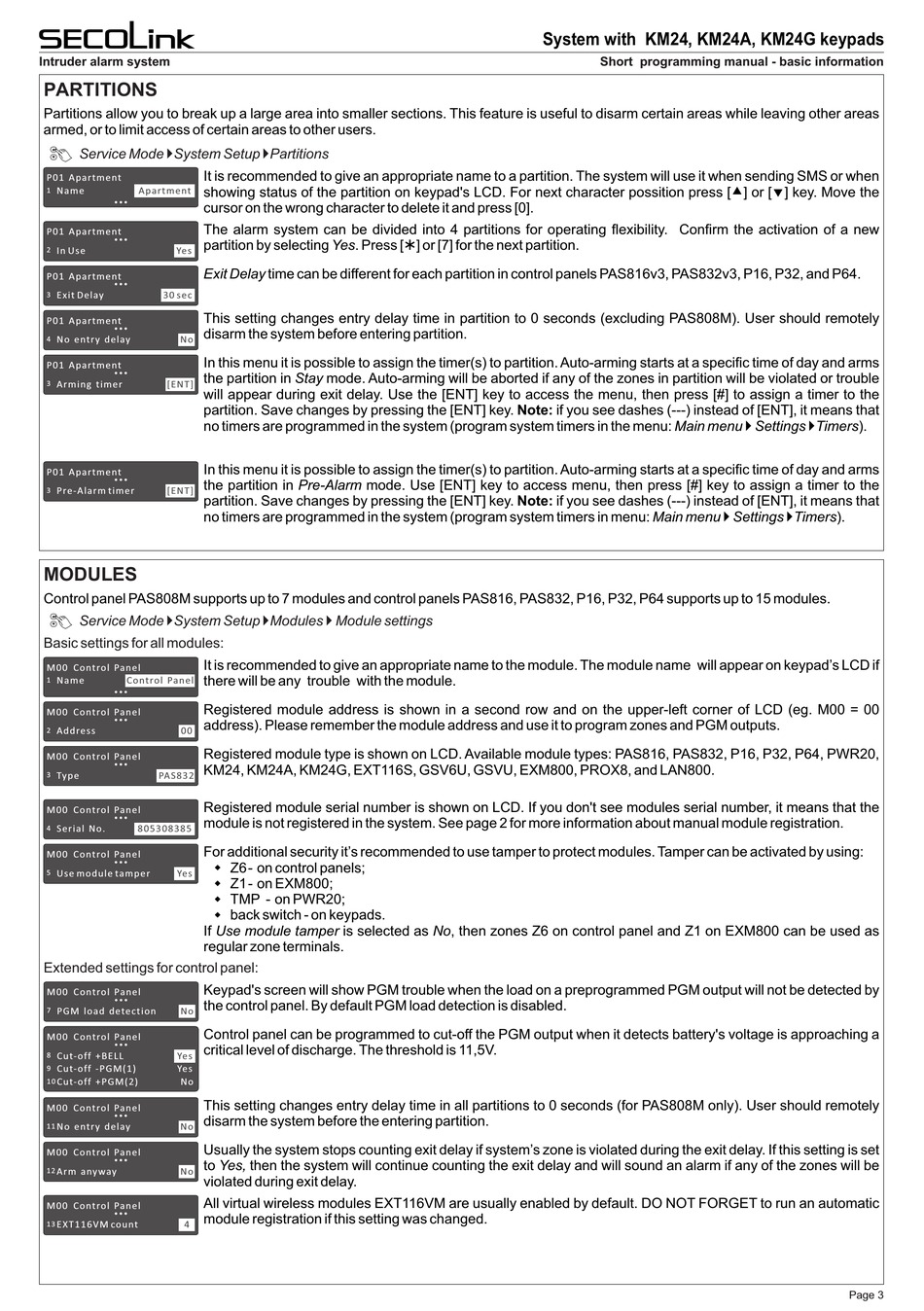

SECOLink BK4 Manual page 3

Intruder alarm system
PARTITIONS
Partitions allow you to break up a large area into smaller sections. This feature is useful to disarm certain areas while leaving other areas
armed, or to limit access of certain areas to other users.
Service Mode }System Setup }Partitions
It is recommended to give an appropriate name to a partition. The system will use it when sending SMS or when
P01 Apartment
Name Apartment
1 showing status of the partition on keypad's LCD. For next character possition press [] or [‚] key. Move the
cursor on the wrong character to delete it and press [0].
The alarm system can be divided into 4 partitions for operating flexibility. Confirm the activation of a new
P01 Apartment
partition by selecting Yes. Press [Ü] or [7] for the next partition.
2 In Use Yes
Exit Delay time can be different for each partition in control panels PAS816v3, PAS832v3, P16, P32, and P64.
P01 Apartment
3 Exit Delay 30 sec
This setting changes entry delay time in partition to 0 seconds (excluding PAS808M). User should remotely
P01 Apartment
disarm the system before entering partition.
No entry delay No
4
In this menu it is possible to assign the timer(s) to partition. Auto-arming starts at a specific time of day and arms
P01 Apartment
the partition in Stay mode. Auto-arming will be aborted if any of the zones in partition will be violated or trouble
Arming timer [ENT]
3
will appear during exit delay. Use the [ENT] key to access the menu, then press [#] to assign a timer to the
partition. Save changes by pressing the [ENT] key. Note: if you see dashes (---) instead of [ENT], it means that
no timers are programmed in the system (program system timers in the menu: Main menu } Settings }Timers).
In this menu it is possible to assign the timer(s) to partition. Auto-arming starts at a specific time of day and arms
P01 Apartment
the partition in Pre-Alarm mode. Use [ENT] key to access menu, then press [#] key to assign a timer to the
3 Pre-Alarm timer [ENT]
partition. Save changes by pressing the [ENT] key. Note: if you see dashes (---) instead of [ENT], it means that
no timers are programmed in the system (program system timers in menu: Main menu } Settings }Timers).
MODULES
Control panel PAS808M supports up to 7 modules and control panels PAS816, PAS832, P16, P32, P64 supports up to 15 modules.
Service Mode }System Setup }Modules } Module settings
Basic settings for all modules:
It is recommended to give an appropriate name to the module. The module name will appear on keypad's LCD if
M00 Control Panel
there will be any trouble with the module.
Name Control Panel
1
Registered module address is shown in a second row and on the upper-left corner of LCD (eg. M00 = 00
M00 Control Panel
address). Please remember the module address and use it to program zones and PGM outputs.
2 Address 00
Registered module type is shown on LCD. Available module types: PAS816, PAS832, P16, P32, P64, PWR20,
M00 Control Panel
KM24, KM24A, KM24G, EXT116S, GSV6U, GSVU, EXM800, PROX8, and LAN800.
3 Type PAS832
Registered module serial number is shown on LCD. If you don't see modules serial number, it means that the
M00 Control Panel
module is not registered in the system. See page 2 for more information about manual module registration.
4 Serial No. 805308385
For additional security it's recommended to use tamper to protect modules. Tamper can be activated by using:
M00 Control Panel
Use module tamper Yes
5
If Use module tamper is selected as No, then zones Z6 on control panel and Z1 on EXM800 can be used as
regular zone terminals.
Extended settings for control panel:
Keypad's screen will show PGM trouble when the load on a preprogrammed PGM output will not be detected by
M00 Control Panel
the control panel. By default PGM load detection is disabled.
PGM load detection No
7
Control panel can be programmed to cut-off the PGM output when it detects battery's voltage is approaching a
M00 Control Panel
critical level of discharge. The threshold is 11,5V.
Cut-off +BELL Yes
8
Cut-off -PGM(1) Yes
9
10 Cut-off +PGM(2) No
This setting changes entry delay time in all partitions to 0 seconds (for PAS808M only). User should remotely
M00 Control Panel
disarm the system before the entering partition.
No entry delay No
11
Usually the system stops counting exit delay if system's zone is violated during the exit delay. If this setting is set
M00 Control Panel
to Yes, then the system will continue counting the exit delay and will sound an alarm if any of the zones will be
12 Arm anyway No
violated during exit delay.
All virtual wireless modules EXT116VM are usually enabled by default. DO NOT FORGET to run an automatic
M00 Control Panel
module registration if this setting was changed.
13 EXT116VM count 4
Z6 - on control panels;
Z1 - on EXM800;
TMP - on PWR20;
back switch - on keypads.
System with KM24, KM24A, KM24G keypads
