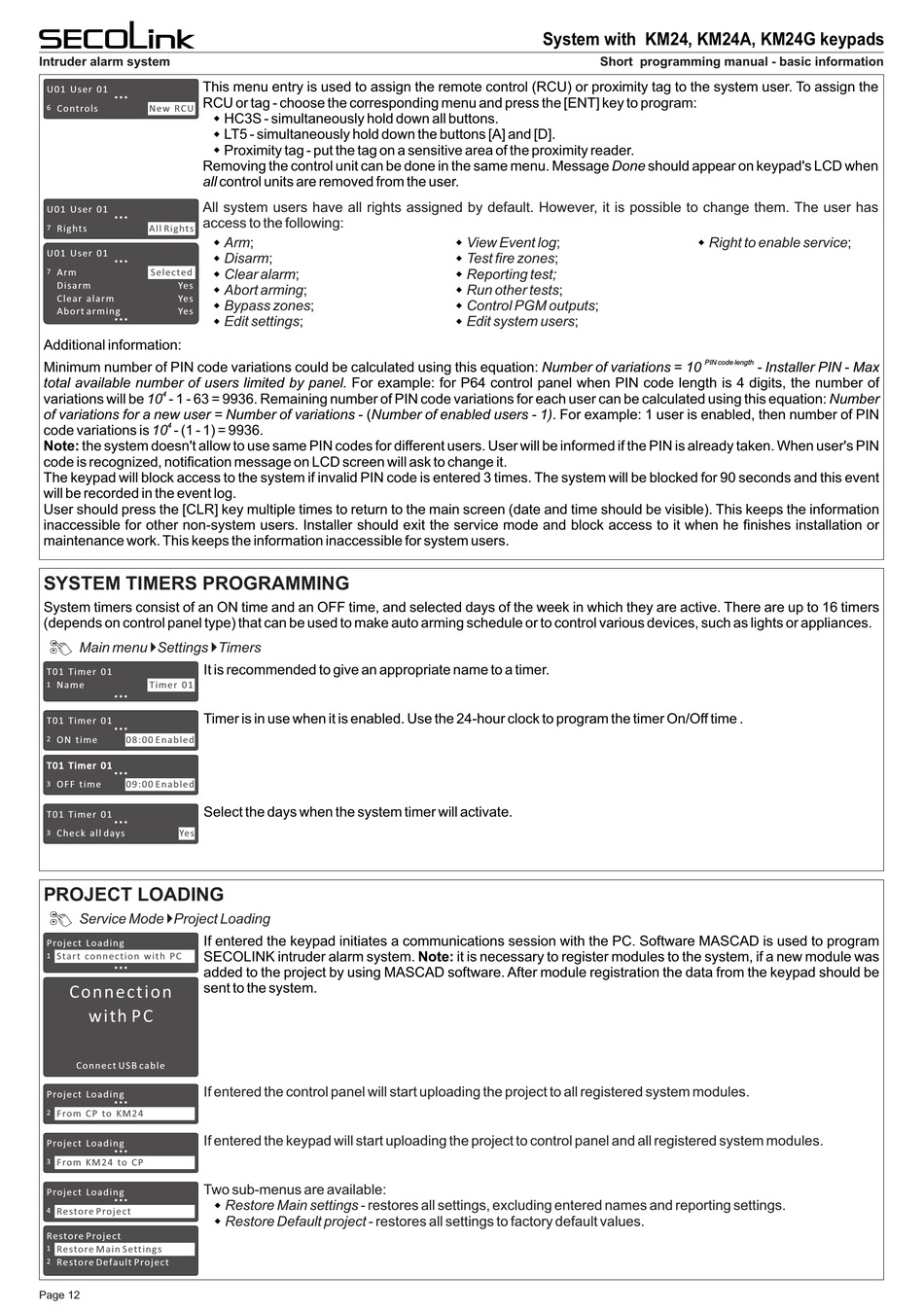

SECOLink BK4 Manual page 12

Intruder alarm system
This menu entry is used to assign the remote control (RCU) or proximity tag to the system user. To assign the
U01 User 01
RCU or tag - choose the corresponding menu and press the [ENT] key to program:
6 Controls New RCU
Removing the control unit can be done in the same menu. Message Done should appear on keypad's LCD when
all control units are removed from the user.
All system users have all rights assigned by default. However, it is possible to change them. The user has
U01 User 01
access to the following:
Rights All Rights
7
U01 User 01
Arm Selected
7
Disarm Yes
Clear alarm Yes
Abort arming Yes
Additional information:
Minimum number of PIN code variations could be calculated using this equation: Number of variations = 10
total available number of users limited by panel. For example: for P64 control panel when PIN code length is 4 digits, the number of
4
variations will be 10 - 1 - 63 = 9936. Remaining number of PIN code variations for each user can be calculated using this equation: Number
of variations for a new user = Number of variations - (Number of enabled users - 1). For example: 1 user is enabled, then number of PIN
4
code variations is 10 - (1 - 1) = 9936.
Note: the system doesn't allow to use same PIN codes for different users. User will be informed if the PIN is already taken. When user's PIN
code is recognized, notification message on LCD screen will ask to change it.
The keypad will block access to the system if invalid PIN code is entered 3 times. The system will be blocked for 90 seconds and this event
will be recorded in the event log.
User should press the [CLR] key multiple times to return to the main screen (date and time should be visible). This keeps the information
inaccessible for other non-system users. Installer should exit the service mode and block access to it when he finishes installation or
maintenance work. This keeps the information inaccessible for system users.
SYSTEM TIMERS PROGRAMMING
System timers consist of an ON time and an OFF time, and selected days of the week in which they are active. There are up to 16 timers
(depends on control panel type) that can be used to make auto arming schedule or to control various devices, such as lights or appliances.
Main menu }Settings }Timers
It is recommended to give an appropriate name to a timer.
T01 Timer 01
1 Name Timer 01
Timer is in use when it is enabled. Use the 24-hour clock to program the timer On/Off time .
T01 Timer 01
ON time 08:00 Enabled
2
T01 Timer 01
3 OFF time 09:00 Enabled
Select the days when the system timer will activate.
T01 Timer 01
Check all days Yes
3
PROJECT LOADING
Service Mode }Project Loading
If entered the keypad initiates a communications session with the PC. Software MASCAD is used to program
Project Loading
SECOLINK intruder alarm system. Note: it is necessary to register modules to the system, if a new module was
1 Start connection with PC
added to the project by using MASCAD software. After module registration the data from the keypad should be
sent to the system.
Connection
with PC
Connect USB cable
If entered the control panel will start uploading the project to all registered system modules.
Project Loading
From CP to KM24
2
If entered the keypad will start uploading the project to control panel and all registered system modules.
Project Loading
3 From KM24 to CP
Two sub-menus are available:
Project Loading
4 Restore Project
Restore Project
1 Restore Main Settings
Restore Default Project
2
Page 12
HC3S - simultaneously hold down all buttons.
LT5 - simultaneously hold down the buttons [A] and [D].
Proximity tag - put the tag on a sensitive area of the proximity reader.
Arm;
Disarm;
Clear alarm;
Abort arming;
Bypass zones;
Edit settings;
Restore Main settings - restores all settings, excluding entered names and reporting settings.
Restore Default project - restores all settings to factory default values.
System with KM24, KM24A, KM24G keypads
Short programming manual - basic information
View Event log;
Test fire zones;
Reporting test;
Run other tests;
Control PGM outputs;
Edit system users;
Right to enable service;
PIN code length
- Installer PIN - Max
