Home Styles 88 5411 80 Assembly Instructions

88 5411 80

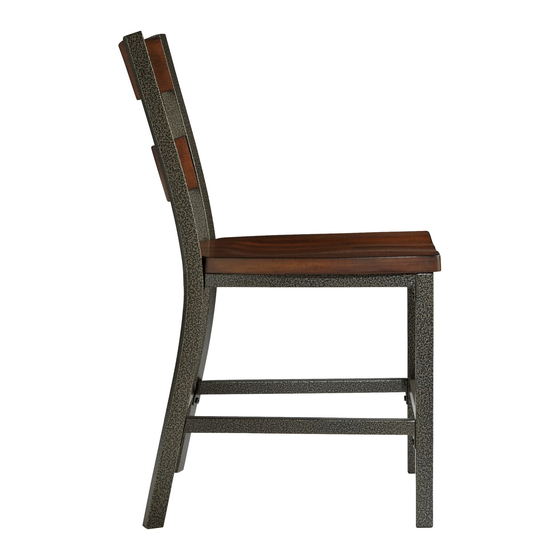

Dining Chair
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
A.
Seat
1 Pc.
D.
Stretcher
2 Pcs.
Hardware List
Small Hex Wrench Hex Wrench
1 Pc. 1 Pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Leg
1 Pc.
Head Cap Bolt
8 Pcs. (+1 extra)
C.
Leg
1 Pc.
E.
Back Frame
1 Pc.
Spring Washer Flat Washer
8 Pcs. (+1 extra) 8 Pcs. (+1 extra)
Wood Screw
4 Pcs. (+1 extra)
