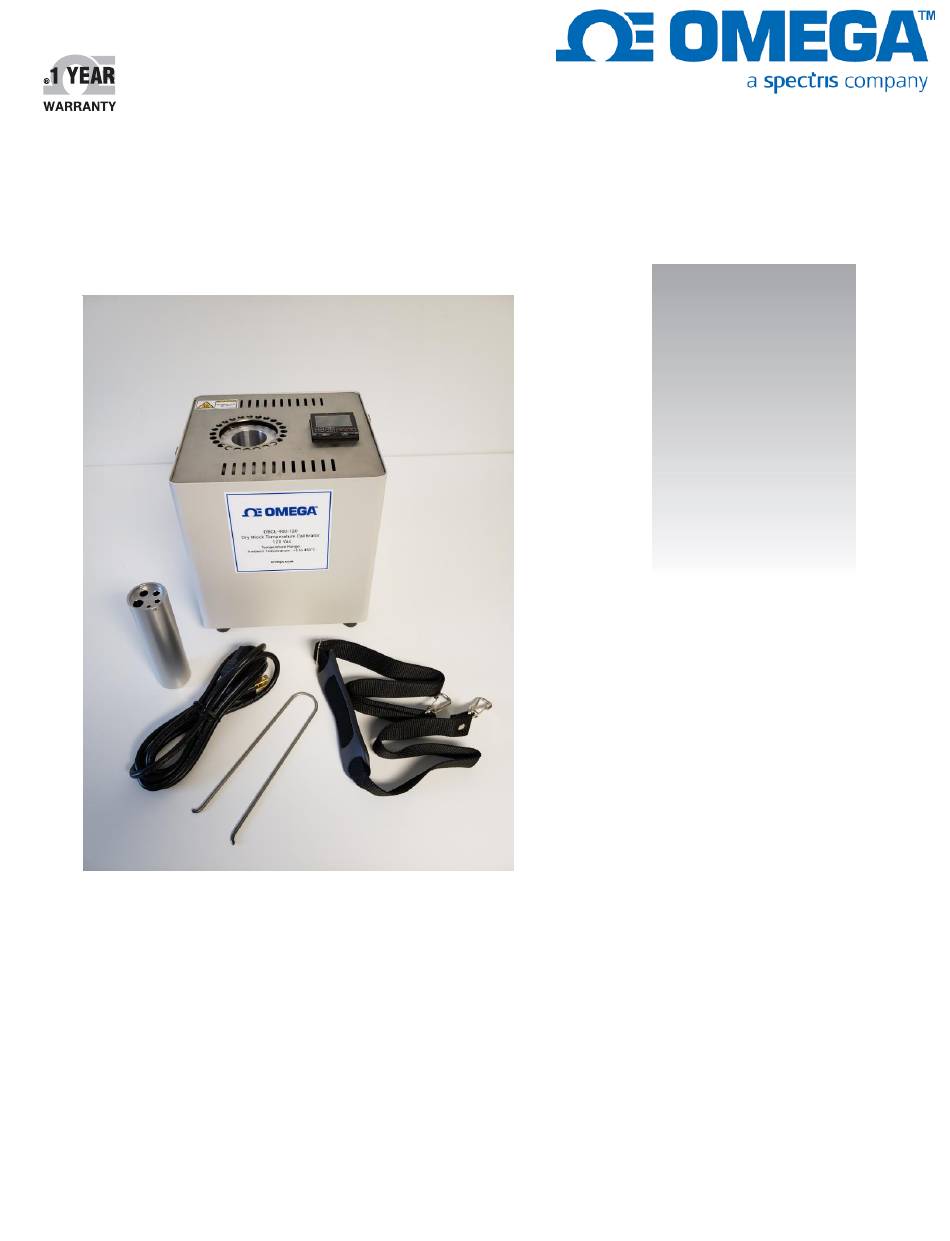

- Page 1 User’sGuide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omega.com Above items are included with the DBCL400 Dry Block temperature calibrator. Not shown is the calibration certificate and operator manual Model DBCL400 Dry Block Temperature Calibrator...
-
Page 2: Specification
P a g e DBCL400 Dry Block Temperature Calibrator Introduction The DBCL400 calibrator provides a safe, dry, constant temperature source for checking and calibrating a wide range of temperature sensors, systems, indicators and thermometers. It is fast and economical and can be used either on a bench top or as a portable field unit. -
Page 3: Installation
P a g e Warning Warning: HIGH TEMPERATURES ARE DANGEROUS HIGH TEMPERATURES ARE DANGEROUS: They can cause serious burns to operators and ignite combustible material. Omega Engineering has taken great care in the design of these units to protect operators from hazards, but operators should pay attention to the following points: •... -
Page 4: Operation
P a g e OPERATION Preparation The heater design, temperature sensor and control circuit give good temperature control and uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat transfer. Contact us about an insert that more closely fits your probe or device being calibrated. Plug the power cable into the socket in the back of the unit. -
Page 5: Operator Maintenance
P a g e C to F temperature scale conversion To change the temperature scale press to display parameter P0. Set this value to 11.0 for °C and 22.0 for °F operation. Next press until parameter TPUN is displayed and set to C or F. Then change TP-H to 450(°C) or 850(°F). -
Page 6: Spare Parts
P a g e Accessories The following parts may be obtained directly from Omega Engineering Part Number Description 4163 UK 240 volt power cable with 13amp UK plug (5 amp fuse) 4164 Euro style 240 volt power cable with R/A Schuko plug 4150 US style 120 volt power cable 4168... - Page 7 P a g e EU Declaration of Conformity (No. DC18-DBCL) In accordance with European Parliament and Council Decision No 768/2008/EC Annex III 1. Product model / product: Product Dry Block Temperature Calibrator Model/type DBCL400 & DBCL130 Batch/serial no. S/N: 619-2993 & onward 2.Manufacturer Name Omega Engineering...
- Page 8 omega.com info@omega.com Servicing North America: U.S.A. Omega Engineering, Inc. Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
