Summary of Contents for ESX Vision Naviceiver VN720 HY-iX35

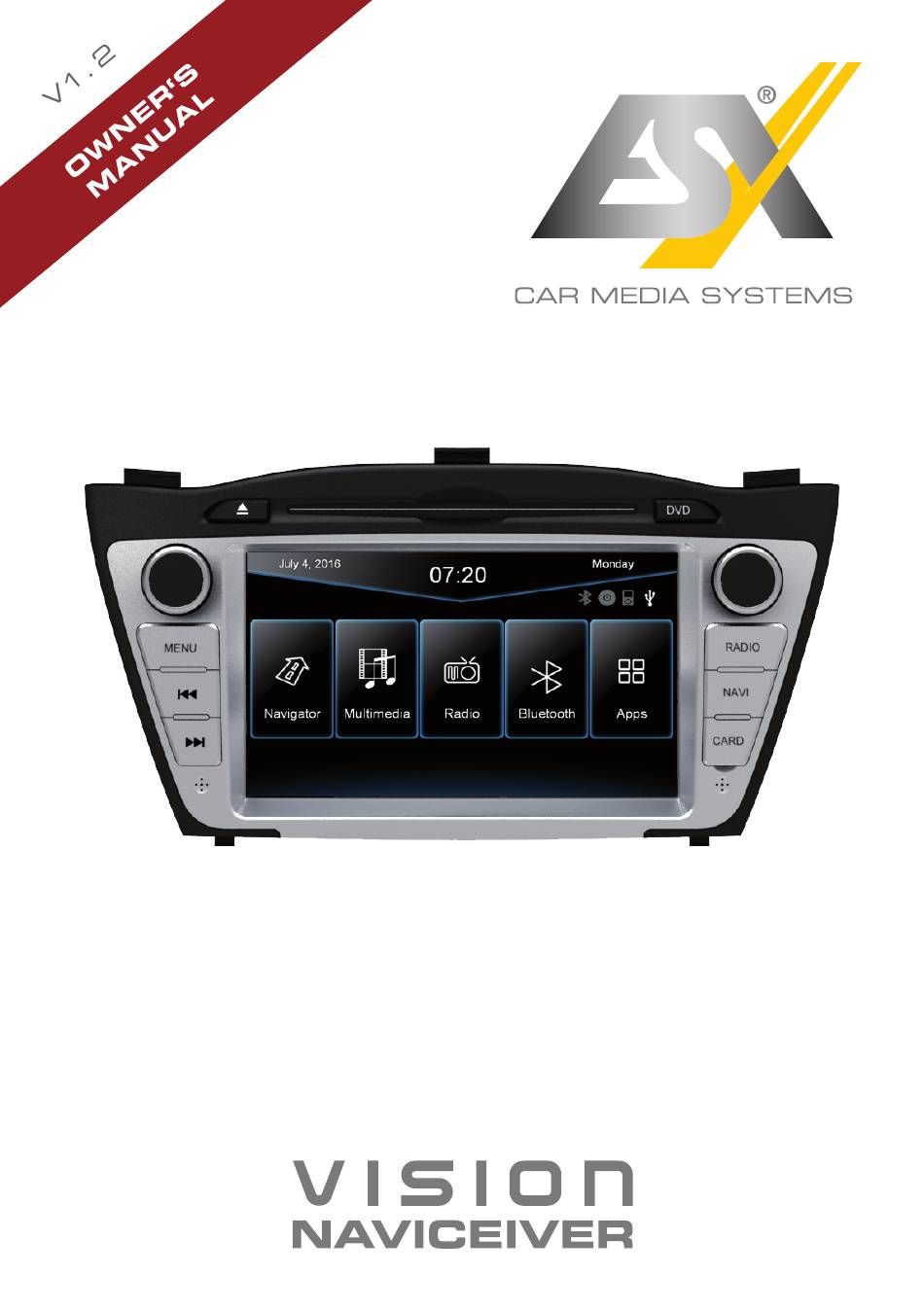

  • Page 1 VN720 HY-iX35...
  • Page 2 INTRODUCTION Always follow the instructions in this manual before using the device. Please keep this manual easily accessible in the vehicle for future reference. Features • iGo Primo, 3D Navisoftware with TMC on 8GB SD card, 46 countries including Turkey with Points of Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and prompt languages Latest Map Guarantee (30 days) after activation via www.naviextras.com.

  • Page 3: Table Of Contents

    INDEX Safety Information ...........................4 Basic functions ............................6 Operating elements .................................6 Main menu ....................................7 Navigation ....................................8 Multimedia Player ..................................9 Radio .....................................11 Bluetooth™...................................15 Apps......................................17 – DVD (DVD/CD-Player) .................................18 – LinkPod ....................................19 – AV/TV ....................................20 – A2DP ....................................21 – Audio ....................................22 – Files ....................................25 –...

  • Page 4: Safety Information

    SAFETY INFORMATION • The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks with a different size or any other object into the disk slot. Be sure to load only one disk at the same time. •...
  • Page 5 SAFETY INFORMATION • In general, the assembly and installation of the device must be performed by a trained and technically skilled specialists, as the installation and connection of the device requires complex knowledge. • This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative ground.

  • Page 6: Basic Functions

    BASIC FUNCTIONS OPERATING ELEMENTS Eject the inserted CD/DVD. Opens the main menu (short push) Opens Voice Control (push and hold) Slot for CD/DVD disks (Ø 12 cm). Open the radio mode (short push) or open the Start the DVD/CD player. DAB+ radio (push and hold), if a DAB tuner is installed Mute (short push) or the device switches to...

  • Page 7: Main Menu

    BASIC FUNCTIONS MAIN MENU After power on, the device starts with the main menu. By pressing the „MENU“ button on the device, you can always get to the main menu too. Depending on the selected design theme (Skin), the current date and time will be displayed here. The four function icons are (depending on the skin) is highlighted in white and thus activated when the corresponding function is in use, such as „Bluetooth connection“, „CD / DVD in the drive“, „iPod connection“...

  • Page 8: Navigation

    „Navigation“ in the main or push the „NAVI“ buttons on the device. Note: If you have accidentally changed the path and want to use the original ESX iGO software, the path must be always „\Storage Card\NaviOne\Navione.exe“. The unit receives GPS satellite signals automatically. In poor weather conditions or for example while passing a tunnel, these signals may be disturbed.

  • Page 9: Multimedia Player

    GRUNDLEGENDE FUNKTIONEN MULTIMEDIA PLAYER By tapping „Multimedia“ in the main menu , the source selection USB or SD for audio and video play- back opens. Refer to page 18 for CD Audio playback. 10. Playback controls for audio player Tap here to enter the main menu without inter- rupting the playback of the current title.
  • Page 10 BASIC FUNCTIONS FOLDER PLAYBACK Tap on the folder icon in the multimedia menu on the bottom left (see page 9, #9) and the currently playing folder appears. Now you can scroll through the list and select another song by taping directly or with „go back“...

  • Page 11: Radio

    BASIC FUNCTIONS RADIO Open the radio application by tapping „Radio“ in the main menu or by pressing the „RADIO“ button on the device. 11. With the arrows you can quick-start the search Tap here to enter the main menu without interrupting the radio playback.
  • Page 12 BASIC FUNCTIONS Settings and station presets Tap on the „gear“ icon to open the settings and then: „Rename Station“ to rename the current radio station. „Delete Station“ to delete the current radio station from the presets. „Delete All Stations“ to delete all radio stations from the pre- sets.
  • Page 13 BASIC FUNCTIONS RDS functions This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The fol- lowing RDS functions are only available if they are supported by the selected radio station. AF (Alternative Frequency) The AF function enables the automatic switching of the recei- ving frequency when leaving the reception range of a trans- mitter.

  • Page 14: Bluetooth

    BASIC FUNCTIONS BLUETOOTH™ Open the Bluetooth™ application by tapping „Bluetooth“ in the main menu. PAIRING At first pair the devices, if necessary refer to the manual of your mobile phone. Open the „Settings“ menu on your mobile phone and open the Bluetooth settings. Turn on Bluetooth and then search for compatible devices.
  • Page 15 BASIC FUNCTIONS CONTACTS AND CALL HISTORY Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts and call history starts automatically. Tap on „Contacts“. Tap on a name to start a phone call. Tap on the white search field to search for Tap on „History“.
  • Page 16 BASIC FUNCTIONS Tap on „Dialled“ to display the already tran- To synchronize your contacs and call history sacted phone calls. tap on „Sync. Now“. KEYPAD Tap on „Keypad“ to enter phone numbers manually. Then enter the desired number and then tap the green phone icon to start dialing.

  • Page 17: Apps

    BASIC FUNCTIONS APPS Open the application menu by tapping on „Apps“ in the main menu. The device offers a variety of applications that can be used as described below. Some of these func- tions require the appropriate accessories. Tap here to switch off the display. To switch on Tap here to open the VirtualDisk menu.

  • Page 18: Dvd (Dvd/Cd-Player)

    BASIC FUNCTIONS (DVD/CD-Player) The DVD player supports the following formats: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3. Open the DVD application by tapping „DVD“ in the main menu. Tap during DVD playback on any spot on the display to open the DVD menu. When you playback a CD or MP3-CD, the user interface is different.

  • Page 19: Linkpod

    BASIC FUNCTIONS LinkPod (optional) Connect your iPod™ or iPhone™ via USB with the ESX device. When the iPod™ icon is highlighted in white (top next to the time display), the connection is active. The battery charging function is carried out when the unit is turned on.

  • Page 20: Av/Tv

    Please refer for operation, installation and functionality to the instruction manual of the connected device. Note: AV is not available when the external DAB receiver „VNA- TM-DAB“ from ESX is used. The connections are as follows: = Cable AV 1 (3 x RCA)

  • Page 21: A2Dp

    Bluetooth, which works with the streaming A2DP standard, there is the possibility, to playback audio stream over the ESX device. Connect this device as described on page 14and select a music source A2DP under Apps. If the message „A2DP is not connected“ appears, your BT device it is not connected or the audio playback is not (yet) enabled.

  • Page 22: Audio

    BASIC FUNCTIONS Audio You can open the audio settings in the main menu by tapping on „Apps“ and „Audio“ or by pressing the right rotary control (except while DVD/TV playback) on the device. Tap on one of the control bars to change the sound adjust- ment.
  • Page 23 BASIC FUNCTIONS Tap on one of the control bars to change the equalizer preset. Tap on „Advance“ to open the advanced audio settings. On the left under „Channel Pre-Volume“ you can set the indi- vidual volume for each application. Just tap on the arrow icons to change the value upward or downward.
  • Page 24 BASIC FUNCTIONS Scroll the right field down to see all settings under „MISC“. Under the section „Loudness“ you can set the bass/treble boost from 0 - 20dB regardless of the equalizer settings. Note: This can lead to high distortion for the speakers. Under „Subwoofer“...

  • Page 25: Files

    BASIC FUNCTIONS Files With the file manager, it is possible to manage and open com- puter specific file formats. The system supports the following file formats: Photo: BMP, JPEG, GIF, PNG Video: MPEG (*.mpg, *.mpeg), AVI, RM (*.rm. *.rmvb), WMV, MP4 (*.mp4, *.mov), MKV (*.mkv) Audio: MP3, WMA, WAV, FLAC, AAC, Monkey Audio (*.ape) Tap once to highlight a particular file.

  • Page 26: Virtual Disk

    BASIC FUNCTIONS Once you have open an image file, you can start a slideshow of all the pictures stored in the directory. Tap on the image and the playback options are displayed. Tap on „Info“ to view the memory information of each storage locations.
  • Page 27 BASIC FUNCTIONS Note: When using multiple USB sticks, the stick with the desired RIPs must have been always connected first! If you can not access the RIPs, remove all USB sticks and connect the appropriate stick via USB. If you connect a USB Stick with contained CD RIPs while is Virtual Disk opened, they will not appear immediately.

  • Page 28: E-Link

    USB debug mode. Please note that the procedure for any Android device may vary. Connect your Android device via USB to the ESX Naviceiver and tap on „Detect Phone“. The first time you connect to an Android device, the device will automatically install the „Drive Mode“...

  • Page 29: Quick Charge

    BASIC FUNCTIONS Under „Choose Application“ you can select the desired appli- cation. By tapping on the transparent „>“ arrow on the bottom left, a further window opens in the lower third of the screen. There you find more options such as „Back“, „Home“, „Set- tings“...

  • Page 30: Options

    Please note that the USB data function is deactivated when the USB connection is used for the quick charging. The ESX device provides in „Quick Charge“ function a charging current of 1A - 2.1A (depending on the connected equipment). Note: Please note that the „Quick Charge“ function only works with USB port 1.
  • Page 31 BASIC FUNCTIONS Date/Time Tap on „Date/Time“. Select the desired time zone. Set the current date. Set the current time. Tap on the checkbox right to set on daylight Tap on „Apply“. saving time. Tap on the checkbox left to set the time for- mat to 12-hours (AM / PM).
  • Page 32 BASIC FUNCTIONS Display Tap on „Display“. Set the desired brightness level for the dis- play (only with vehicle headlights on). The checkbox „CCD Camera“, enables the With the checkbox „Pause Media Whilst Re- optional rear view camera function. As soon verse“, the media playback will be paused as reverse gear is engaged, the transmissi- when the reverse gear is engaged.
  • Page 33 BASIC FUNCTIONS Key illumination of the device (only in night driving mode) Tap on „Display“. Set the key Illumination brightness by mo- ving the status bar to a desired position. Note: This is only possible when the light of the vehicle is switched on. Voice (voice control) Tap on „Voice“.
  • Page 34 BASIC FUNCTIONS Under „Voice Volume“ you can adjust the vo- If „Play Bluetooth Status Voice“ is activated, lume of the speech output (0-10). an audible confirmation of the Bluetooth™ connection is issued whenever you connect The unit will inform you after the activation or disconnect a paired Bluetooth™...
  • Page 35 BASIC FUNCTIONS Operating System Under „System“ you find information about the system. Shell: Version number of the user interface Version number of the operating system MCU: Version number of the CAN-BUS protocol Check under www.esxnavi.de if an operating system update is available or ask your retail dealer.

  • Page 36: Custom Settings

    CUSTOM SETTINGS Menu assignment You have the possibility to arrange the main menu or apps menu to your liking. To change the position of a control panel, press and hold for 5 seconds the regarding panel in the main or apps menu until the dashed lines are visible.

  • Page 37: Wallpaper

    CUSTOM SETTINGS Wallpaper You have the possibility to customize the background image to your liking. First, copy the desired wallpaper file to the microSD card or on a USB stick. Tap on „Apps“. Tap on „Option“. Tap at „Wallpaper“ on „Browse“ Select a file by double click.

  • Page 38: Start Logo

    Copy the image file from your PC to the SD card. It must be located in no folder. Insert the SD card into the ESX device and restart the device by pressing the reset button. The device now automatically installs the desired boot logo.

  • Page 39: Additional Functions

    ADVANCED OPERATIONS INFRARED REMOTE The included remote control allows you to control some basic functions on the device. Point directly with the front of the remote control to the screen of the device.The distance should not be more than 3 meters. If you use the remote control for the first time, you have to remove the safety foil in the battery compartment on the back.

  • Page 40: Multifunction Steering Wheel

    ADVANCED OPERATIONS MULTI-FUNCTION STEERING WHEEL The device supports a control via the original multifunction steering wheel. TEACHING FUNCTION With the „wheel“ function, you can teach an analog steering wheel remote control. Please note that CANBUS controlled steering wheel remote controls are not compatible. Note: Usually nothing needs to be changed here, the default values must work with the original Hyundai steering wheel re- mote control.

  • Page 41: Limited Media Playback

    Note for other Audio/Video outputs: By using the cable G71-MNV0009 (see page Installation Guide) it is possible to playback audio and video sig- nals on other devices. The media source is always the same, which is played on ESX device.

  • Page 42: Troubleshooting

    TROUBLESHOOTING If the following troubleshooting tips do not solve the problem and the malfunction persists, please contact an authorized repair or installation service. Do not open the device or attempt to repair it by yourself. This may cause serious damages to the electronic components of the device and in your vehicle or may void the warranty of the device.
  • Page 43 TROUBLESHOOTING Problems Causes Remedy CD/DVD playback The DVD menu can not be opened. The disc does not support menus or is Insert another disc. plagiarism. The picture quality during playback is Brightness, contrast and color saturation Check the DVD player settings and correct insufficient.
  • Page 44 TROUBLESHOOTING Problems Causes Remedy Navigation The navigation application will not start. The software is not compatible with the Check the compatibility of software with device. Windows CE 6, or get yourself a compatible version. The software was not installed on the Check the settings under Apps - Options device properly.
  • Page 45 TROUBLESHOOTING Problems Causes Remedy Bluetooth/Phone No connection or pairing of the devices. Bluetooth function of the phone is not Enable Bluetooth function in the phone enabled. settings. Bluetooth enabled but the phone is not Enable „visible“ in the phone settings. visible.

  • Page 46: General Notes

    GENERAL INFORMATION Care and Maintenance This device is equipped with high precision and sensitive technique and should always be treated with caution. Please note the following tips to avoid endangering the warranty and extend the life of the appliance. • Children under 12 should not operate the device. Keep the device and all accessories away from small children.
  • Page 47 GENERAL INFORMATION Legal Notice • ESX or Audio Design GmbH are in no way affiliated with the vehicle manufacturer or any of its subsidiaries or affiliated companies connected to, or is acting on its behalf or with its authorization. • All registered product names, trade marks and brands are the property of their respective owners.
  • Page 48 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
